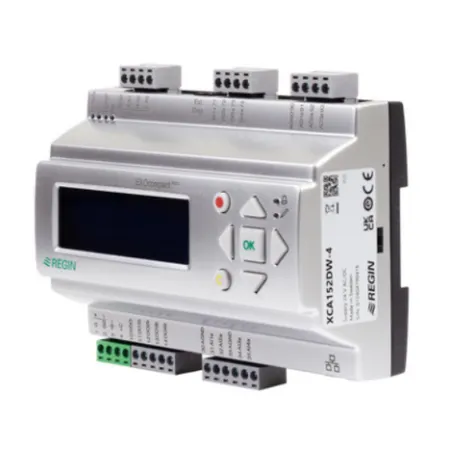

EXOcompactArdo freely programmable controllers

Small and compact controller with different types of communication, with or without built-in display. EXOcompact is equipped with various communication ports. Therefore it can either act as a stand-alone unit or be integrated with Arrigo BMS or other SCADA systems. User-friendly tools are available for flexible handling and easy access via the web server.

Technical data

Supply voltage ：24 V ~ (21…27 V ~ 50…60 Hz) / 20…36 V DC (not XCA20...)

Power consumption：4 VA

Protection class ：IP20

Ambient humidity ：Max. 95 % RH

Ambient temperature ：0…50 °C

Storage temperature ：-20…+70 °C

Operating system ：EXOrealC

Battery backup ：Memory and real-time clock, at least 5 years

Mounting ：DIN-rail

Number of modules ：8.5

Dimensions, external (WxHxD) ：149 x 121 x 58 / 149 x 136 x 58 (XCA20…) mm

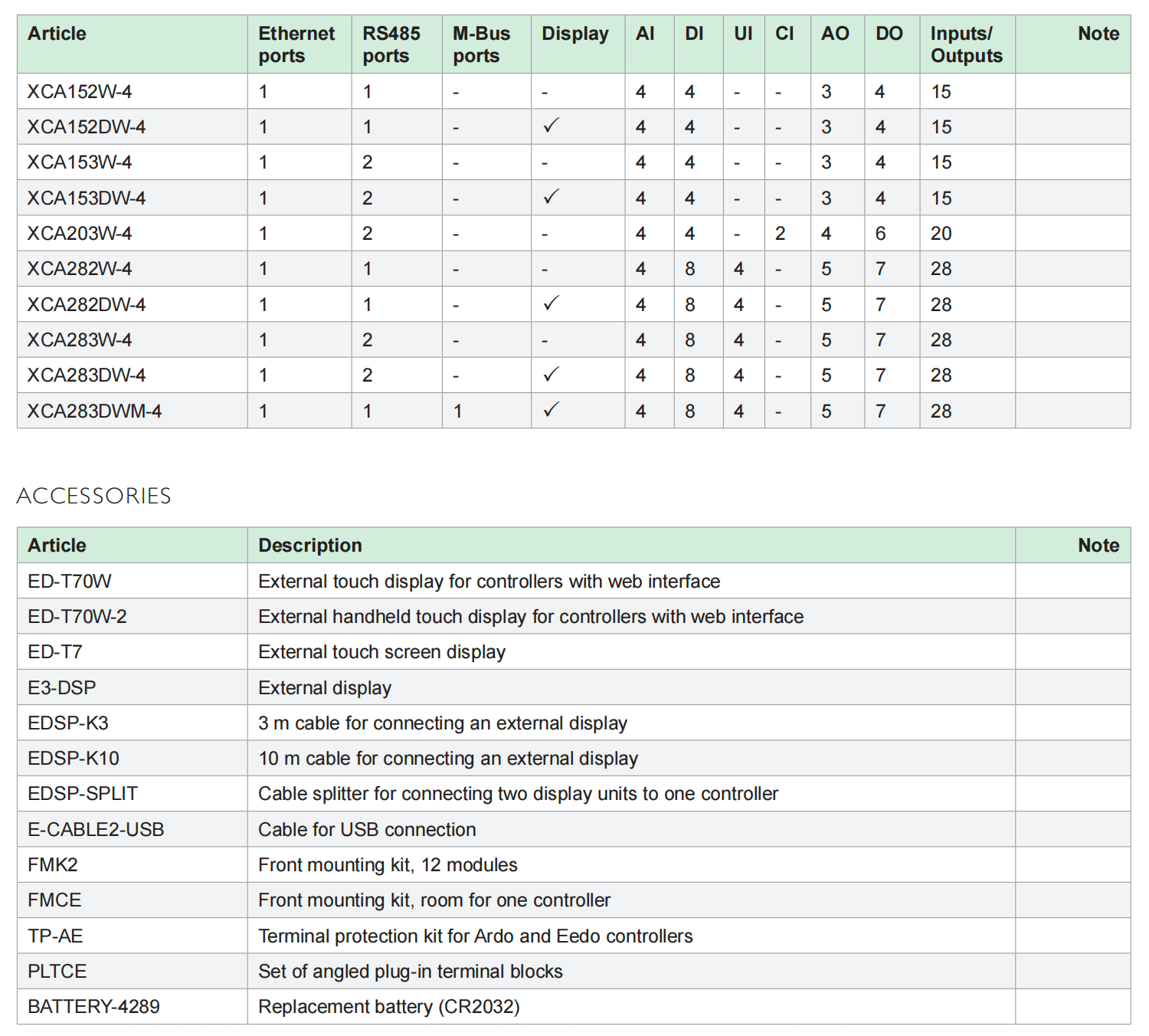

Communication ports

Ethernet ：EXOline-TCP/IP, Modbus-TCP, BACnet/IP

RS485 ：EXOline, EFX, Modbus-RTU, M-Bus (through X1176)

M-Bus ：M-Bus Mini-Master

I/O data

Analogue input a (AIa) ：PT1000, 0…10 V, 0(4)...20 mA (requires external 10 or 500 Ω shunt), 0...200mV, DIN Ni1000, LGNi1000, 12 bits A/D

Digital input a (DIa) ：24 V DC, floating contact, powered from +C (24 V DC)

Digital input b (DIb) ：Sourcing input type, GND is ref (only available for XCA20…)

Universal input a (UIa) ：AIa or DIa (see specifications above)

Condensation input a (CIa) ：Input dedicated for Regin’s condensation detector KG-A/1

Analogue output a (AOa) ：0…10 V DC, max. 5 mA, short-circuit protected

Digital output b (DOb) ：Mosfet output 24 V AC, max. 2 A, total max. 8 A

+C output ：24 V DC, 0.15 A, short circuit-protected (not available for XCA20…)

Material

Material, housing ：Polycarbonate, PC
