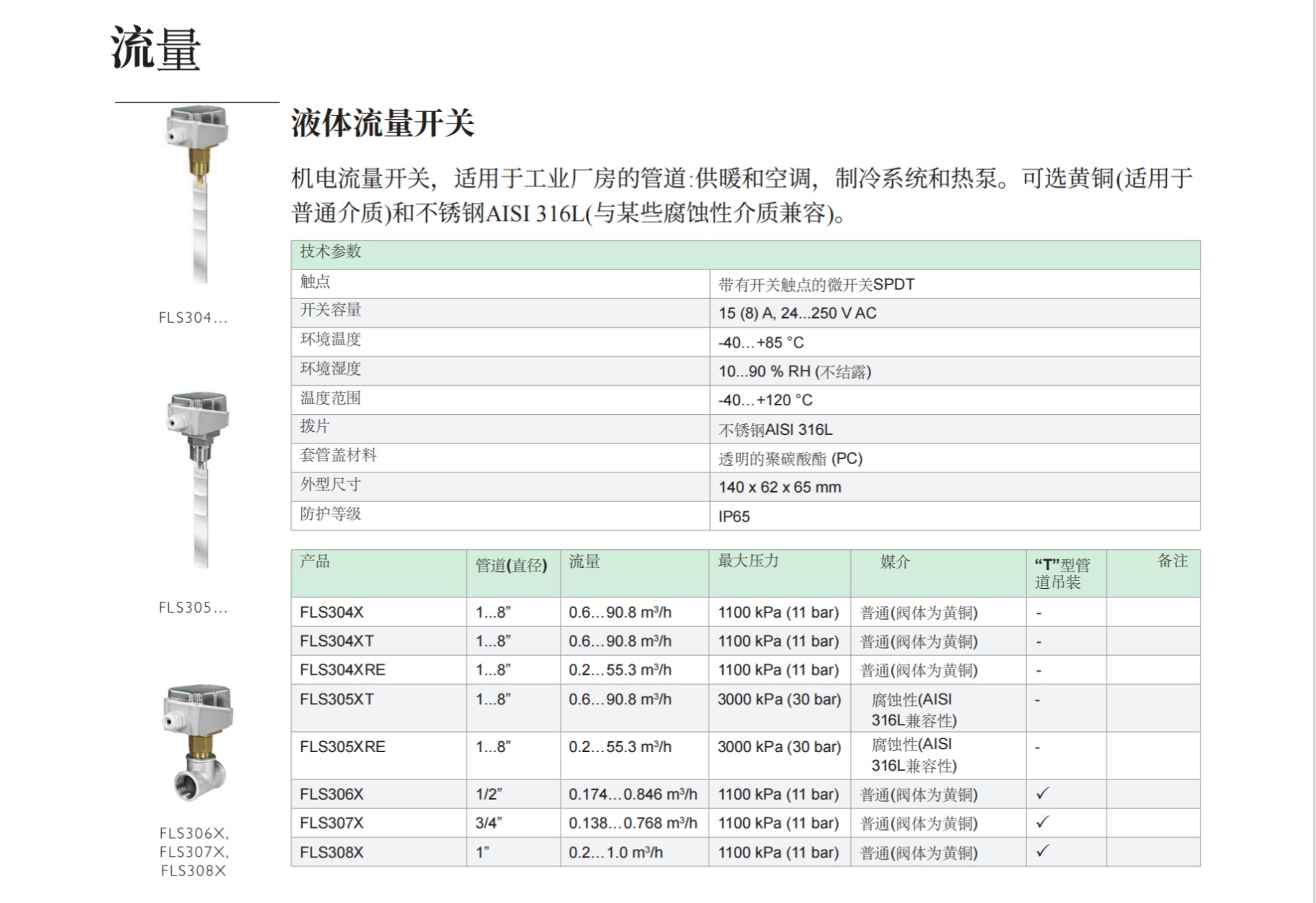

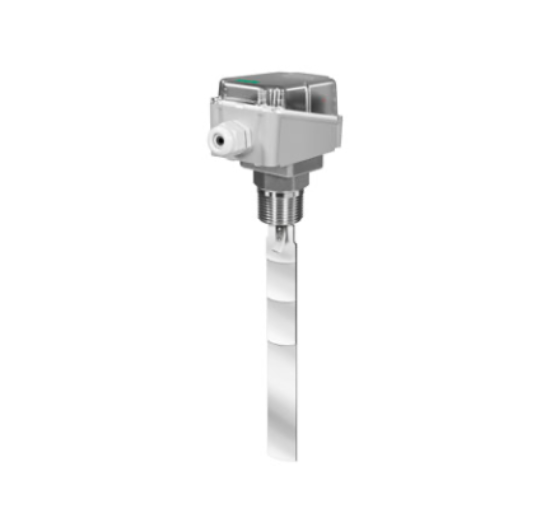

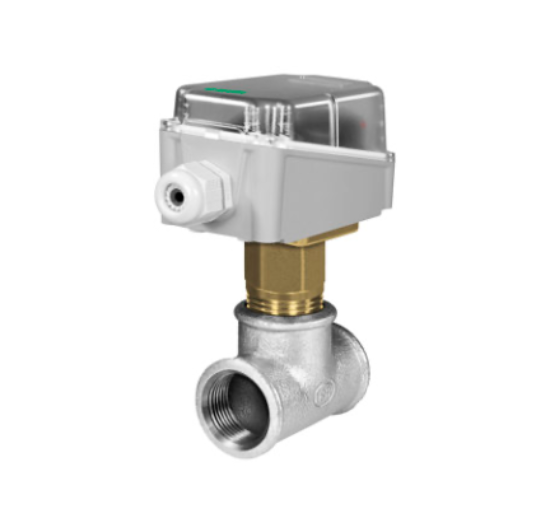

Electromechanical flow switches, suited for pipes of industrial plants: heating and air condition

ing, refrigeration systems and heat pumps. Available in brass (suitable for normal media), and

stainless steel AISI 316L (compatible with certain aggressive media).

Technical data

Contacts : Microswitch with switching contacts SPDT

Switch capacity: 15 (8) A, 24...250 V AC

Ambient temperature:-40…+85 °C

Ambient humidity:10...90 % RH (non-condensing)

Media temperature:-40…+120 °C

Paddles:Stainless steel AISI 316L

Material, casing cover:Transparent Polycarbonate (PC)

Dimensions : 140 x 62 x 65 mm

Protection class: IP65
