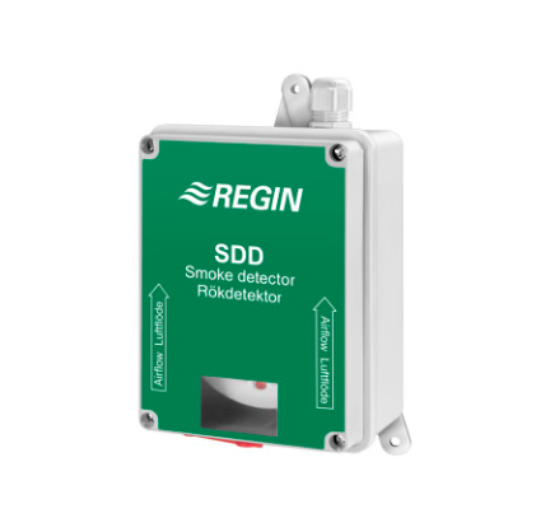

Smoke detector for duct mounting, optical

Single-tube detector, including 600 mm Venturi tube.

Technical data

Supply voltage:9...33 V DC (via ABV control unit).24 V AC ±15 % for RAC(M) models.

Power consumption, incl. end resistor (not RAC(M)):

Normal operation: 10 mA at 24 V DC.

Alarm condition: 50 mA at 24 V DC.

Service alarm condition: 20 mA at 24 V DC.

Mounting:Duct

Protection class:IP54

Article:

SDD-OE65:Optical detector with service alarm (max 20 sensors, to be connected to ABV control unit) including 600 mm Venturi tube.

SDD-OE65-RAC:Optical detector with AC power supply and relay output only, with service alarm,including 600 mm Venturi tube.
