RF Conducted Immunity Test System
US $6666.00 - US $66666.00
Production Lead Time:
30 day(s)
Shipping Method:
By sea
Description
Contact Supplier
Description
RFCI61000-6 Conducted Immunity Test System includes a built-in signal source, a power amplifier and power meter module, a variety of coupling decoupled network (CDN), electromagnetic clamp and current injection clamp developed by external attenuator by LISUN. It is widely used in medical, power, industrial control, new energy charging piles, communication piles and ect for industries.
Standard:
IEC61000-4-6/EN61000-4-6 (GB/T17626.6)”Electromagnetic compatibility(EMC)- Part 4-6:Testing and measurement techniques- Immunity to conducted disturbances, induced by radio- frequency fields”
ISO11452-4 “Road vehicles — Component test methods for electrical disturbances from narrowband radiated electromagnetic energy- Part 4:Harness excitation methods”
| Host Configuration | ||
Output Voltage | LISUN Model：RFCI61000-6-35W（Output power: 35W） | 1 ～ 17Vrms（CDN method） 1 ～ 11Vrms（Electromagnetic clamping method） |
LISUN Model：RFCI61000-6-85W（Output power: 85W） | 1 ～ 30Vrms（CDN method） 1 ～ 18Vrms（Electromagnetic clamping method） 1 ～ 10Vrms（Current injection clamping method） | |
Output impendance | 50Ω | |
Voltage resident rate | ≤ 1.2 | |
Output Frequence | 150kHz ～ 230MHz | |
| Harmonic | ＜ 15dBc | |
Signal source (built-in) | ||
Frequency | 9k ～ 1GHz | |
Output level | -60 ～ 10dBm | |
Non -row signal | Continuous wave | |
Modulation | A amplitude modulation modulation frequency: 1Hz ~ 10kHz modulation depth: 1 ～ 99% Pulse modulation and modulation frequency: 1Hz ~ 1kHz Lights ratio: 1 to 100% | |
Power amplifier (built-in) | ||
Output Frequency | 150kHz ～ 230MHz | |
Max. output power | LISUN Model RFCI61000-6-35W：+44dBm/35W LISUN Model RFCI61000-6-85W：+49dBm/85W | |
Harmonic | ＜ 15dBc | |
Power meter (built-in) | ||
Input Frequency | 9kHz ～ 3GHz | |
Input Power | -40dBm ～ +30dBm | |
Attenuator (built-in) | ||
Frequency Range： | DC~1GHz | |
Max. output power： | 100W | |
Attenuation value： | 6dB | |
Operation (please refer to GB/T17626.6 or IEC61000-4-6: 2014 Terms of Article 7.4.2 Figure 20 to select injection method: CDN method, electromagnetic clamp and current injection clamp method)):

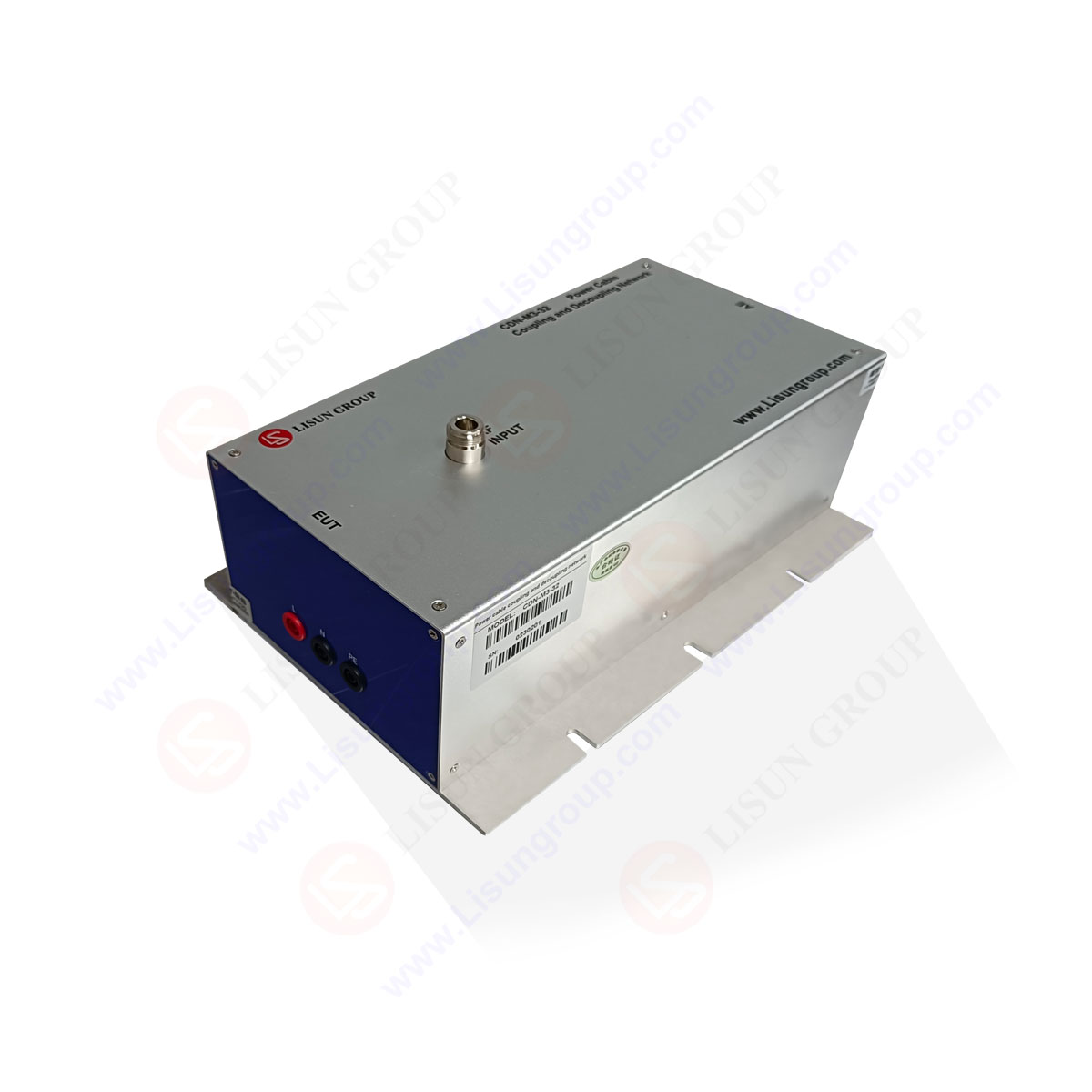

1. The host RFCI61000-6-35W/RFCI61000-6-85W can test the power cables or communications lines with the CDN Coupling Decoupling Network (Optional) of the following models of LISUN:
