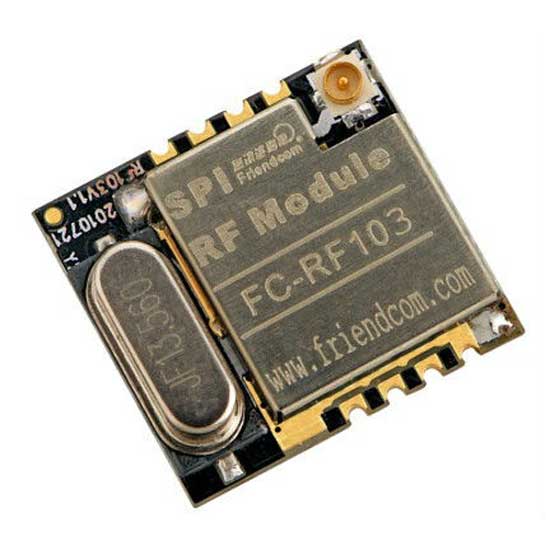

RF Transmitter Module
Model No.:
FC-RF103
Size:
17.6 x 16.2 x 5mm
Description
Contact Supplier
Description
This RF transmitter module features a working frequency range between 420MHz to 440MHz. The mini-sized RF transmitter module boasts low power consumption and high frequency stability. It can be widely applied to wireless data communication equipment, remote controls, wireless toys, etc.
- Working frequency: 420-440MHz.
- Low-cost and compact size.
- RF data rate: 20kbps SPI interface.
- Modulation: FSK.
- FC-RF103 is a low-cost mini-size low power consumption RF TX module.
- It has optional modulation FSK or ASK.
- It adopts crystal-based high performance RFIC.
- Its TX frequency can be programmable from 420MHz to 440MHz and TX power can be adjustable.
- It works in wide voltage with high frequency stability.
- It is recommended to work with FC-RF104 RF RX module from Friendcom.
- Work frequency: 433MHz.
- Work voltage: DC3V (2.2--3.3V), typical 2.8V DC.
- Tx current: 16mA@10dBm.
- Sleep current:: 1uA Max RF.
- Data rate: Max. 20kbps.
- Modulation: FSK optional.
- Programming interface: SPI.
- Working temperature: -30 degree to 70 degree Celsius.
- Storage temperature: -40 degree to 85 degree Celsius.
- Applications: wireless data communication, remote control, keyless entry, home automation, wireless toy, etc.
