RG213/U

RG213/U Coaxial Cable 50 Ohms
DESCRIPTION
RG213 Coax Cable is 50 ohm coaxial cable used in a vast array of military and commercial applications.

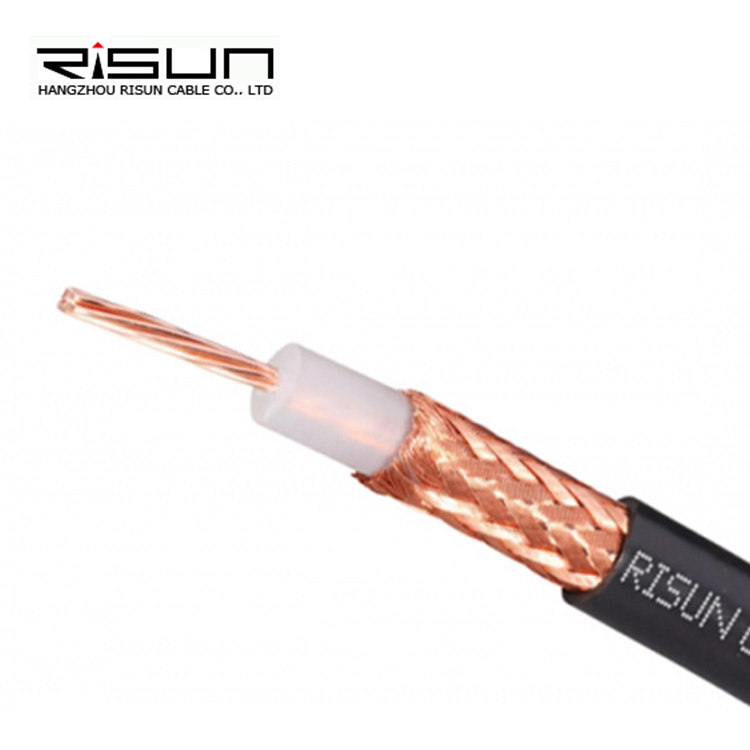

CABLE CONSTRUCTION
Conductor	Bare Copper Stranding Wire	7 / 0.724mm+/-0,005 mm)
Insulation	Solid PE	7,24 +/-0,10 mm
Shield	Bare Copper Wire Braid	95%
Sheath	PVC	10,30+/-0,10 mm
Color	Black
Bending radius	≥ 8 x Diameter (mm) Installation
Storage temperature	-15℃ + 70℃

*ELECTRICAL SPECIFICATIONS*
Nominal Impedance	50+/-3	Ohm
Capacitance approx	101+/-3	pF/m
Velocity ratio	66	%

Attenuation at 20°C MHz			dB/100 m
1			0,59
10			2,03
50			4,92
100			6,86
200			9,84
400			15,75
700			21,33
900			24,94
1000			30,18

PACKING

100 m / roll

305 m / wooden drum

500 m / wooden drum

All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.

FAQ:

Q:How do you ensure cables quality?
A:Each cable undergoes physical testing in accordance with ISO/IEC 11801 and TIA-568-C.2 standards. Our team monitors every stage of production, with QC inspecting each step to ensure quality.

Q:Are you a manufacturer or trading company?
A:We are a factory.

Q:What is your delivery time?
A:Typically 5-10 days if in stock; 20-30 days for custom orders, depending on quantity.

Q:Do you have an MOQ?
A:Yes, normally 10 km per item.

Q:Do you provide samples? Are they free?
A:Yes, samples are free, but freight charges apply.

Q:How do I place an order for cables?
A:Share your requirements or application.→We provide a quote.→Confirm the sample and place a deposit.→We start production.

Q:Can I print my logo on the cables?
A:Yes, inform us before production.

Q:What are your payment terms?
A:Orders ≤ 60 km: 100% upfront.
Orders ≥ 60 km: 30% deposit, balance before shipment.

Please contact us for more information and our quotation!
