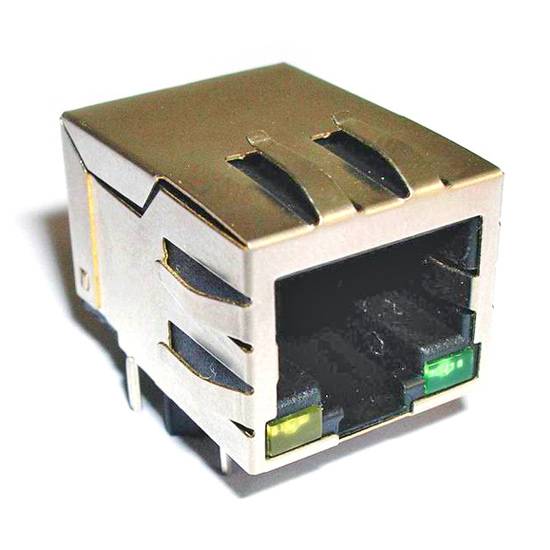

RJ45 Single Port Jack w/ LED and Transformer
Model No.:
AAR-RJ5-500-XXX
Brand:
LITE
Colour:
Black
Port:
Hong Kong
Minimum Order Quantity:
3000
Description
Contact Supplier
Description
This product is mainly applied to the PCI and hub (integrates electric appliance) monitors. It uses phosphor bronze rj connectors. It uses PA46+30%G.F UL 94 V-0 housing.
- Finish: contact area plated 15u min
- Solder tail area: tin plated 100u min
- Operating temperature: 0 - +70 degree celcius
- Insertion loss: 1.0db max@1~80MHz; 1.2 db max@100MHz
- Return loss: 14 db min@1~60MHz, 10 db min@60-100MHz
