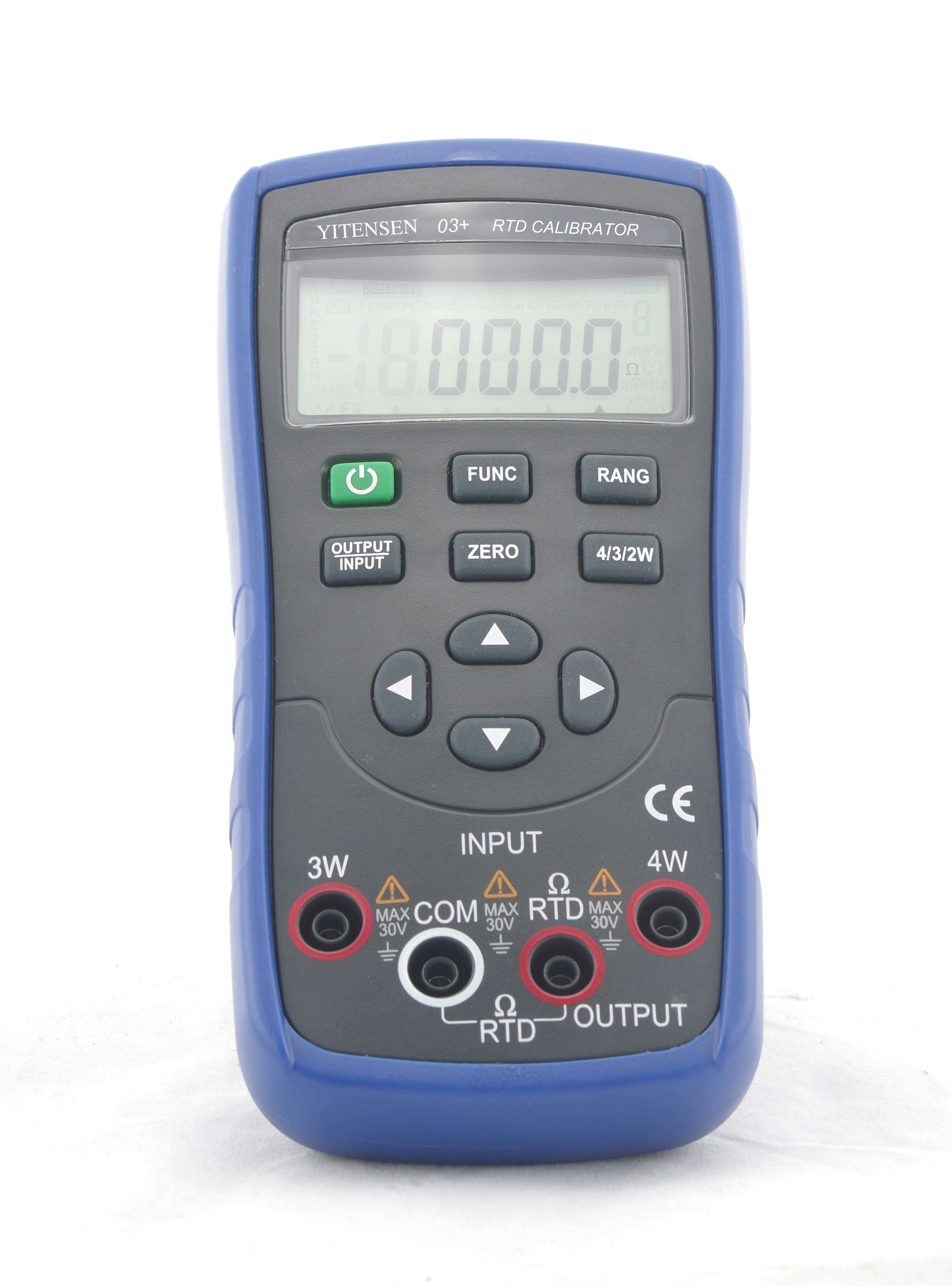

RTD Calibrator 03+
Production Lead Time:
30 day(s)
Model No.:
YITENSEN 03+
Description
Contact Supplier
Description

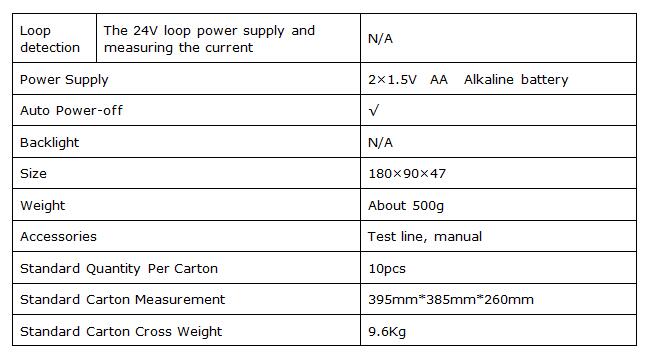

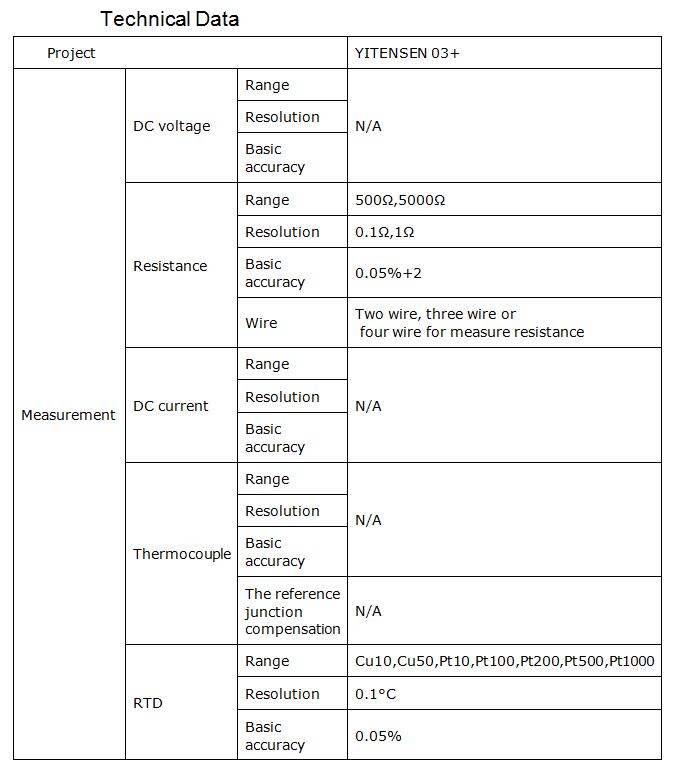

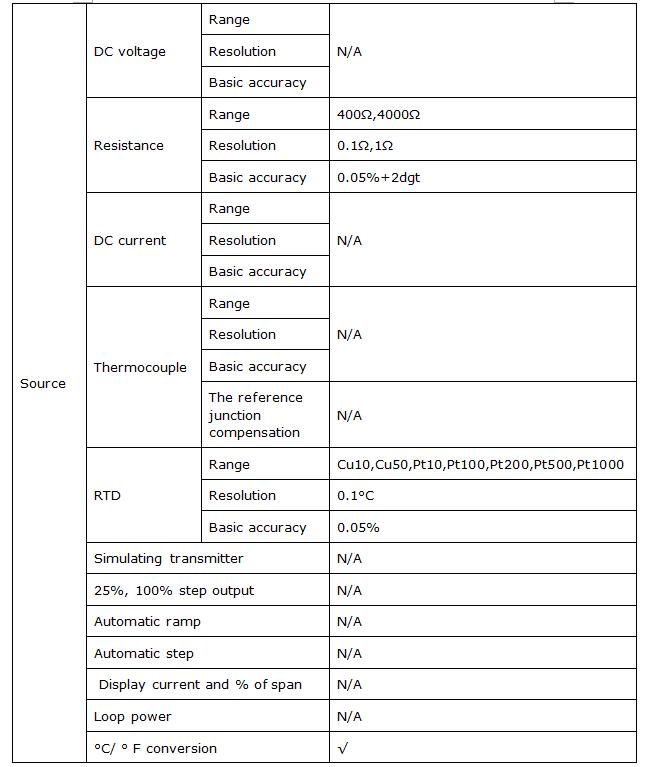

(More details please see the form in the pictures)
Product Features:
Product Features:
- The highest output accuracy of 0.05%, the output shows 5 digits.
- Measuring function: thermal resistance, resistance.
- The output function: thermal resistance, resistance.
- Can be two-wire, three-wire, four-wire system of 7 kinds of thermal resistance(Pt10 / Pt100 / Pt200 / Pt500 /Pt1000 / Cu10 / Cu50) measurements and resistance (400Q / 40000) measurements.
- Simulated 7 kinds of thermal resistance (Pt10 / Pt100 / Pt200 / Pt500 / Pt1000 / Cul0 / Cu50) output. The output resistance (400Q / 4000Q) generates a thermal resistance temperature signal that provides additional indexing. The response time of the current excitation source is less than 5m, which can be used as the temperature source for the excitation of the pulsed current such as DCS, PLC and temperature logging device and the temperature signal of the secondary instrument.
- Can be display as ℃ or ℉ temperature.
- The output set value by bit corresponding to the increase or decrease settings, simple and quick operation.
- With 2 AA alkaline batteries, battery door can be easily replaced battery.
