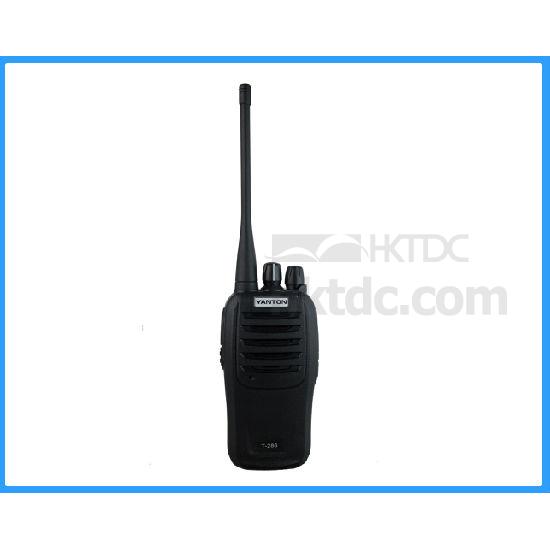

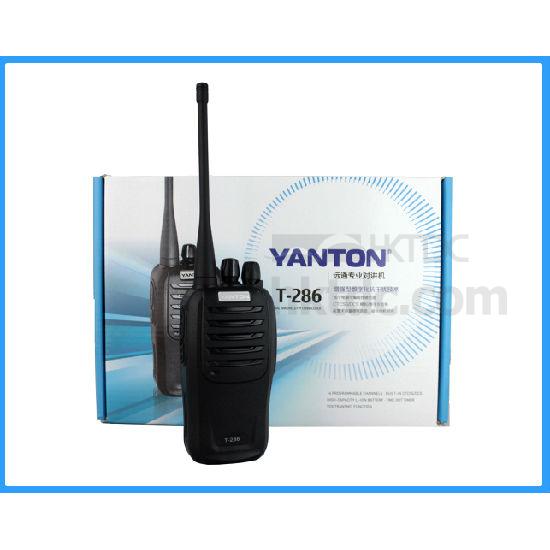

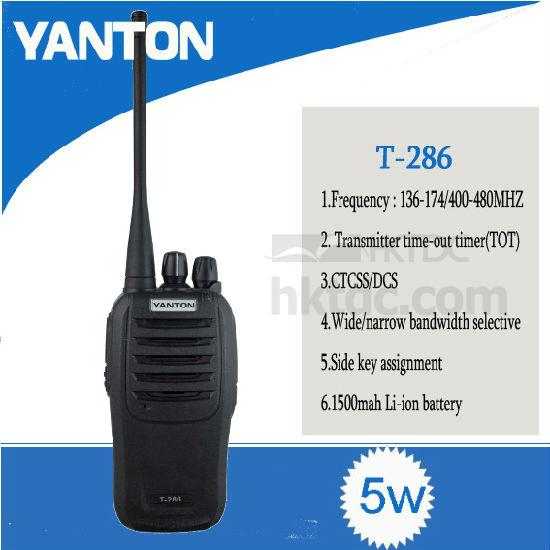

Radio Transceiver
Share this page
Production Lead Time:
3 day(s)
Model No.:
T-286
Brand:
YANTON
Colour:
Black
Size:
111 x 54 x 34mm
Port:
Xiamen, Shenzhen, Guangzhou
Type of Payment:
T/T, Western Union, PayPal
Minimum Order Quantity:
1 piece
Description
Contact Supplier
Description
  • Output power: 5W.
  • Frequency range: 136-174MHz/400-480MHz.
  • 16 memory channels.
  • Scan.
  • PC software programmable and wire copy.
  • VOX function.
  • CTCSS/DCS.
  • Monitor, reverse frequency.
  • Power saving function, low power warning.
  • High/low power selective.
  • Wide/narrow bandwidth selective.
  • FM radio (87.5-108MHz).
  • Chinese and English voice prompt.
  • Whispering function.
  • Busy channel lock.
  • Transmitter time-out timer (TOT).
  • Side key assignment.
  • 0-9 grades squelch level setting.
  • Calling remind.
  • 1500mAh Li-ion battery.
Technical parameters:
  • Frequency range: 136-174MHz/400-480MHz.
  • Channel no.: 16.
  • Operating temperature: -20-60°C.
  • Frequency stability: ±2.5ppm.
  • Antenna: high gain antenna.
  • Antenna impedance: 50Ω.
  • Operating voltage: DC 7.4V.
  • Battery: 1500mAh (Li-ion).
  • Mode of operation: simple or semi-duplex.
  • Weight: 249g (with antenna & battery).
Transmitter:
  • Output power: 1W/5W.
  • Modulation mode: F3E.
  • Maximum deviation: ≤5kHz.
  • Remain wave radiation: <-60dB.
  • Transmitting current: ≤1000mA.
Receiver:
  • RF sensitivity: <0.25μV (12dB).
  • Squelch sensitivity: <0.20μV.
  • Inter-modulation anti jamming: 50dB.
  • Rated audio power output: 500mW.
  • Receiving current: ≤100mA.
  • Squelch standby current: 20mA.
If you are interested in our Yanton T-286 radio transceiver, please contact us as soon as possible. We will reply to your inquiry within 24 hours.
