Radio Transmitter
Production Lead Time:
1 day(s)
Model No.:
T-189
Brand:
YANTON
Colour:
Black
Size:
105 x 56 x 31mm (L x W x H, without antenna)
Port:
Xiamen,Shenzhen,Guangzhou
Type of Payment:
TT, Western Union, Paypal
Minimum Order Quantity:
1 Set
Description
Contact Supplier
Description
- Output power: 1W/5W.
- Frequency range: 136-174MHz/400-480MHz.
- 16 Memory Channels.
- Scan function.
- PC software programmable and wire copy.
- VOX function.
- CTCSS/DCS.
- Monitor, reverse frequency.
- Power saving function, low power warning.
- Selectable high/low power.
- Selectable wide/narrow bandwidth.
- FM radio (87.5-108MHz).
- Chinese and English voice prompt.
- Whispering function.
- Busy channel lock.
- Transmitter time-out timer (TOT).
- Side key assignment.
- 0-9 grades squelch level setting.
- Calling remind.

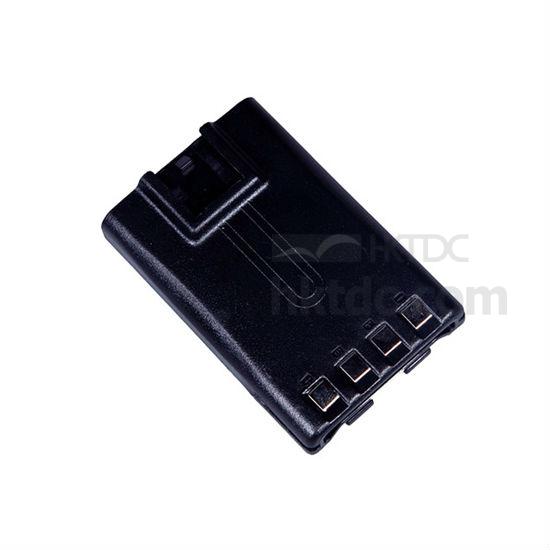

- 1500mAH Li-ion battery.

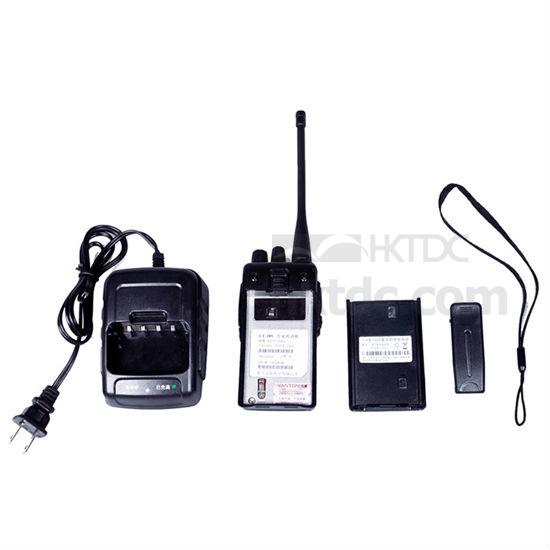

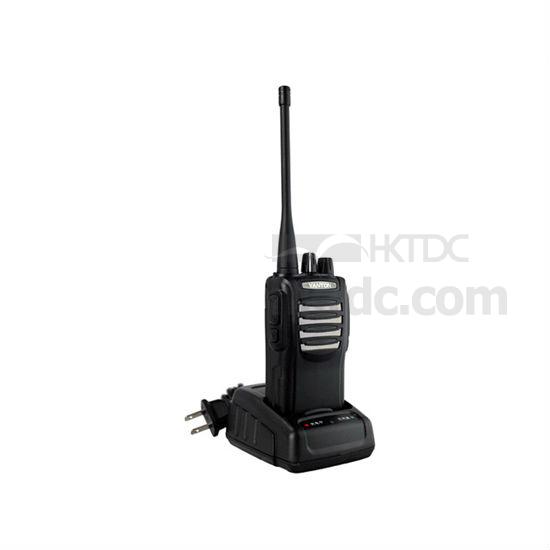

- With charger stand, back clip and removable carry strap.
- Durable construction.
- Simple controls.
Technical parameters:
- Frequency range: 136-174MHz/400-480MHz.
- Channel no.: 16.
- Operating temperature: -20-60°C.
- Frequency stability: ±2.5ppm.
- Antenna: high gain antenna.
- Antenna impedance: 50Ω.
- Operating voltage: DC 7.4V.
- Battery: 1500mAh (Li-ion).
- Mode of operation: simple or semi-duplex.
- Weight: 210g (with antenna & battery).
Transmitter:
- Output power: 1W/5W
- Modulation mode: F3E.
- Maximum deviation: ≤5kHz.
- Remain wave radiation: <-60dB.
- Transmitting current: ≤1000mA.
Receiver:
- RF sensitivity: <0.25μV (12dB).
- Squelch sensitivity: <0.20μV.
- Inter-modulation anti jamming: 50dB.
- Rated audio power output: 500mW.
- Receiving current: ≤100mA.
- Squelch standby current: 20mA.
