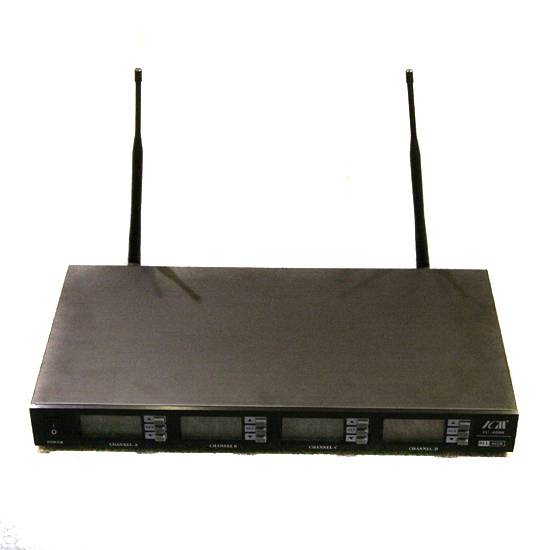

As shown is a receiver which supports carrier wave frequency range from UHF 790 - 814 MHz. This receiver is phase-locked loop controlled. The carrier wave stability of this receiver is 10 PPM. With a LCD display, this receiver shows functions-in-use and other information clearly.

• Switching bandwidth: 24 MHz
• Frequency space: -105 dB @ sinad = 12 dB
• S/N ratio: > 105 dB
• T.H.D.: < 0.5% @ 1KHz
• Image rejection: 85 dB typical
• Spurious rejection: 75 dB typical
• Frequency responses: 40 Hz ~ 18 kHz
• Working distance: 200 ft.
• AF output impedance: 2.2 k ohm
