Quick Details

• Item type: downlights
• Lamp body material: aluminum
• Model number: RC-60204
• Place of origin: Fujian, China (Mainland)
• Brand name: OMD
• Recessed lighting: white
• Voltage: 120V
• Material: aluminum
• Shape: cylindrical
• Light source: filament lamp

Packaging & delivery

• Packaging details: carton
• Delivery detail: 30 days

Specifications

• Recessed lighting
• (RC-60204)
• Size: H7 1/2"xL13 1/2"xW7"
• Aperture: 6 1/4"

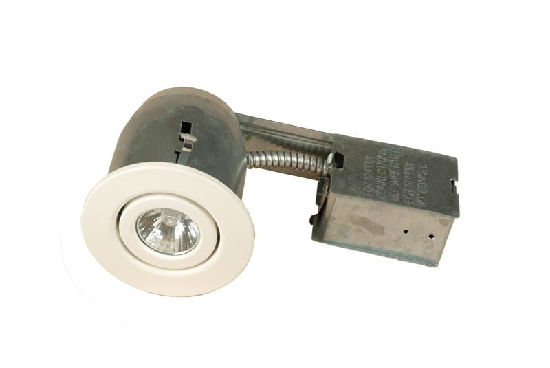

Recessed light

Features

• IC Rated for direct contact with non-cellulose type •insulation.
• Incandescent.
• 75W Max (dependant upon the trim used).
• ETL, c-ETL listed for damp location and feed through wiring.
• Thermally protected against improper lamping.
• Meets Washington State energy code for restricted airflow requirements.
• J-Box is listed for through-branch circuit wiring (4 in - 4 out) and eight 1/2" knockouts and four non-metallic cable knockouts with strain relief clamps.
• 3-port quick connectors pre-installed in J-box.
• Adjustable socket bracket plate for proper positioning of different lamp types.
• Adjusts to accommodate various ceiling thickness.
• 7 1/2" height allows use in 2" x 8" joist construction.
