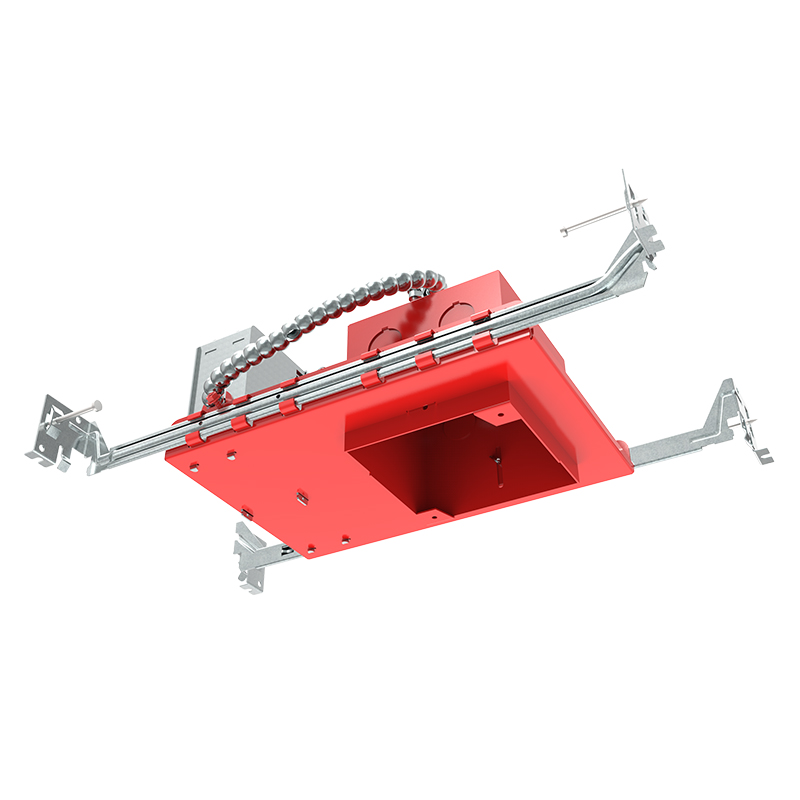

Recessed Lighting 4" Airtight LED Fire-Rated Red Series New Construction Housing

US $4.56 - US $5.51

US $4.80 - US $5.80

Production Lead Time:

5 day(s)

Shipping Method:

Contact supplier to negotiate shipping details

Brand:

Liteharbor

Model No.:

A4-F-S

Size:

4''

Pattern:

Square

Light Source:

LED

Feature:

2 Hours Fire R

Application:

Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail. Especially in areas with limited ventilation, such as closets and utility rooms.

Listed:

ETL Certificated，UL Certificates ASTM E283 certified Air Tight.

Description

Certification & Document

Contact Supplier

Feature

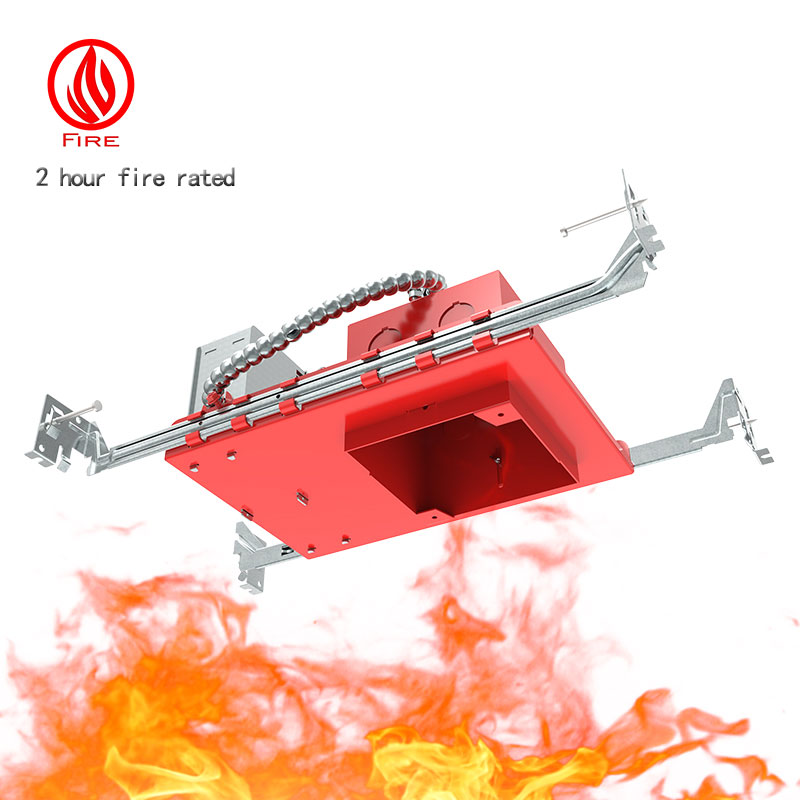

₋2 Hour Fire Resistance to meet and exceed strict fire safety codes.

₋Rated for direct contact with IC insulation.

₋LED quick connector provided.

₋UL Certificates ASTM E283 certified Air Tight.

₋Type IC rated for direct contact with insulation; Type non-IC insulation should be kept minimum 3” away from all sides of fixture.

Junction Box

Pre-wired #21 gauge galvanized steel junction box with (7) 1/2” knockouts and (4) Romex® knockouts and removable plates.

Installation

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.
