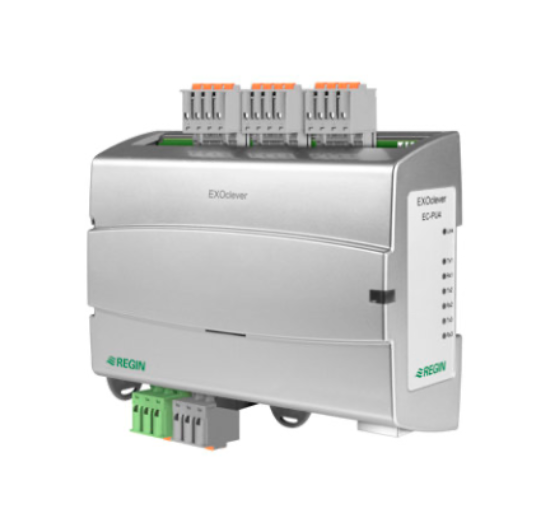

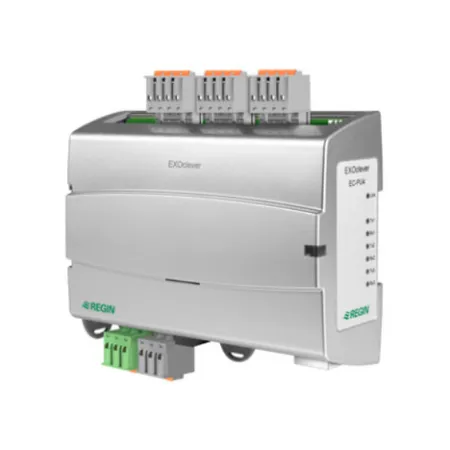

EXOclever processor unit with 4 communication ports

EXOclever is a versatile modular-based controller together with our additional I/O units. The controller provides communication via various ports for integration with Arrigo BMS or other SCADA system.

Technical data

Supply voltage : 24 V AC 50…60 Hz or 24 V DC

Tolerance :18…26 V AC / 22…30 V DC

Power consumption :10 VA / 5 W

Dimensions (WxHxD) :140 x 136 x 40 mm

Mounting :DIN-rail

Protection class :IP20

Operating system :EXOrealC

Battery backup :RAM, RTC, atleast 5 years

Ambient temperature :0…55 °C

Ambient humidity :Max. 95 % RH

Storage temperature :-20…+70 °C

Storage humidity :Max. 95 % RH

Communication ports

Ethernet :EXOline-TCP/IP, Modbus-TCP, BACnet/IP

RS485 :EXOline, EFX, Modbus-RTU, M-Bus Master (through X1176)

EFX :EFX Master (Add:io, EXOflex)

Ethernet ports:1

RS485 ports:3

EFX ports:1
