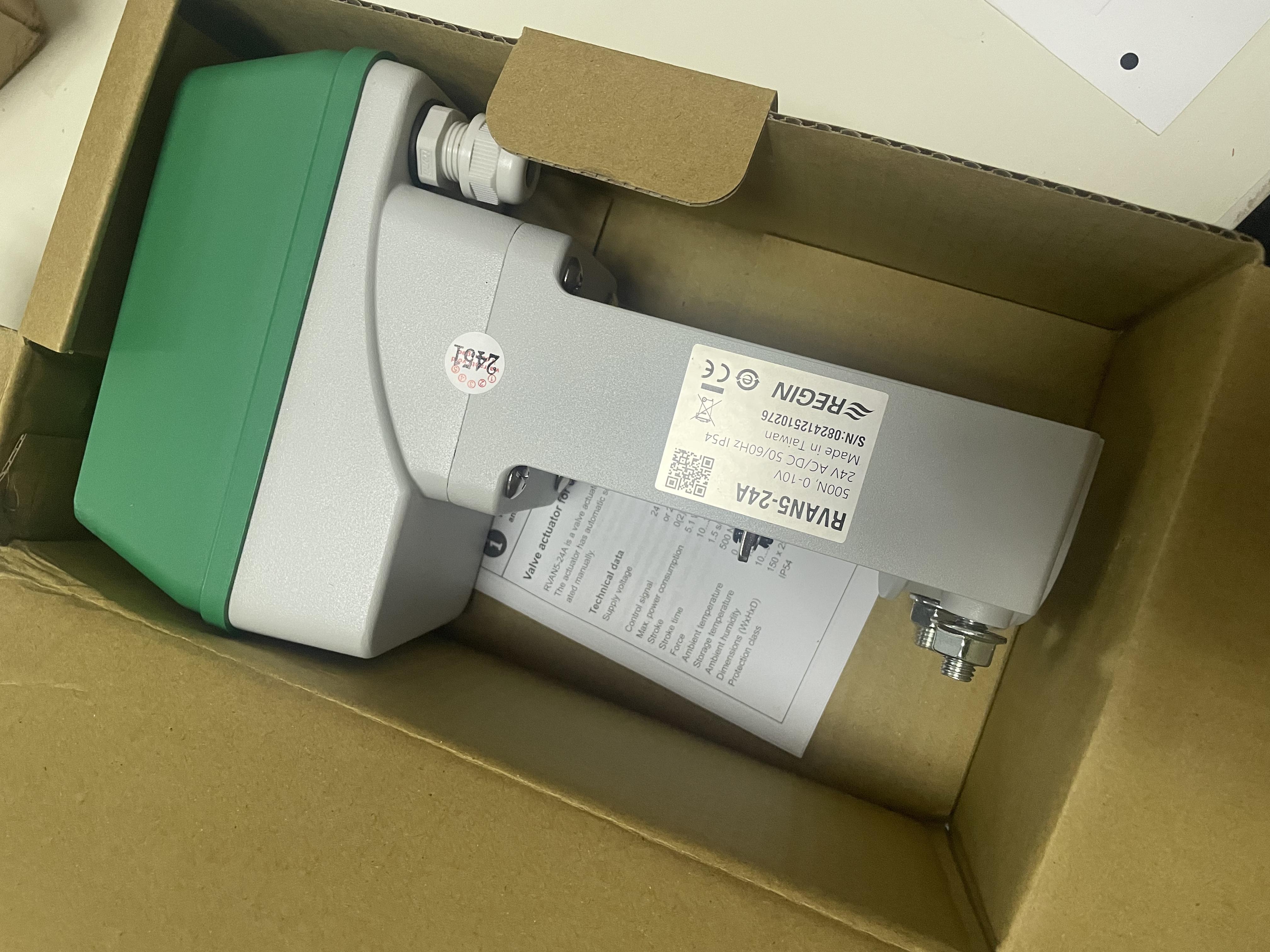

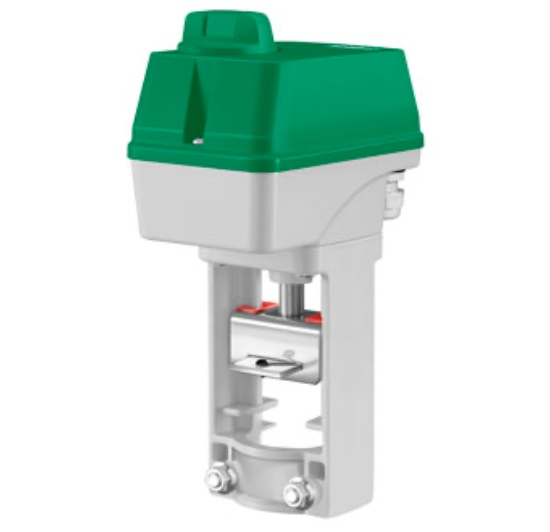

Valve actuator, 24 V supply voltage and 0(2)...10 V DC control

Valve actuator with automatic stroke adjustment for control of Regin’s range of valves. Availa

ble in models with actuator force of 500, 1000, 1800 or 2500 N. The actuators can be operated

manually with the manual override mechanism on the lid. Using an adapter kit, the actuator

can also be adapted for use with other valves on the market.

Technical data

Supply voltage : 24 V AC/DC

Control signal : 0...10 V DC or 2...10 V DC (or 4…20 mA with a 500 Ω resistor connected)

Ambient temperature : 0…50 °C

Storage temperature : -40...80 °C

Ambient humidity : 10...90 % RH

Protection class : IP54
