Relay Socket 8pins
Production Lead Time:
3 day(s)
Model No.:
AS760
Brand:
Asiaon
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

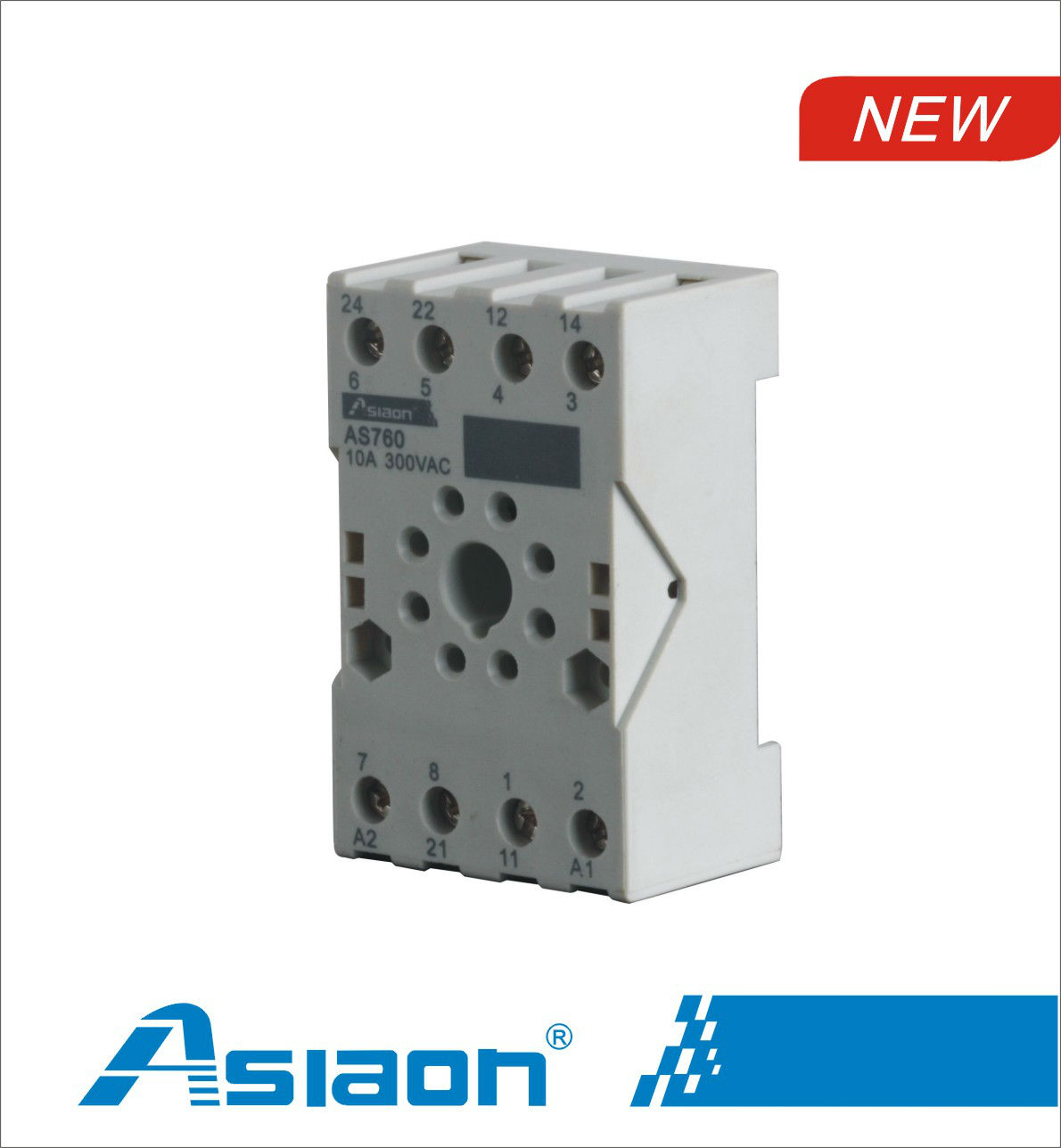

- AS760 Relay Socket 8pins
- Rated load Current/Voltage A/VAC 10/300
- Dielectric Strength Coil/Contact V/S 4000 Between contact V/S 2500
- External connection wire AWG/mm2 20-14/0.5-2.5
- Screw torque Nm 0.8
- Terminal protection degree IP20
- Mached relay Socket model Relay model Metal Clip Module AS760 MK2P MK2PK 60.2 70.2 AS80.2 90.2 JQX-10 2Z K-53 N/A
