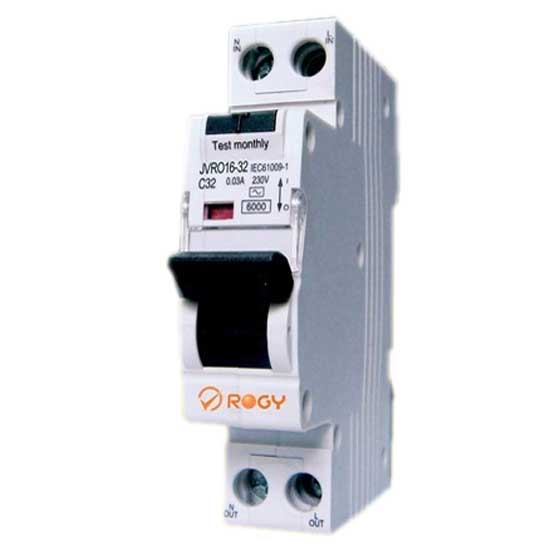

This residual current circuit breaker is an automatic switch designed to protect an electrical circuit from damage caused by overload, short circuit, leakage current, earth fault, etc. In case of overload of the protected circuit, the RCBO handle trips and stays at central position, which enables a quick solution to the faulty line. It also effectively protects electric equipment against insulating failure.

• Electronic type.
• Residual current characteristics: AC.
• Pole Number: 1P+N.
• Tripping curve: B, C.
• Rated short-circuit capacity: 10,000A.
• Rated current (A): 6, 10, 16, 20, 25, 32.
• Rated voltage: 240V AC.
• Rated frequency: 50/60Hz.
• Rated residual operating current (A): 0.03, 0.1.
• Tripping duration: instantaneous≤0.1s.
• Electro-mechanical endurance: 4,000 cycles.
• Connection terminal: pillar terminal with clamp.
