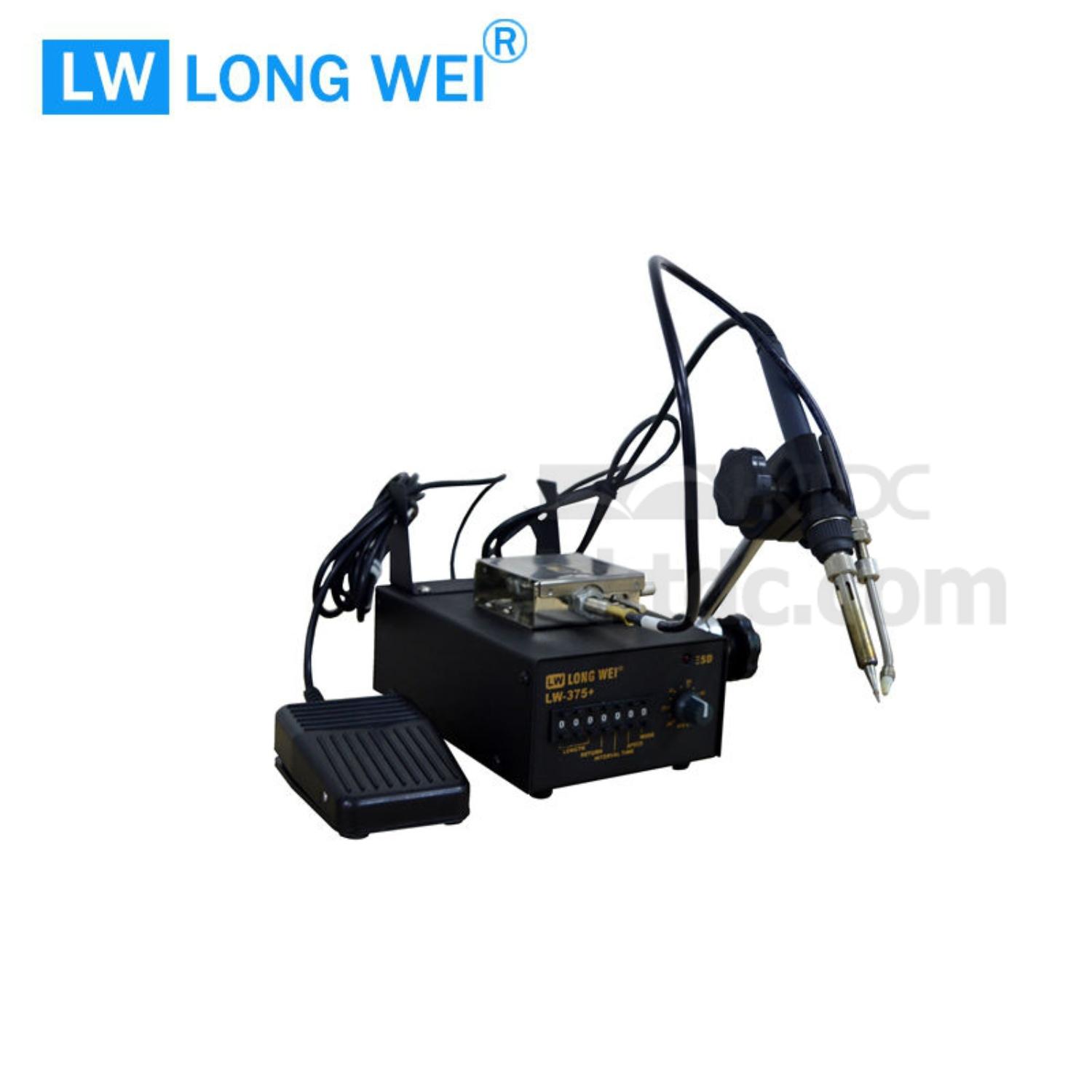

Rework Station Automatic Tin Feed Soldering Machine
Production Lead Time:
8 day(s)
Model No.:
LW375+
Brand:
LW/longwei
Port:
Yantian
Type of Payment:
T/T, Western Union
Minimum Order Quantity:
5 piece(s)
Customised:
Yes
Description
Contact Supplier
Description
Specification
Feature:
- The Max Power： 60W
- The heater working voltage： 24V
- Iron Temperature： 200℃~480℃
- Temperature stability： ±2℃
- Iron leakage voltage： ＜2Mv
- Earth resistor： ＜2Ω
- Motor： Stepping motor
- Tin out of speed：about 2.77mm/s~27mm/s（36°/s~360°/s）
- Quantity of tin： 0~150mm
- Tin out of time interval： 0~2.7s
- Back to the time of tin：0~0.9s(aoubt 0~25mm Fixed speed：360°/s)
- Tin out of mode： automatic（1~9）/hand movement（0）
- Tin wire diameter：0.5 0.6 0.8 1.0 1.2 1.4 1.6 optional
Feature:
- 1. This product performance is stable, anti-static design, to avoid sensitive electronic components damaged by static electricity, high cost performance, through multiple quality inspection, perfect after-sale service and product quality assurance.
- 2. Using high temperature ceramic heater, heating 24 v low voltage, safe and reliable
- 3. The RTD sensor temperature control, heat up quickly accurate temperature stability.
- 4. The tin can choose according to need to adjust themselves in diameter, greatly improving the user's share.
- 5. Automatic function of tin, dial the code switch design, there is the function of back into the tin, so as to reduce the waste of the solder.
- 6. The tin speed, the quantity of tin, the tin, the tin interval, time can be set up.
- 7. Foot switch control out of the tin, automatic, people accused of two kinds of works.
- 8.All adjust the welding head.Welding is convenient.
- 9. Suitable for welding ,connectors and other special welding work.
