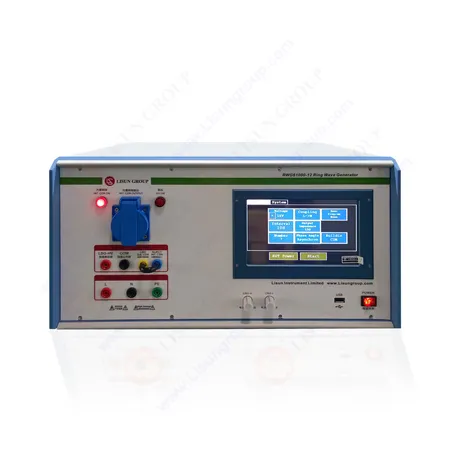

Ring wave test generator is designed according to the IEC61000-4-12, EN61000-4-12, ANSI-C62-41 and GB/T17626.12. This instrument is used for the simulative electrical network, the power supply of the reactive load and the control line switch, as well as sensing the ring wave of the low voltage cables terminal equipment caused by the disconnection of the power circuit, fault and insulation breakdown or lightning stroke. The RWG61000-12 series products have LCD display in both English and Chinese.

Standard:
IEC61000-4-12/EN61000-4-12/GB/T17626.12 “Electromagnetic compatibility (EMC) – Part 4-12: Testing and measuring – Ring waves immunity test”
ANSI-C62-41 “IEEE Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits”

Specification:
