Rockchip RV1126 Development Board Core Board IPC RV1109 AI SDK Software Development Kit vcan1748
US $40.50 - US $68.40
US $45.00 - US $76.00
Production Lead Time:
15 day(s)
Shipping Method:
DHL, UPS, FedEx
Brand:
Rockchip
Model No.:
RV1126-Vcan1748
Customised:
Yes
Size:
38x38mm
Description
Contact Supplier
Description

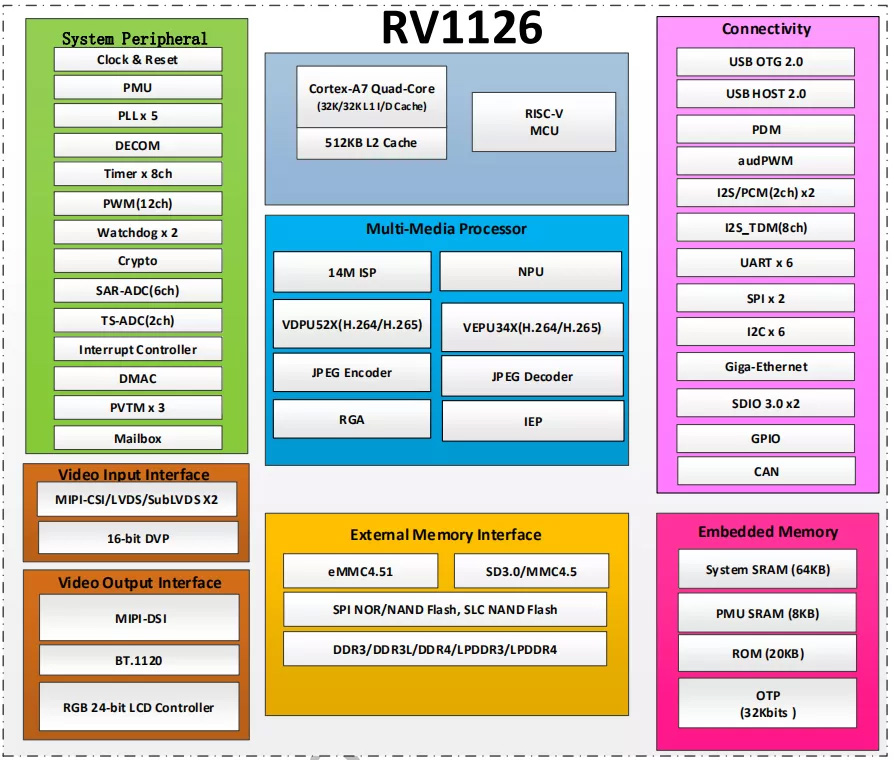

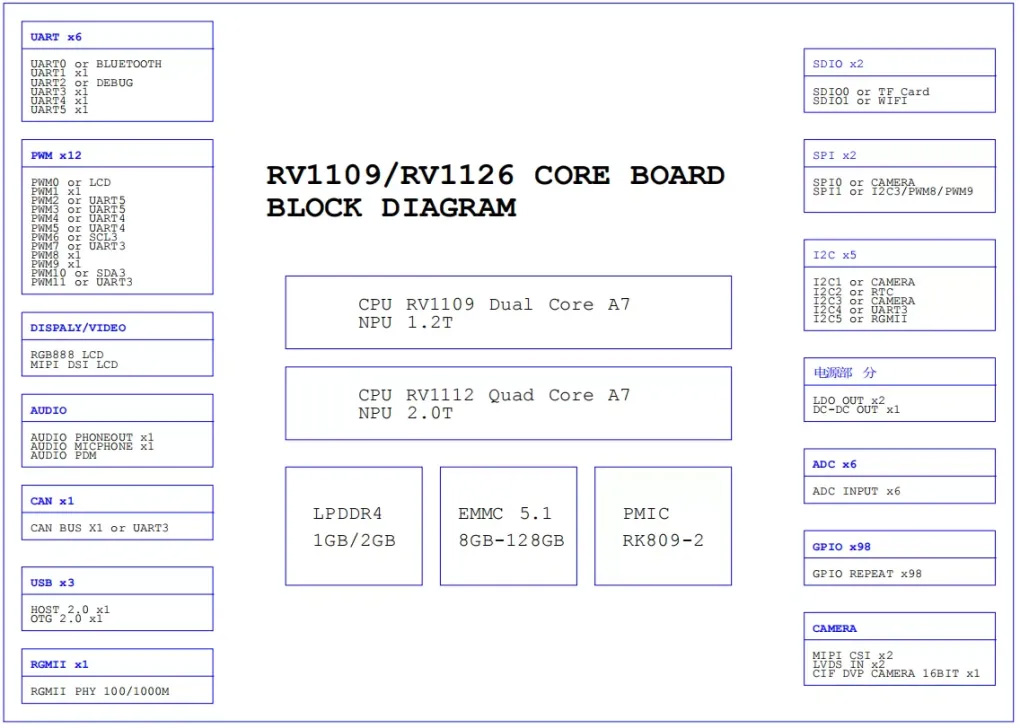

Rockchip RV1126 Development Evaluation Board Core Board IPC AI SDK Software Development Kit
Product Applications
Intelligent IPC, Face Recognition Panel Machine, Face Capture Camera, Video Doorbell, No Network, and No Power Camera, Express Handheld, GPS Navigation, Man-Machine Interface, Monitoring Equipment, Drone Pod, Video Conferencing System, etc.
Want to work with Sony IMX415 lens camera module?
Download the SDK

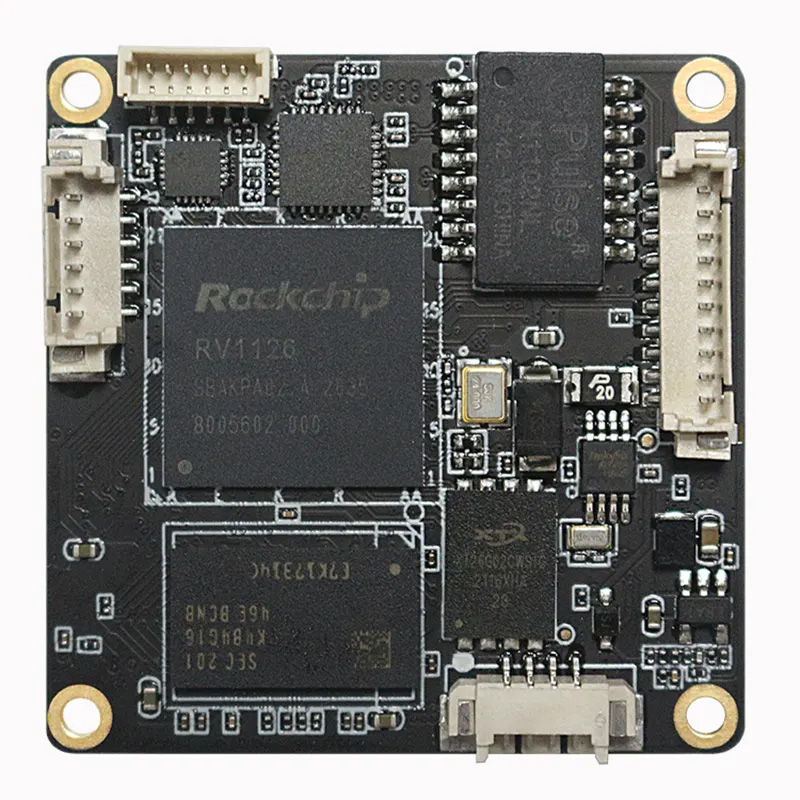

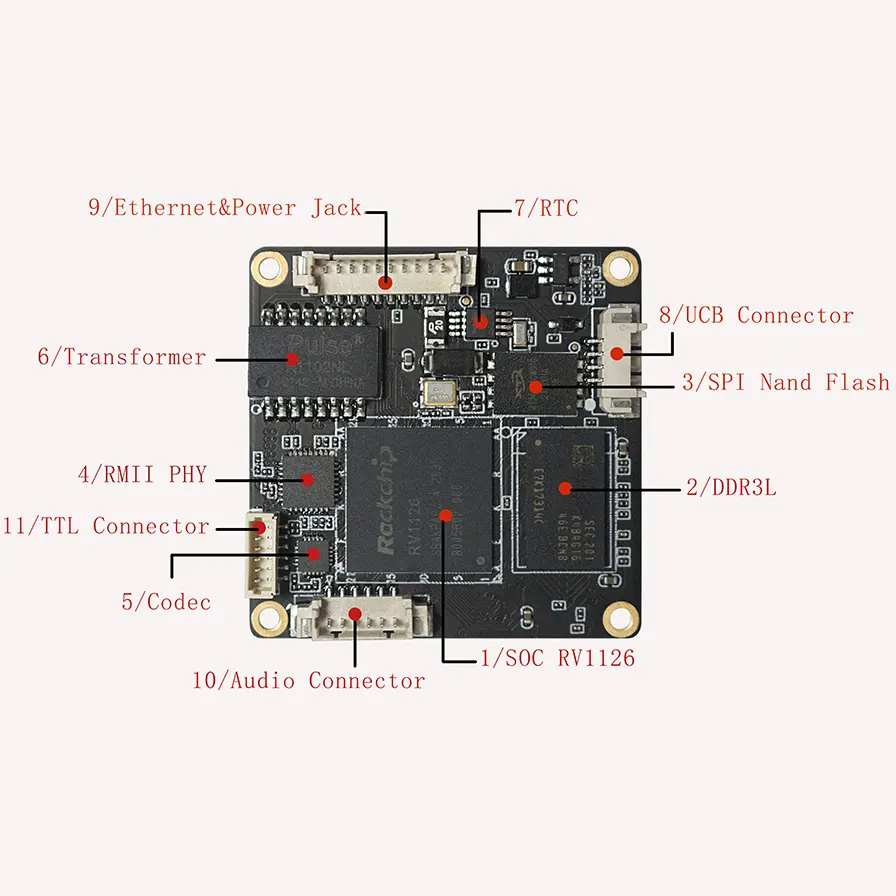

Front View Specification
1. SOC RV1126, Pin to Pin compatible with RV1109;
2. DDR3L (Samsung K4B4G1646E BCNB)
A 4G bit DDR3 K4B4G1646E BCNB is attached to the front and back of the entire board, with a total of 8G bit DDR3;
3. SPI Nand Flash:
Version A is equipped with 2G bit SPI Nand Flash XT26G02AWSEGA
Version B is equipped with 4G bit SPI Nand Flash XT26G04AWSEGA
4. RMII PHY (RTL8201F)
5. Codec (ES8311)
6. Transformer (Network isolation transformer MS10232ANL)
7. RTC （BM8563）
8. USB Connector
Pin1 | VCC5V0_OTG |
Pin2 | OTG_DM |
Pin3 | OTG_DP |
Pin4 | GND |
9.Ethernet&Power Jack
Pin1 | TX+ | Pin6 | RX- |
Pin2 | TX- | Pin7 | POE78 |
Pin3 | RX+ | Pin8 | POE78 |
Pin4 | POE45 | Pin9 | GND |
Pin5 | POE45 | Pin10 | VCC12V_DCIN |
10. Audio Connector
Pin1 | LED1/PHYAD1 |
Pin2 | LED0/PHYAD0 |
Pin3 | RESET |
Pin4 | MICP |
Pin5 | GND |
Pin6 | LINE_OUT |

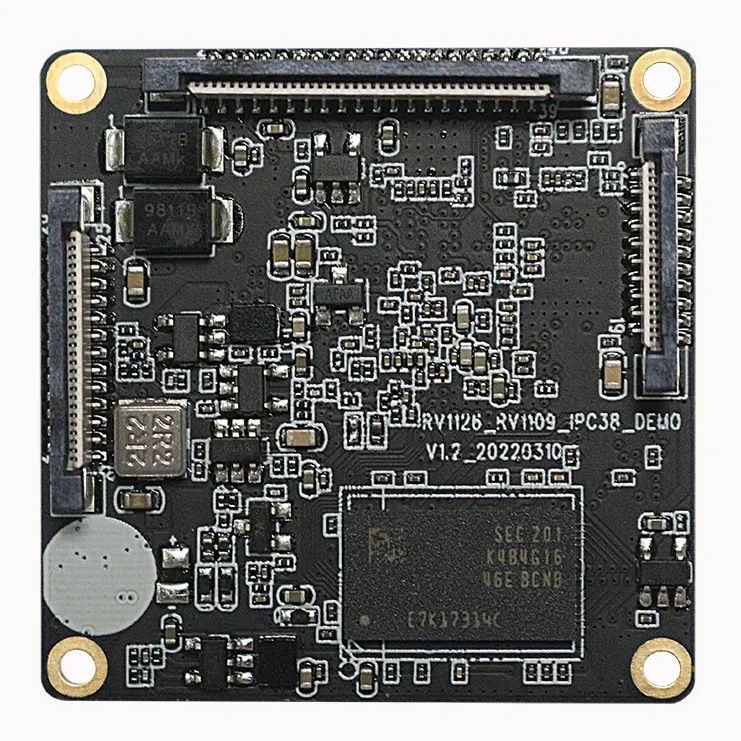

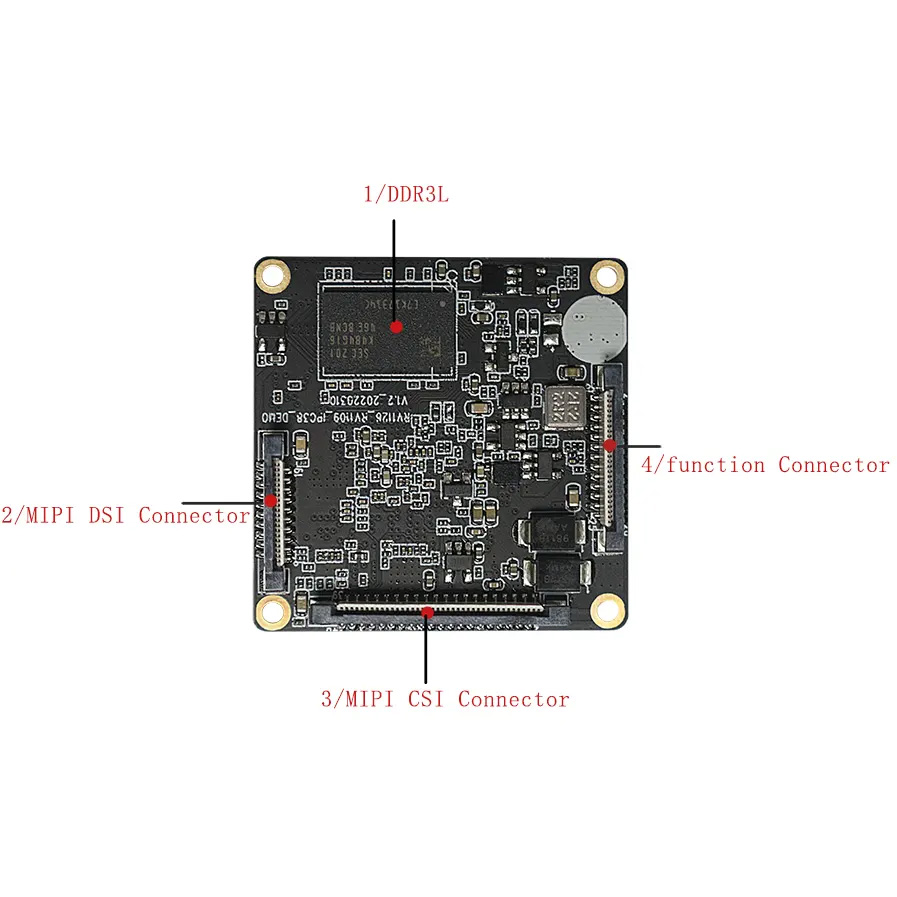

Back View specification
1.DDR3L (Samsung K4B4G1646E BCNB)
A 4Gbit DDR3 is attached to the front and back of the entire board, with a total of 8G bits;
2.MIPI DSI Connector
Pin1 | IRQ | Pin11 | MIPI_DSI_D3N |
Pin2 | PWR_EN | Pin12 | MIPI_DSI_D3P |
Pin3 | RST | Pin13 | MIPI_DSI_D0N |
Pin4 | I2C3_SDA | Pin14 | MIPI_DSI_D0P |
Pin5 | I2C3_SCL | Pin15 | GND |
Pin6 | GND | Pin16 | MIPI_DSI_CLKN |
Pin7 | MIPI_DSI_D2P | Pin17 | MIPI_DSI_CLKP |
Pin8 | MIPI_DSI_D2N | Pin18 | GND |
Pin9 | MIPI_DSI_D1P | Pin19 | VCC_12V |
Pin10 | MIPI_DSI_D1N | Pin20 | VCC_12V |
3.MIPI CSI Connector
Pin1 | VCC3V3_SYS | Pin21 | MIPI_CSI_RX0_D1N |
Pin2 | VCC3V3_SYS | Pin22 | MIPI_CSI_RX0_D0P |
Pin3 | SPI0_CLK | Pin23 | MIPI_CSI_RX0_D0N |
Pin4 | LED_PWM | Pin24 | GND |
Pin5 | SPI0_CS0N | Pin25 | MIPI_CSI_CLK0 |
Pin6 | SPI0_MISO | Pin26 | GND |
Pin7 | SPI0_MOSI | Pin27 | PWM8 |
Pin8 | I2C1_SDA | Pin28 | IRC_AIN |
Pin9 | I2C1_SCL | Pin29 | PWM11 |
Pin10 | MIPI_RX0_PDN | Pin30 | PWM9 |
Pin11 | MIPI_RX0_RST | Pin31 | IRC_BIN |
Pin12 | GND | Pin32 | ZOOM_EN |
Pin13 | MIPI_CSI_RX0_CLKP | Pin33 | PWM10 |
Pin14 | MIPI_CSI_RX0_CLKN | Pin34 | P-IRIS_EN |
Pin15 | GND | Pin35 | FOCUS_EN |
Pin16 | MIPI_CSI_RX0_D2P | Pin36 | ADC_IN |
Pin17 | MIPI_CSI_RX0_D2N | Pin37 | GND |
Pin18 | MIPI_CSI_RX0_D3P | Pin38 | VCC_1V8 |
Pin19 | MIPI_CSI_RX0_D3N | Pin39 | VCC_12V |
Pin20 | MIPI_CSI_RX0_D1P | Pin40 | VCC_12V |
4. Function Connector
Pin1 | HOST_DM | Pin14 | SDMMC0_D0 |
Pin2 | HOST_DP | Pin15 | SDMMC0_CLK |
Pin3 | GND | Pin16 | SDMMC0_D3 |
Pin4 | GND | Pin17 | RS485_CTL |
Pin5 | ALARM_IN | Pin18 | UART3_RX_485 |
Pin6 | SDMMC0_DET | Pin19 | UART3_TX_485 |
Pin7 | ALARM_OUT | Pin20 | GND |
Pin8 | SDMMC0_PWREN | Pin21 | VCC_12V |
Pin9 | SDMMC0_D2 | Pin22 | VCC_12V |
Pin10 | USB_PWREN | Pin23 | POE45 |
Pin11 | SDMMC0_CMD | Pin24 | POE78 |
Pin12 | GND | Pin25 | POE36 |
Pin13 | SDMMC0_D1 | Pin26 | POE12 |
