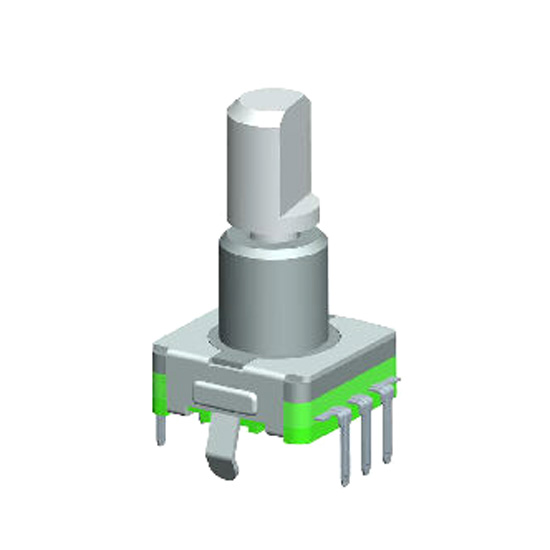

Rotary Encoder
Production Lead Time:
3 day(s)
Model No.:
RE1103XW1-H01
Brand:
LJV
Size:
11mm
Port:
Shenzhen, Hong Kong
Description
Contact Supplier
Description
Made to be of high quality, this rotary encoder delivers reliable and stable performance. The well-designed component is easy to install. It is sturdily constructed for a long service life.
- From the RE11 series.
- Mechanical characteristic: shaft wobble: 0.7 x L/30mm P-P max.
- Total rotational angle: 360 degrees.
- Rotational torque: 30-200gf.cm.
- Push-pull strength: 10kgf max.
- Electrical characteristic: maximum operating current: 10mA.
- Rating: DC 5V 10mA.
- Insulation resistance: 100m ohm min. at 300V DC.
- Voltage proof: 300V AC for 1 minute.
- Pulse/detent: 15 pulse/30 detent, 20 pulse/20 detent, 9 pulse/18 detent.
- Endurable characteristic: operating temperature range: -30-80°C.
- Rotational life: 30,000 cycles.
- Switch Characteristic: switch current: DC 5V 10mA.
- Single pole and single throw (push on).
- Push torque: 550+/-250gf.
- Push life: 20,000 cycles.
