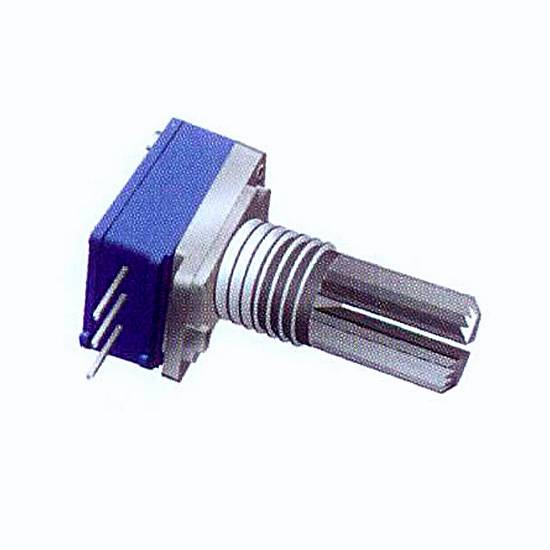

Rotary Potentiometer
Model No.:
WH9011A-1-18T
Size:
9mm
Minimum Order Quantity:
1,000 pc(s)
Description
Contact Supplier
Description
The rotary potentiometer boasts a sophisticated construction for high performance. The robust design ensures high safety and durability. This rotary potentiometer is a great choice for various electronic designs.
- Resistance range: 5-250K.
- Resistance tolerance: +-20%.
- Power rating: 0.05W.
- Rated voltage: 50V AC.
- Rotational noise: <=100mv.
- Withstanding voltage: 300V AC for 1minute.
- Total rotational angle: 300 degrees, +/-5 degrees.
- Switch voltage: 16V, DC.
- Switch current: 1A.
- Switch working angle: <=50 degrees.
- Mechanical endurance: 10,000 turns.
- With metal shaft.
