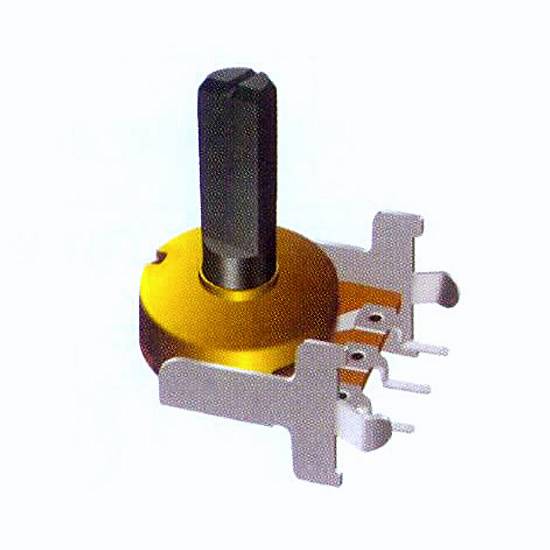

Rotary Potentiometer
Model No.:
WH012111-F
Size:
12mm
Minimum Order Quantity:
1,000 pc(s)
Description
Contact Supplier
Description
The rotary potentiometer boasts a sophisticated construction for high performance. It comes with an insulated shaft for enhanced safety. This rotary potentiometer is a great choice for various electronic designs.
- Standard shaft size.
- Tolerance of resistance: +-20%.
- Power rating: 0.05W.
- Rated voltage: 50V AC.
- Rotational noise: <=47mv.
- Withstanding voltage: 300V AC for 1minute.
- Total rotational angle: 300 degrees, +/-5 degrees.
