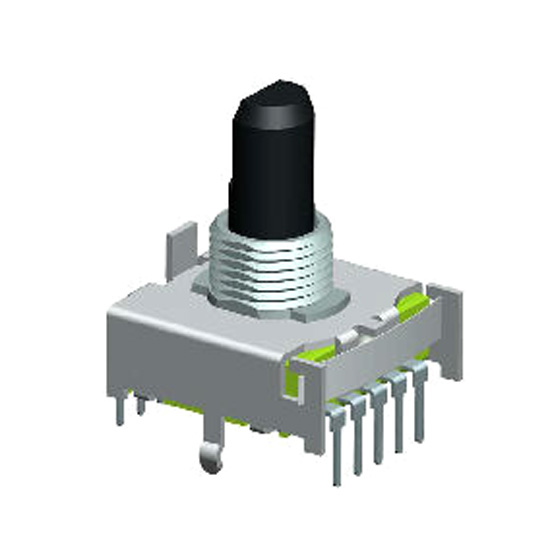

Rotary Switch
Production Lead Time:
3 day(s)
Model No.:
RS1700P1SXCB-H01
Brand:
LJV
Size:
17mm
Port:
Shenzhen, Hong Kong
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
Well engineered, this rotary switch delivers reliable and stable performance. The high-quality switch is easy to install. It is sturdily constructed for a long service life.
- RS17 series rotary switch.
- Mechanical characteristic: changeover angle: 30 +/- 3 degree.
- Click torque: 300-700 gf.cm.
- Push-pull strength: 8kgf Mix. at 10 sec.
- Shaft wobble: 0.7 x L/30mm P-P max.
- Rotation stopper strength: 5.0kgf.cm Min.
- Electrical characteristic: rated power: DC 16V 0.3A Max.
- Number of poles/positions: 1/2-8, 2/2-8.
- Insulation resistance: 100m ohm Min. at 250V DC.
- Terminal contact resistance: 100 ohm Max.
- Voltage proof: 1 minute at AC 500V.
- Endurable characteristic: operating temperature range: -40-85°C.
- Rotational life: 20,000 cycles.
