Rotary Switch
Production Lead Time:
14 day(s)
Model No.:
MFR01-A1F03L1S-R
Brand:
Legion
Colour:
Black
Size:
14x14 Ø32
Operating Temperature:
0 ~ 85 degrees celsius
Max. Current:
12A
Mechanical Life:
10000 cycles min.
Package:
Yes
Customised:
Yes
Max. Voltage:
250V AC
Description
Contact Supplier
Description

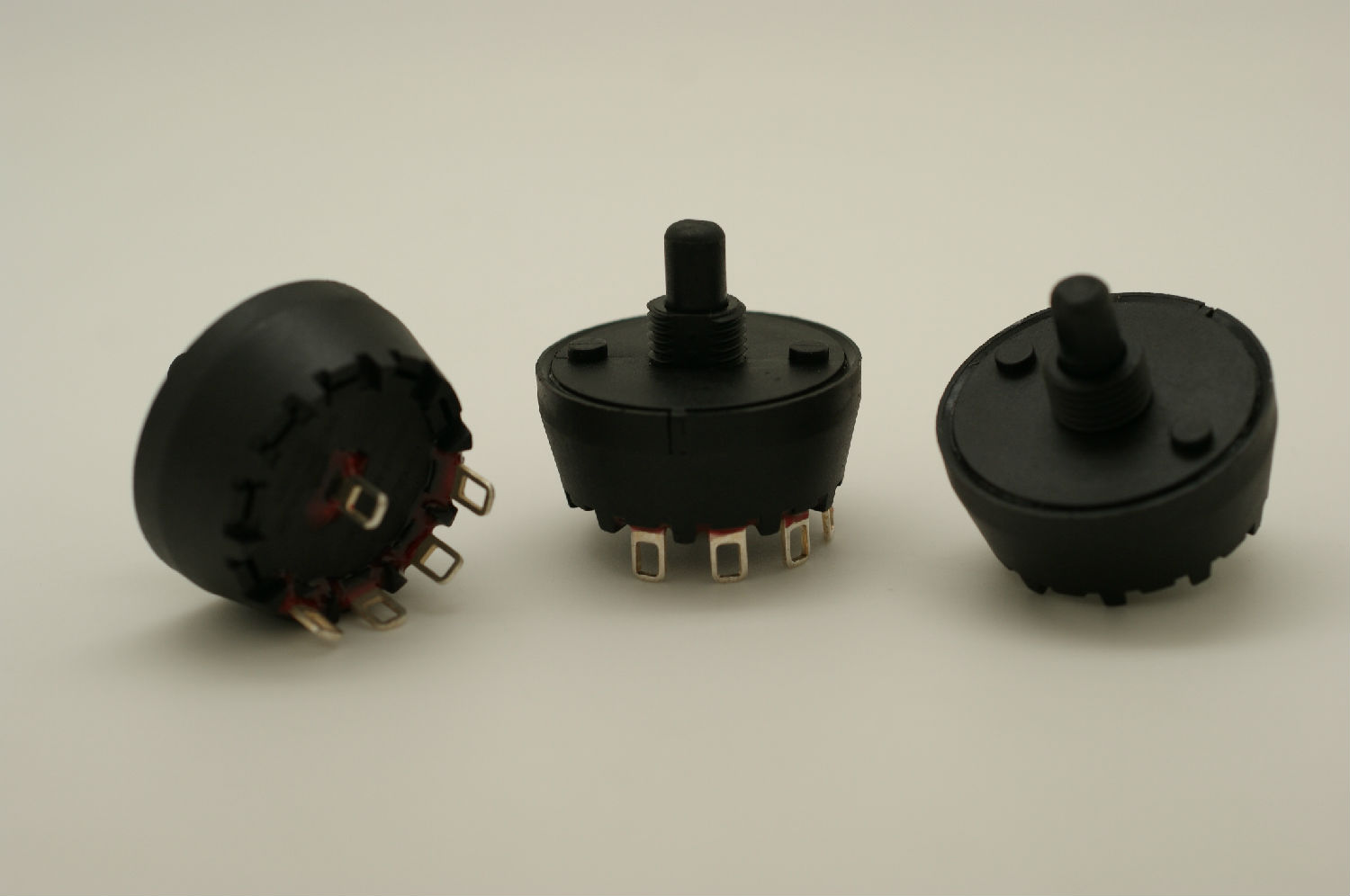

0-10 positions power rotary switch, with certification of CUL, ENEC17, CB, CQC; can be equipped with knobs. Its actuator in PA66+30%GF(UL 94V-0), cap in Nylon66(UL 94V-0), base in Nylon66(UL 94V-0), terminal in Brass/Copper alloy silver-plated. Features: The switch has 45 degrees and 36 degrees for seach position. Panel cutout dimension is 22mm. The maximum outer diameter is 32mm.
