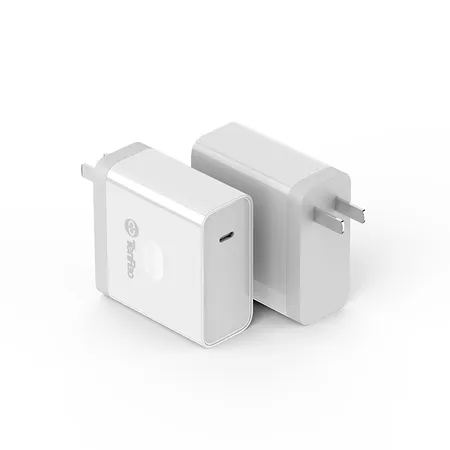

S0140CA 140W PD Fast Charge
Model No.:
S0140CA
Brand:
Ten Pao
Customised:
Yes
Description
Contact Supplier
Description
Main Technical Features：
1. Adopts digital power technology AHB half-bridge circuit topology + GaN
2. Fulfill the 35-degree safety regulation and long-time operation
3. Designed for demanding notebook computers
4. Supports PD3.0, PPS, QC3.0 & QC2.0，good compatibility
5. The output is equipped with TVS protection to ensure the reliability of the power terminal.
| Model Series | S0140CA | |
| Input Parameter | ||
| Rated Input Voltage | 100-240VAC | |
| Max Input Voltage | 90-264VAC | |
| Input Line Frequency | 50-60HZ | |
| Maxmium Efficiency | 94% | |
| AC Plug | Fixed Pin (CN/US) | |
| Output Parameter | ||
| Output Receptacle | USB-C | |
| Output Voltage | 5V/9V/12V/15V/20V/28V | |
| Output Current | 3A/3A/3A/3A/5A/5A | |
| Output Power | 140W Max | |
| Size | 68*65*31mm | |
| Safety standard | UL62368,EN62368,FCC PART 15,EN55032,GB4943.1 | |
| Safety Certificate | Fulfill the UL/CUL,CB/CE,CCC,FCC and etc. | |
