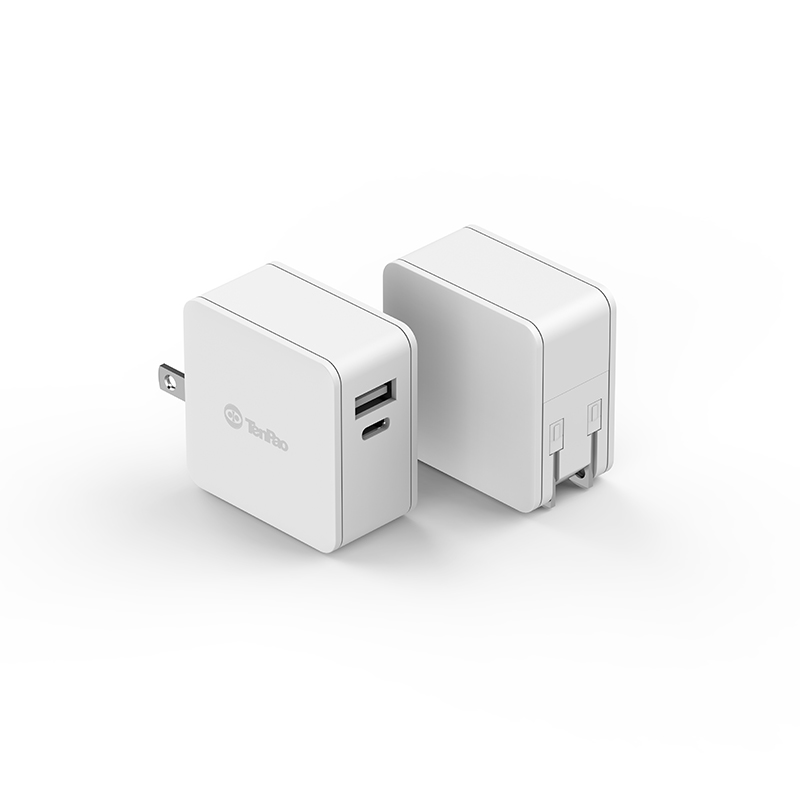

S030BS 30W PD Fast Charge
Model No.:
S030BS
Brand:
Ten Pao
Customised:
Yes
Description
Contact Supplier
Description
Main Technical Features:
1. Designed with foldable pins for easy portability
2. Various output states meet the VI standard of energy efficiency, high efficiency and energy saving
3. Support PD3.0 & PPS, and QC3.0 & QC2.0
4. USB-A Port 18W max, Type-C Port 30W max; A+C=5V/3A
5. Supports charging two devices simultaneously
6. The output is equipped with TVS protection to ensure the reliability of the power end
| Model Series | S030BS | |
| Input Parameter | ||
| Rated Input Voltage | 100-240VAC | |
| Max Input Voltage | 90-264VAC | |
| Input Line Frequency | 47-63HZ | |
| Maxmium Efficiency | 89.0% | |
| AC Plug | Foldable | |
| Output Parameter | ||
| Output Receptacle | USB-C | USB-A |
| Output Voltage | 5V/9V/12V/15V/20V | 5V/9V/12V |
| Output Current | 3A/3A/2.5A/2A/1.5A | 3A/2A/1.5A |
| Output Power | 30W MAX | 18W MAX |
| Size | 50*50*28.5mm | |
| Safety standard | UL62368,EN62368,FCC PART 15,EN55032,GB4943.1 | |
| Safety Certificate | UL/CUL, FCC, CCC, PSE | |
