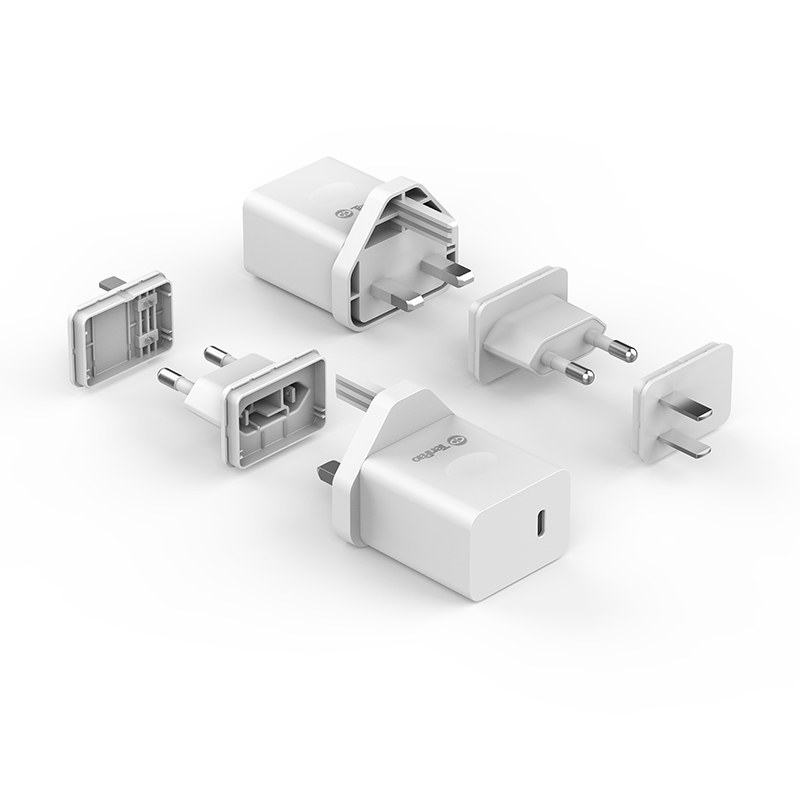

S030CB 30W PD Fast Charge
Model No.:
S030CB
Brand:
Ten Pao
Customised:
Yes
Description
Contact Supplier
Description
Main Technical Features:
1. Flyback QR circuit topology
2. 30W maximum, single USB-C port
3. Supports PD3.0,QC2.0,QC3.0,PPS, good compatibility
4. Meets the requirements of EU VI energy efficiency
5. Meets Global EMC requirement
6. Most competitive design for cost
| Model Series | S030CB | |
| Input Parameter | ||
| Rated Input Voltage | 100-240VAC | |
| Max Input Voltage | 90-264VAC | |
| Input Line Frequency | 50-60HZ | |
| Maxmium Efficiency | 90.0% | |
| AC Plug | Fixed Pin（CN/US/UK/EU） | |
| Output Parameter | ||
| Output Receptacle | USB-C | |
| Output Voltage | 5V/9V/12V/15V/20V | |
| Output Current | 3A/3A/2.5A/2A/1.5A | |
| Output Power | 30W MAX | |
| Size | 44*41*28.5mm | |
| Safety standard | UL62368,EN62368,FCC PART 15,EN55032,GB4943.1 | |
| Safety Certificate | Fulfill the UL/CUL,CB/CE,CCC,FCC and etc. | |
