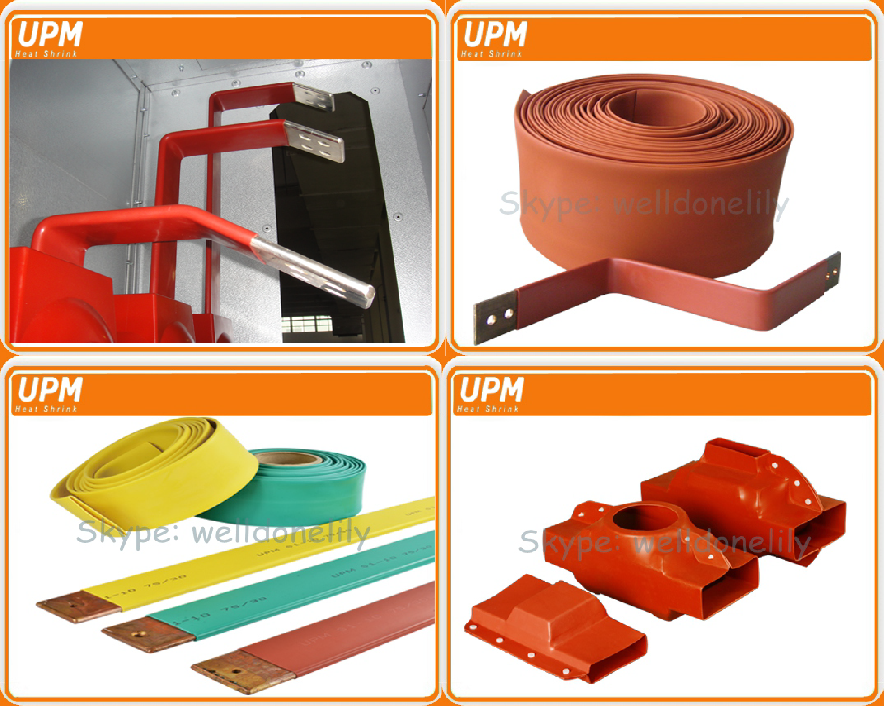

S1(n)-10 Bus bar insulation protective heat shrink tubing

• Halogen-free and environmentally friendly polyolefin material, can be applied in 6kV to 24kV power switchgear, providing insulation enhancement, protection against flashover or accidental discharge. Especially suitable for switchgear with limited space, it can be used for circular and rectangular copper or aluminum busbars.
•

• Dimension
  Size	As supplied (mm)	After recovered (mm)		Standard length (m)
  S1(n)-10	Inner diameter D (min.)	Inner diameter d (max.)	Wall thickness t (nom.)
  25/10	25	10	2.50	25
  30/12	30	12	2.70	20
  40/16	40	16	2.70	20
  50/20	50	20	2.70	20
  65/25	65	25	2.90	20
  75/30	75	30	2.90	20
  85/35	85	35	2.90	20
  100/40	100	40	2.90	20
  120/50	120	50	2.90	20
  150/60	150	60	3.00	20
  175/75	175	75	3.00	20

•

  Products Slection
  Bus Bar Size (mm)	Single Layer Bus Bar	Double Layer Bus Bar
  20×3, 25×3	Φ25/10	Φ30/12
  30×3, 30×4	Φ30/12	Φ40/16
  30×10, 40×4	Φ40/16	Φ50/20
  40×10, 50×5, 50×6	Φ50/20	Φ65/25 (Φ75/30)
  50×8, 50×10, 60×6, 60×8	Φ65/25 (Φ75/30)	Φ75/30(Φ85/35)
  60×10, 80×6, 80×8, 80×10	Φ75/30(Φ85/35)	Φ100/40(Φ120/50)
  100×8, 100×10, 100×12	Φ100/40(Φ120/50)	Φ120/50
  150×12, 150×15	Φ150/60	Φ175/75

S1(n)-35 Halogen Free Bus Bar Insulation Heat Shrink Tube

Halogen-free and environmentally friendly polyolefin material, can be applied in 6kV to 36kV power switchgear, providing insulation enhancement, protection against flashover or accidental discharge. Especially suitable for switchgear with limited space, it can be used for circular and rectangular copper or aluminum busbars.
