S1(n)-10 6~24 KV Halogen Free Bus Bar Insulation Heat Shrink Tube

Union Polymer Material Co., Ltd.

Enquire

Compare & Bulk Enquire

Production Lead Time:

28 day(s)

Brand:

UPM heat shrink

Type of Payment:

T/T, D/P

Customised:

Yes

Description

Contact Supplier

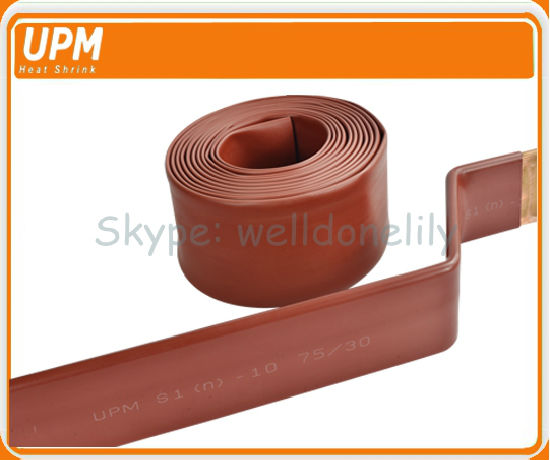

6~24 KV Halogen Free Bus Bar Insulation Heat Shrink Tube
Retangular or round shape bare bus bar protector or insulator

Features

Medium wall cross-linked polyolefin
Bus bar insulation and protection
Reduces bus bar clearance requirement
Halogen free, RoHS compliant
Protects against short circuit and electrical leakage caused by small animals
Operating temperature: -40~105 ℃
Shrink temperature: 125 ℃
Shrink ratio: 2.5:1

Typical application

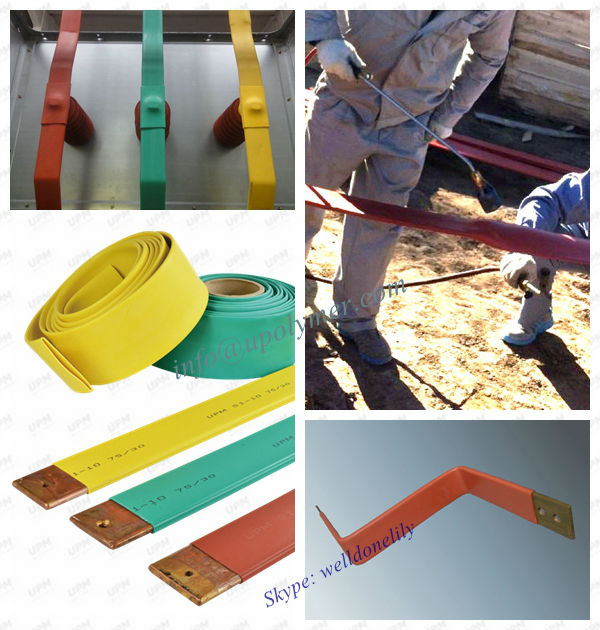

Suitable for insulation and protection of bus bar against accidental flashover up to 24 KV
Ideal for using in switchgears cabinets where space is limited and air spacing between bus
bars need to be kept at minimal

Cross reference

Raychem/ Tyco : BPTM

Dimension:
25/10 25m/roll
30/12 25m/roll
40/16 25m/roll
50/20 20m/roll
65/25 20m/roll
75/30 20m/roll
85/35 20m/roll
100/40 20m/roll
120/50 20m/roll
150/60 20m/roll
175/75 20m/roll

Properties
1.holding air test: More than 3 bendings on the bus bar, after heat shrink, there is no air gap between tube and the bare bus bar.
2.Low temperature: -40℃/4 hours, no cracking.
3.Pass the cutting test,5mm length along the longitudianl, after 110 ℃/168 hours,after shrinking,no cracking.
