S2(n) Halogen Free Thin Wall Cross-Linked Polyolefin Tubing for General Purpose
Production Lead Time:
28 day(s)
Shipping Method:
by sea
Brand:
UPM Heat Shrink
Port:
Dalian, China
Type of Payment:
T/T, D/P
Minimum Order Quantity:
100 piece(s)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

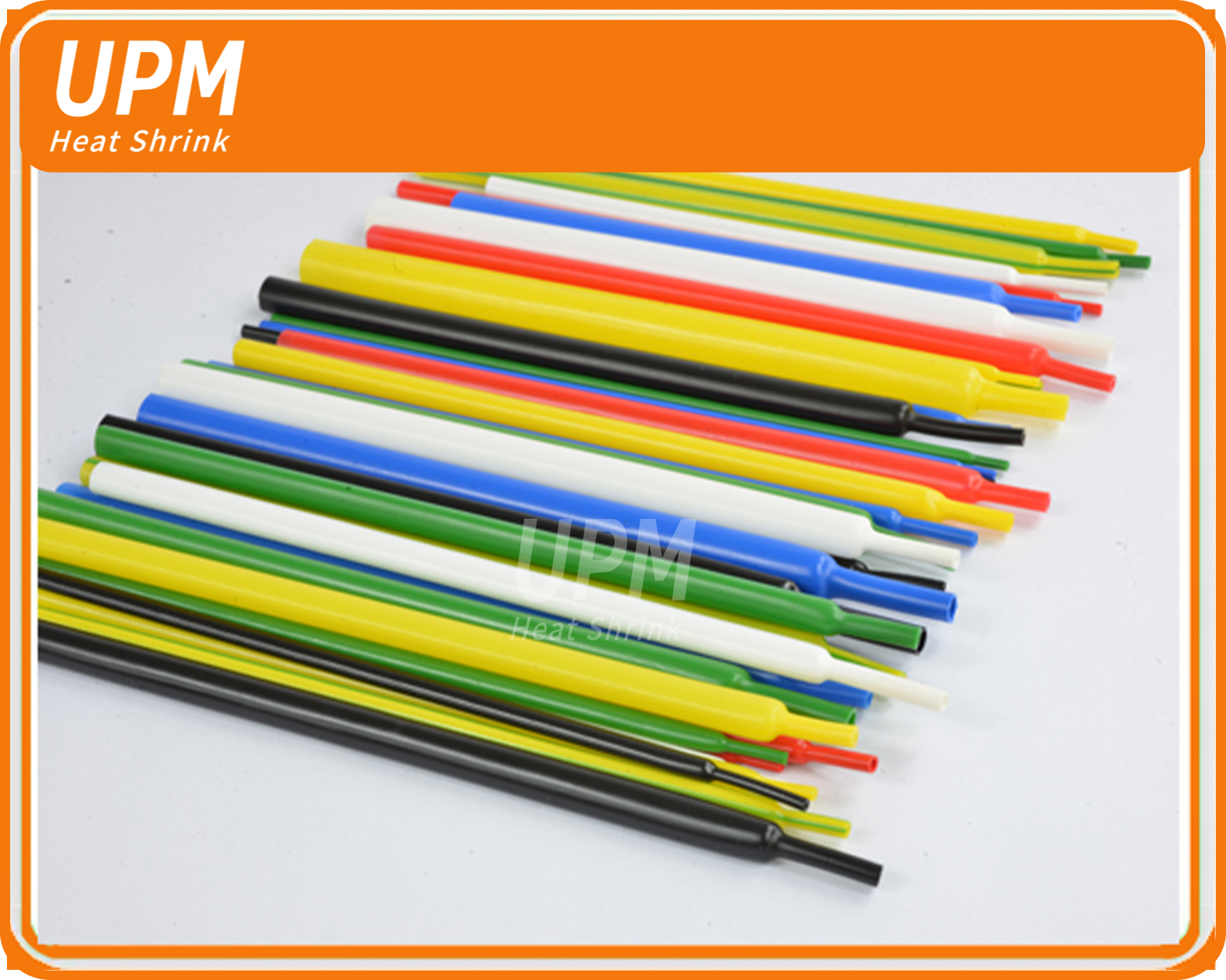

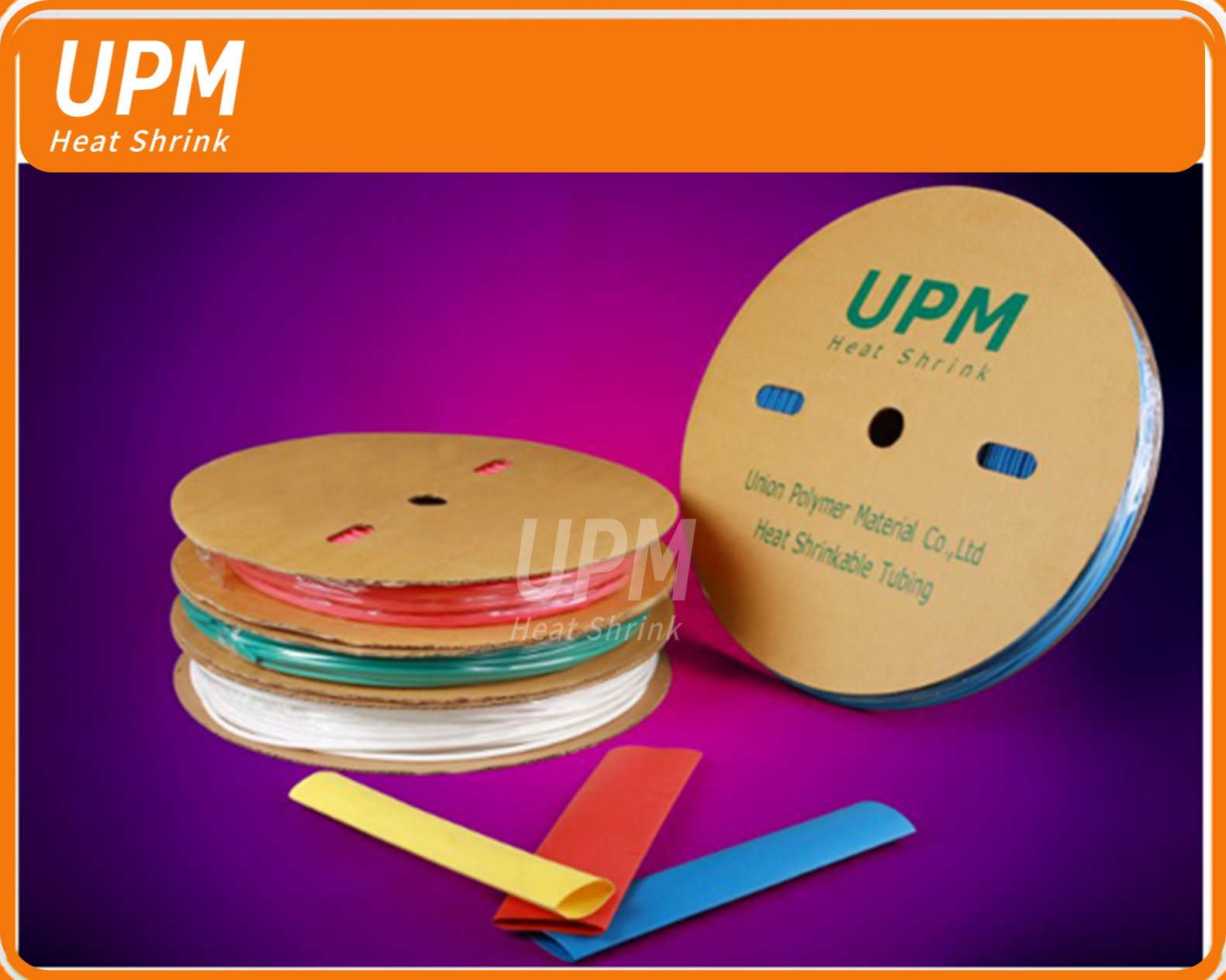

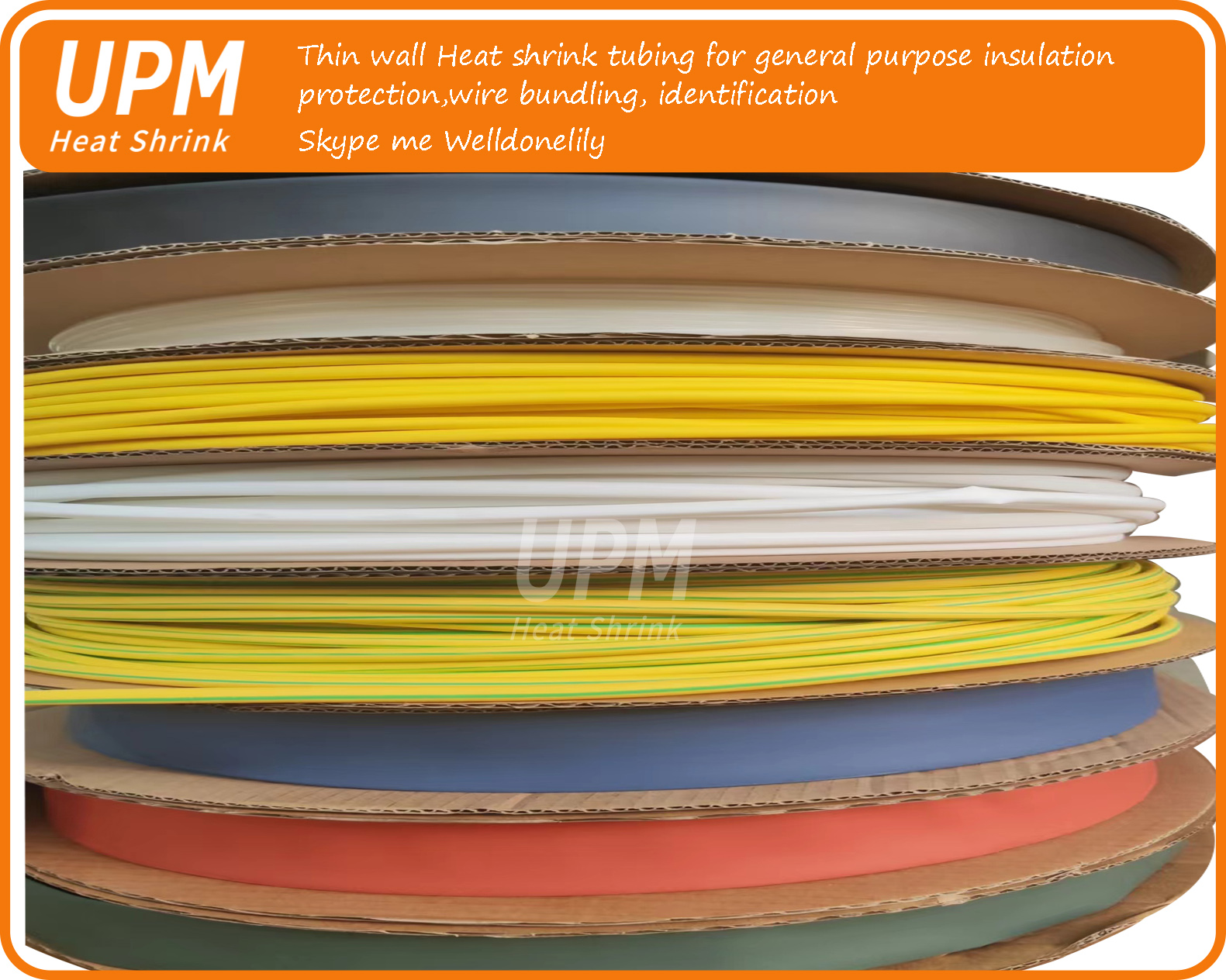

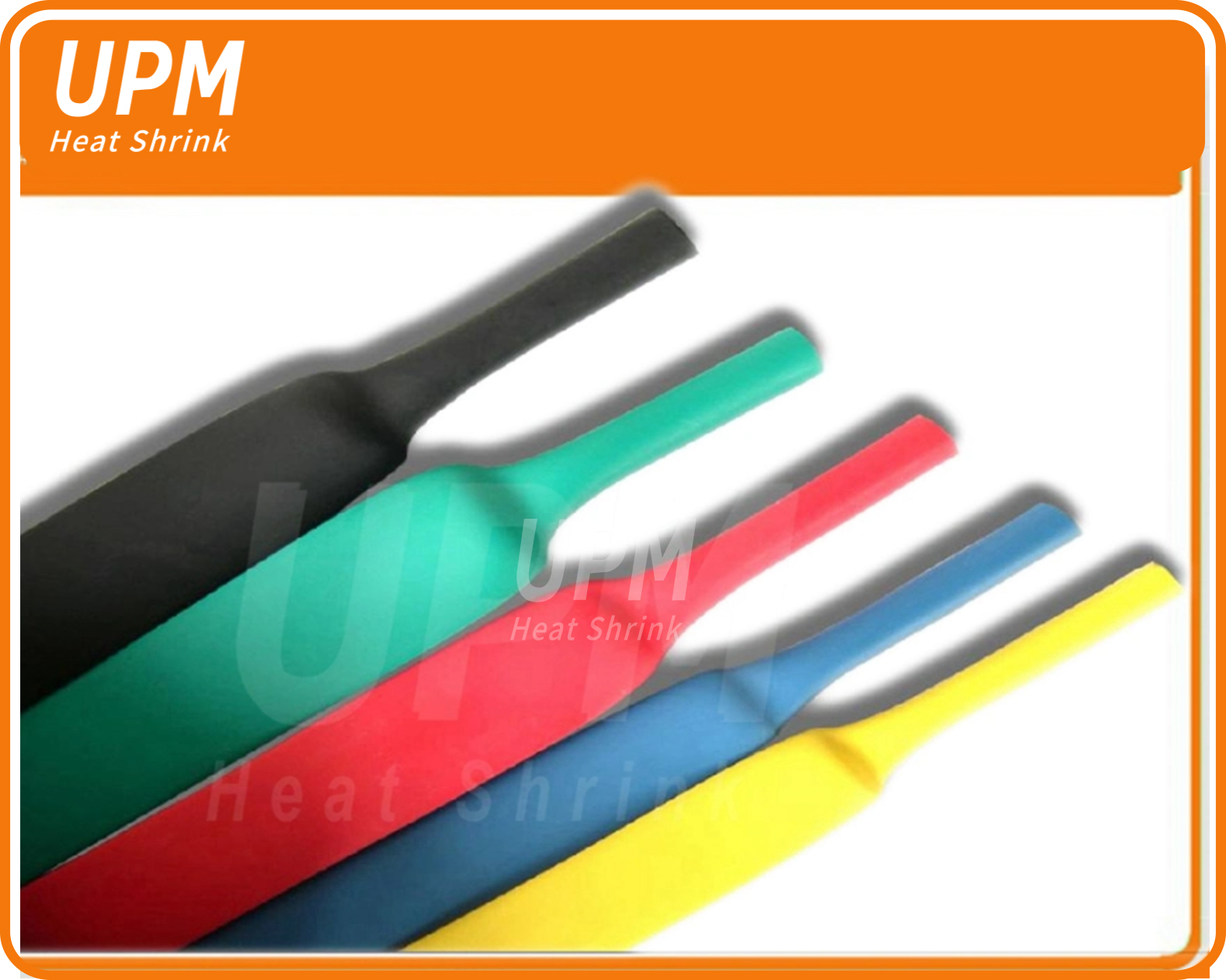

S2(n) halogen free thin wall heat shrink tubing for general purpose
Features
•Insulation, Protection, Identification
•Flame retardant VW-1(except clear)
•Halogen free, Flexible
•Wide range of colors
•Operating temperature: -40~125 ℃
•Shrink temperature: 125 ℃
•Shrink Ratio：2:1 & 3:1
•Voltage Class：600~1000 V
Typical application
• Ideal for electrical insulation, strain relief, wire bonding and light harness jacketing
• Common applications include electronic systems of subway, aircraft, submarine , control room facilities and sealed environment
Ordering
• Standard color : Red,Blue, Yellow, Green, Black, Clear
Shrink ratio 3:1
Dimension | ||||
Size | As supplied (mm) | After recovered (mm) | Standard length (m) | |
S2(n) | Inner diameter D (min.) | Inner diameter d (max.) | Wall thickness t (nom.) | |
Shrink ratio 2:1 | ||||
0.6 | 0.9±0.2 | 0.4 | 0.28±0.10 | 200 |
0.8 | 1.1±0.2 | 0.5 | 0.28±0.10 | 200 |
1.0 | 1.6±0.3 | 0.65 | 0.35±0.10 | 200 |
1.5 | 2.1±0.3 | 0.85 | 0.35±0.10 | 200 |
2.0 | 2.6±0.4 | 1.0 | 0.40±0.10 | 200 |
2.5 | 3.1±0.4 | 1.3 | 0.40±0.10 | 200 |
3.0 | 3.6±0.4 | 1.5 | 0.45±0.10 | 200 |
3.5 | 4.1±0.4 | 1.8 | 0.45±0.12 | 200 |
4.0 | 4.6±0.4 | 2.0 | 0.48±0.12 | 200 |
4.5 | 5.1±0.5 | 2.3 | 0.50±0.12 | 100 |
5.0 | 5.6±0.5 | 2.5 | 0.52±0.12 | 100 |
5.5 | 6.1±0.5 | 2.8 | 0.52±0.12 | 100 |
6 | 6.8±0.5 | 3.0 | 0.55±0.12 | 100 |
7 | 7.8±0.5 | 3.5 | 0.55±0.12 | 100 |
8 | 8.8±0.5 | 4.0 | 0.60±0.12 | 100 |
9 | 9.8±0.5 | 4.5 | 0.60±0.12 | 100 |
10 | 10.8±0.5 | 5.0 | 0.60±0.12 | 100 |
11 | 11.8±0.5 | 5.5 | 0.60±0.12 | 100 |
12 | 12.8±0.5 | 6.0 | 0.60±0.12 | 100 |
13 | 13.8±0.5 | 6.5 | 0.70±0.12 | 100 |
14 | 14.9±0.5 | 7.0 | 0.70±0.12 | 100 |
15 | 16.0±0.5 | 7.5 | 0.70±0.12 | 100 |
16 | 17.0±0.5 | 8.0 | 0.75±0.15 | 100 |
17 | 18.2±0.7 | 8.5 | 0.75±0.15 | 100 |
18 | 20.0±0.8 | 9.0 | 0.75±0.15 | 100 |
20 | 22.0±1.0 | 10.0 | 0.85±0.15 | 100 |
22 | 23.5±1.0 | 11.0 | 0.85±0.15 | 100 |
25 | 26.5±1.0 | 12.5 | 0.95±0.18 | 50 |
28 | 29.0±1.0 | 14.0 | 0.95±0.18 | 50 |
30 | 32.0±1.5 | 15.0 | 1.00±0.20 | 50 |
35 | 37.0±1.5 | 17.5 | 1.00±0.20 | 50 |
40 | 42.0±2.0 | 20.0 | 1.05±0.20 | 50 |
45 | 47.0±2.0 | 22.5 | 1.05±0.20 | 25 |
50 | ≥50 | 25 | 1.05±0.20 | 25 |
60 | ≥60 | 30 | 1.10±0.20 | 25 |
70 | ≥70 | 35 | 1.20±0.20 | 25 |
80 | ≥80 | 40 | 1.30±0.20 | 25 |
90 | ≥90 | 45 | 1.30±0.20 | 25 |
100 | ≥100 | 50 | 1.30±0.30 | 25 |
120 | ≥120 | 60 | 1.40±0.30 | 25 |
150 | ≥150 | 75 | 1.40±0.30 | 25 |
180 | ≥180 | 90 | 1.60±0.30 | 25 |
Shrink ratio 3:1 | ||||
1.5/0.5 | 2.2±0.4 | 0.5 | 0.45±0.12 | 200 |
3/1 | 3.8±0.4 | 1.0 | 0.55±0.12 | 200 |
4.5/1.5 | 5.2±0.5 | 1.5 | 0.60±0.12 | 100 |
6/2 | 6.6±0.5 | 2.0 | 0.65±0.12 | 100 |
9/3 | 9.7±0.5 | 3.0 | 0.80±0.15 | 50 |
12/4 | 13.2±0.8 | 4.0 | 0.85±0.15 | 50 |
15/5 | 16.0±0.8 | 5.0 | 0.90±0.15 | 50 |
18/6 | 19.5±0.8 | 6.0 | 1.00±0.20 | 50 |
24/8 | 26.5±1.0 | 8.0 | 1.20±0.20 | 25 |
30/10 | 32.0±1.5 | 10.0 | 1.20±0.20 | 25 |
39/13 | 41.0±1.5 | 13.0 | 1.50±0.30 | 25 |
50/16 | ≥50 | 17 | 1.65±0.30 | 20 |
60/20 | ≥60 | 20 | 1.75±0.30 | 20 |
70/23 | ≥70 | 23 | 1.75±0.30 | 20 |
80/26 | ≥80 | 26 | 1.85±0.30 | 20 |
90/30 | ≥90 | 30 | 2.15±0.30 | 20 |
100/33 | ≥100 | 33 | 2.35±0.30 | 20 |
