S4 6:1 High Shrink Ratio Tubing for Cable Joint
Production Lead Time:
28 day(s)
Model No.:
S4
Brand:
UPM Heat Shrink
Colour:
Black
Port:
FOB Dalian
Type of Payment:
T/T
Minimum Order Quantity:
500m
Package:
Yes
Customised:
Yes
Material:
PE
Tensile Strength:
14 MPa
Rated Voltage:
1000V
Application:
Low Voltage
Description
Contact Supplier
Description

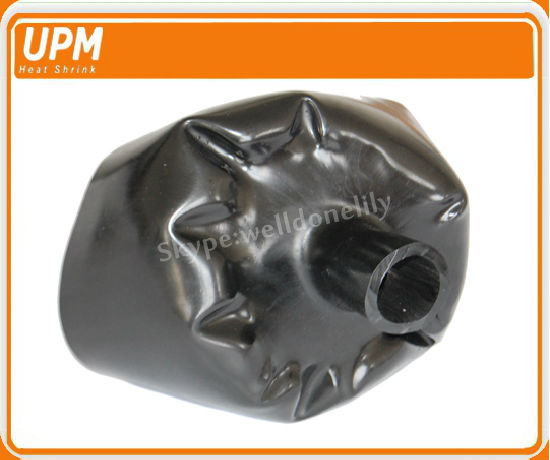

S4 6:1 high shrink ratio tubing for cable joints
Features
• Heavy wall semi-rigid cross-linked polyolefin
• Operating temperature: -55~105℃
• With or without adhesive liner Shrink temperature: 135 ℃
• Effective insulating over large transitions.
• High shrink ratio: 6:1
• Halogen free
Typical application
• Ideal for insulating and protecting irregular shaped cables connectors and components.
Dimensions
Reference
UPM S4
19.0/3.2
33.0/5.5
45.0/7.5
55.0/9 .2
66.0/11.0
76.0/12.7
87.0/14.5
115.0/19.2
160.0/26.6
178.0/29.6
235.0/40.0
Standard length: 1.22m/pc
Features
• Heavy wall semi-rigid cross-linked polyolefin
• Operating temperature: -55~105℃
• With or without adhesive liner Shrink temperature: 135 ℃
• Effective insulating over large transitions.
• High shrink ratio: 6:1
• Halogen free
Typical application
• Ideal for insulating and protecting irregular shaped cables connectors and components.
Dimensions
Reference
UPM S4
19.0/3.2
33.0/5.5
45.0/7.5
55.0/9 .2
66.0/11.0
76.0/12.7
87.0/14.5
115.0/19.2
160.0/26.6
178.0/29.6
235.0/40.0
Standard length: 1.22m/pc
