S5D Factory Price 5 Steps Ophthalmic Digital Slit Lamp with Imaging System
US $2650.00 - US $2750.00
Production Lead Time:
7 day(s)
Shipping Method:
Express way, air, sea
Brand:
Visionstar
Microscope Type:
Parallel
Magnification changer:
Revolving drum
Eyepiece:
12.5X
Illumination Source:
Imported LED
Max Illumination Intensity :
60000 Lux
Total magnification:
6X 10X 16X 25X 40X
Diameter of Vision field:
φ37 φ23 φ14 φ8.7 φ5.7mm (φ23 φ14 φ8.7optonal)
Diopter adjustment:
-7D~+7D
Slit image width:
0mm~14mm continuous
Slit image length:
1mm~14mm continuous
Description
Contact Supplier
Description

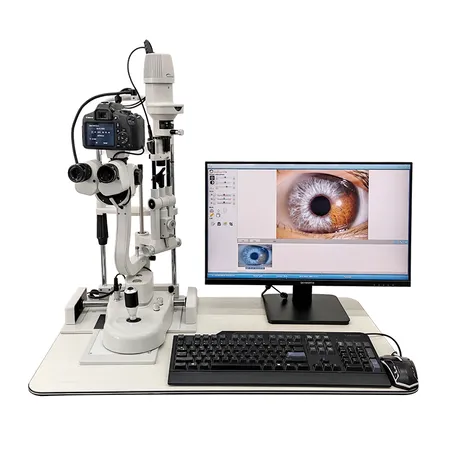

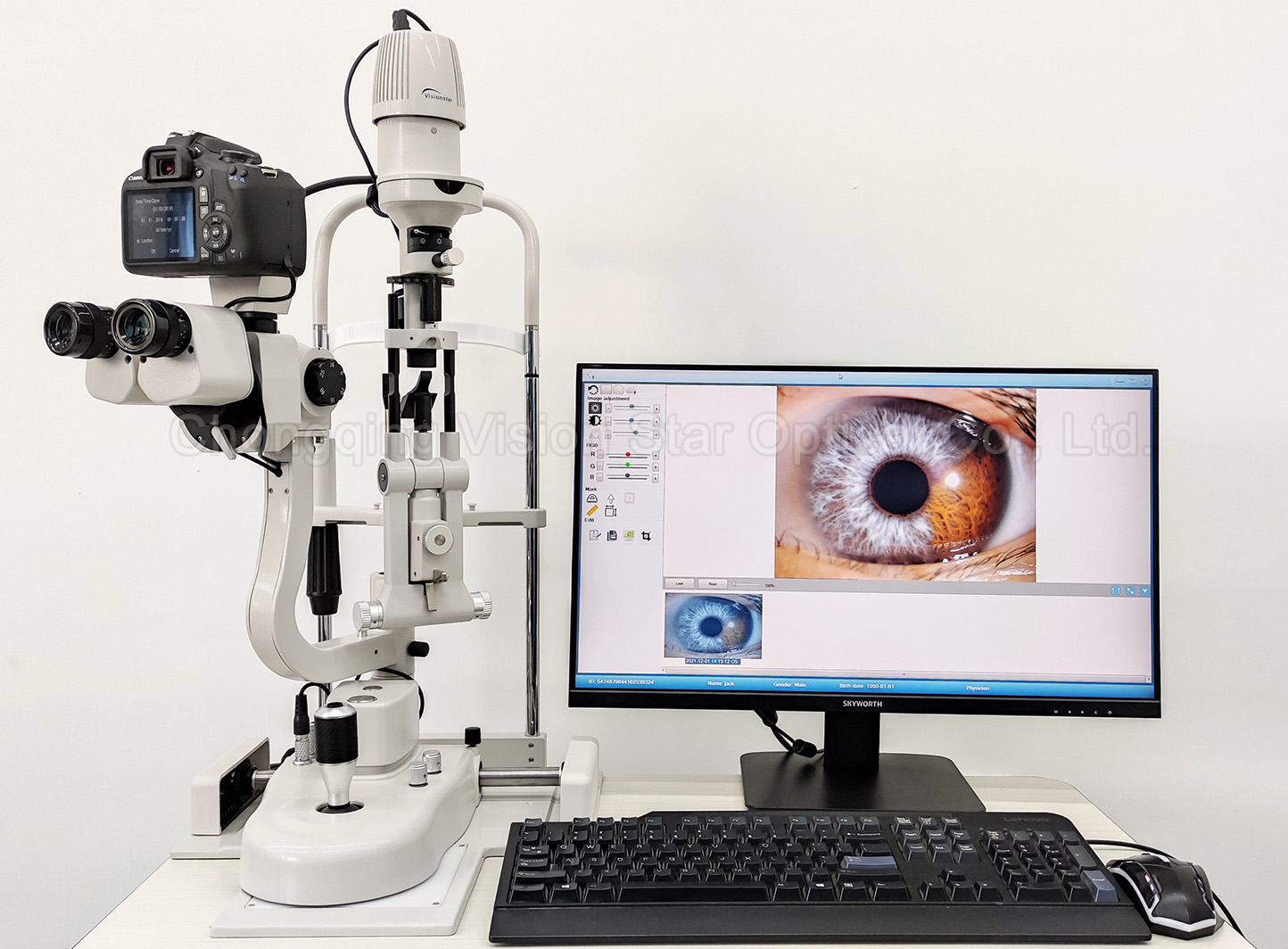

S5D LED Digital Slit Lamp
Features:
1. Outstanding Optic Quality Ensure the Comfortable View.
2. Precision Machining Makes the Smooth and Flexible Movement.
3.Professional & Multi-functional Software With Simple Humanized Human-computer Interface & Easy Operation.
4. Have both image capturing function and video capturing function Image processing for better Symptoms Diagnose.
5. Backup patient data base easily guarantee data safety.
6. Highest Quality Images Captured Which Impressive Every User.
7. Aspecial designed black cross in right eyepiece which enable to synchronise the image sharpness in eyepiece.

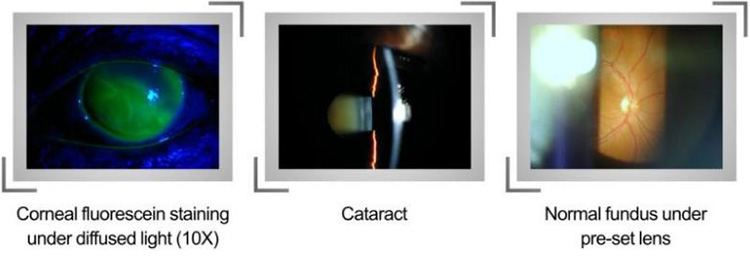

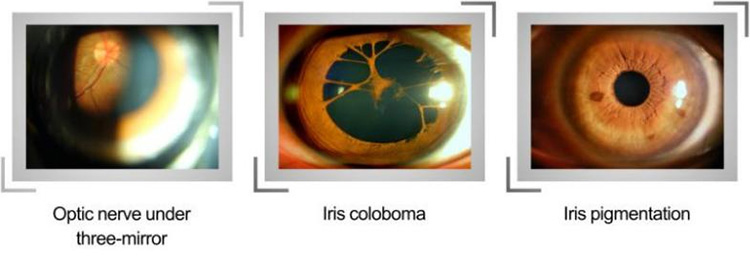

High Resolution Images Taken by S5D Digital Slit Lamp
Specifications:
| Model | S5D |
| Illumination Type | Top Illumination |
| Illumination Source | Imported LED Lamp |
| Max Illumination Intensity | 60000 Lux |
| Microscope Type | Parallel type, Galilean system |
| Magnification changer | Revolving drum |
| Eyepiece | 12.5X |
| Magnification | 6X 10X 16X 25X 40X |
| Visual field Diameter | 6X:33mm10x:22mm 16X:14mm 25X:8.5mm 40X:5.5mm |
| Diopter adjustment | -7D~+7D |
| Pupil range | 52mm~82mm |
| brightness | continuously adjustable |
| Slit image width | 0mm~14mm continuous |
| Slit image length | 1mm~14mm continuous |
| Slit image angle | 0~180 continuously rotation |
| illumination tilting | 5 10 15 20 |
| Slit aperture size | 14 10 5 3 1 0.2 (mm) & 1~14mm continuously |
| Filter | Heat absorption, Grey, Redfree(Green), Cobalt blue |
| Fixation | Red LED 3.5V |
| Image collector | None |
| Background illumination | None |
| Input voltage | 70VA |
| Input power | 100V~240V 48~62HZ |
| External packing | Carton box |
| Dimension | 740”650”450mm |
| weight | 23kg |
