SA2300 three phase Power Quality Analyzer
US $1012.00 - US $1215.00
Production Lead Time:
30 day(s)
Shipping Method:
By Courier, Air, Sea, etc.
产品型号:
SA2300
Brand:
Suin
Colour:
Blue
尺寸:
158 x 200 x 47mm
港口:
Beijing
Type of Payment:
T/T Advance
Minimum Order Quantity:
1 piece
Package:
Yes
Customised:
Yes
类型:
电度表
Description
Contact Supplier
Description
Overview
SA2300 can calculate a large number of electrical parameters and display them quickly. The device offers extensive and powerful measurements functions to check power distribution system, so it can detect quality of power grid and electrical characteristics rapidly and conveniently.
Design Features
- Economical, compact and simple to use
- Provide all necessary measurement function

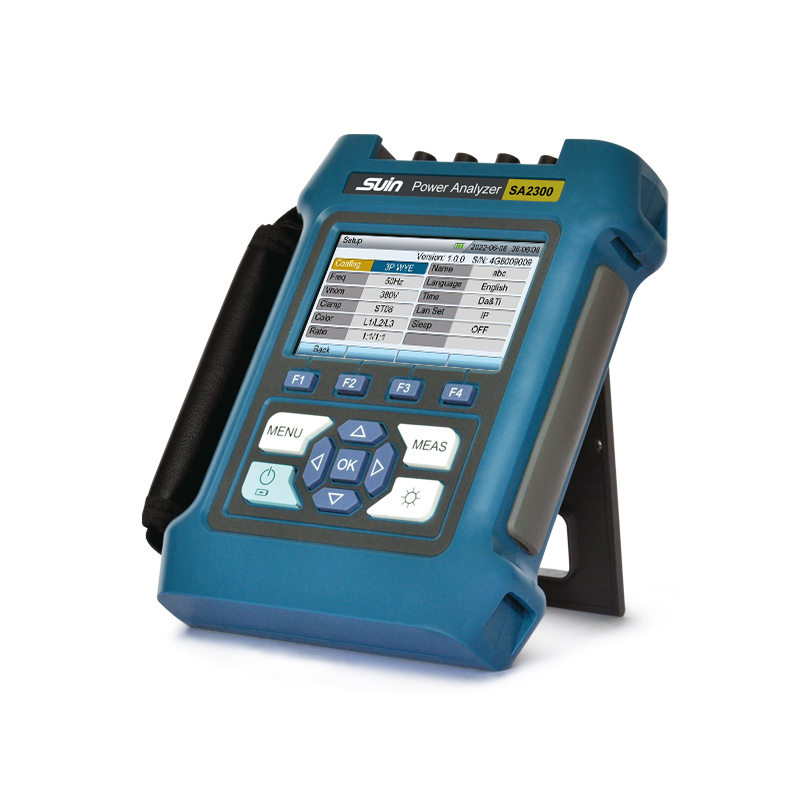

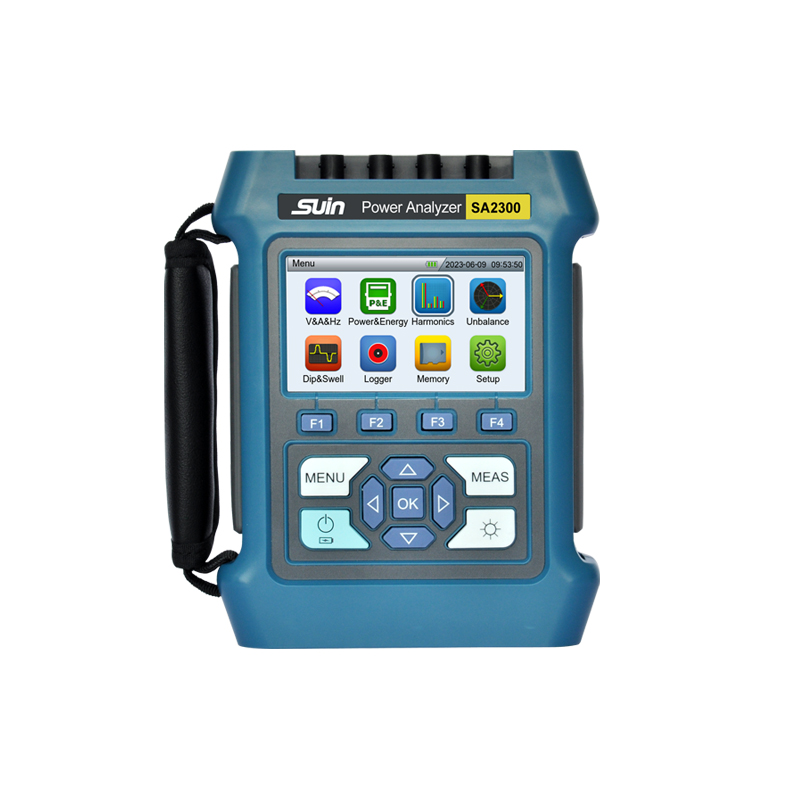

- 4.3 inch color LCD touch screen
- 32GB Micro SD card is used for storage
Advance function interface
1. Track harmonics up to 51th
2. 4.3 inch touch screen display for a easier operation
3. Powerful logger function
4. Equipped with PC software for data analysis
Specifications
| INPUT | ||

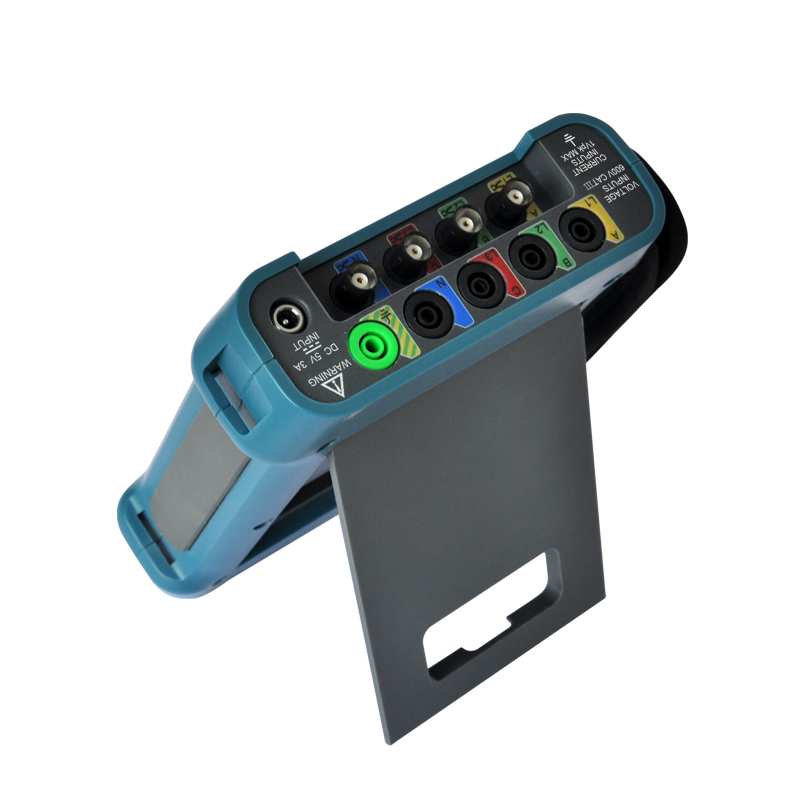

| 4 current input channels+4 voltage input channels | ||
| 3 PHASE MULTI-POWER SYSTEM | ||
1P/2W(1P+NEUTRAL 1P IT NO NEUTRAL) 1P/3W(1P Split Phase) 3P/3W(3P DELTA) 3P/4W (3P WYE) | ||
| DATA REFRESH RATE | ||
| 1s | ||
| MEASUREMENT | ||
Voltage/ACV (Urms, Upk) | Range | 5~600Vrms |
Accuracy (L1/A,L2/B,L3/C) | ±0.2%±2counts | |
| PT ratio | 1 to 10000, variable | |
Current/ACA (Irms, Ipk) | Range | 1500A, with SY-1500A current probe |
| Accuracy | ±0.2%±5counts | |
| Optional current probe | ST08-5A, CTC0080-50A,CTC0130-100A, PY-3000A, SY-6000A | |
| CT ratio | 1 to 10000, variable | |
| Frequency | Range | 42.5-57.5Hz (50Hz nominal) 51-69Hz (60Hz nominal) |
| Harmonic | Number | 1-51th |
| Accuracy | ±0.1%±n x 0.1% | |
| THD | ±2.5% | |
| Power | Active power (P), Reactive power(Q), Apparent power(S), Power Factor (PF), cosФ (DPF) | |
| Energy | Active energy (EP), Reactive entergy(EQ), Apparent energy(ES) | |
| Transient Event | Dips/swell | |
| Logger | Interval | 1s to 60 minutes |
| Memory | 32G Micro SD card | |
| GENERAL | ||
| Display | 4.3 inch color touch screen/480x272 | |
| Language | Multi languge including Chinese, English, etc. | |

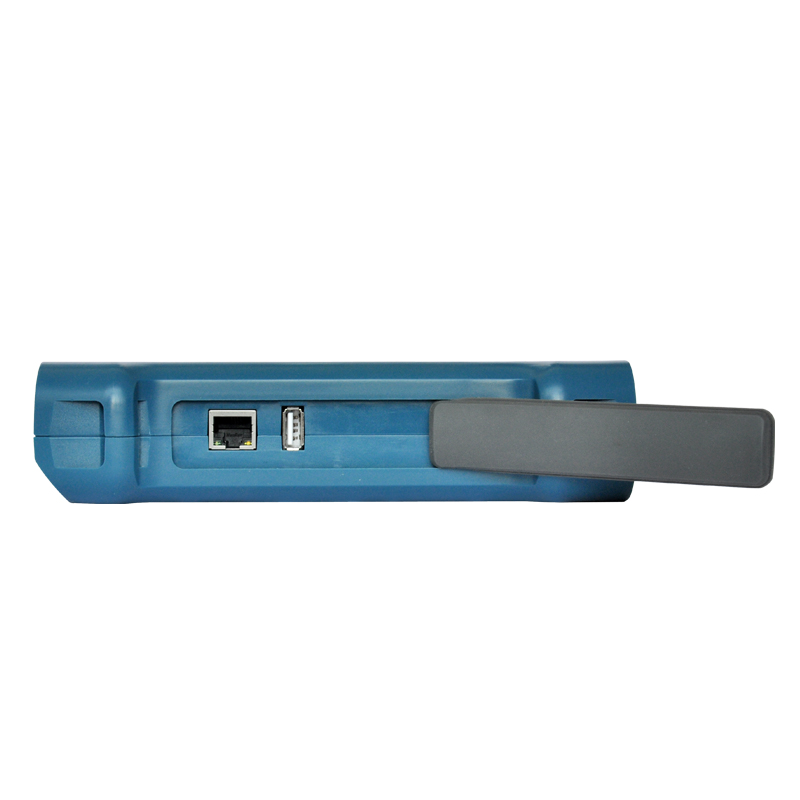

| Communication Port | USB Host, LAN | |
| Dimension/Weight | 158x200x47mm/1kg | |

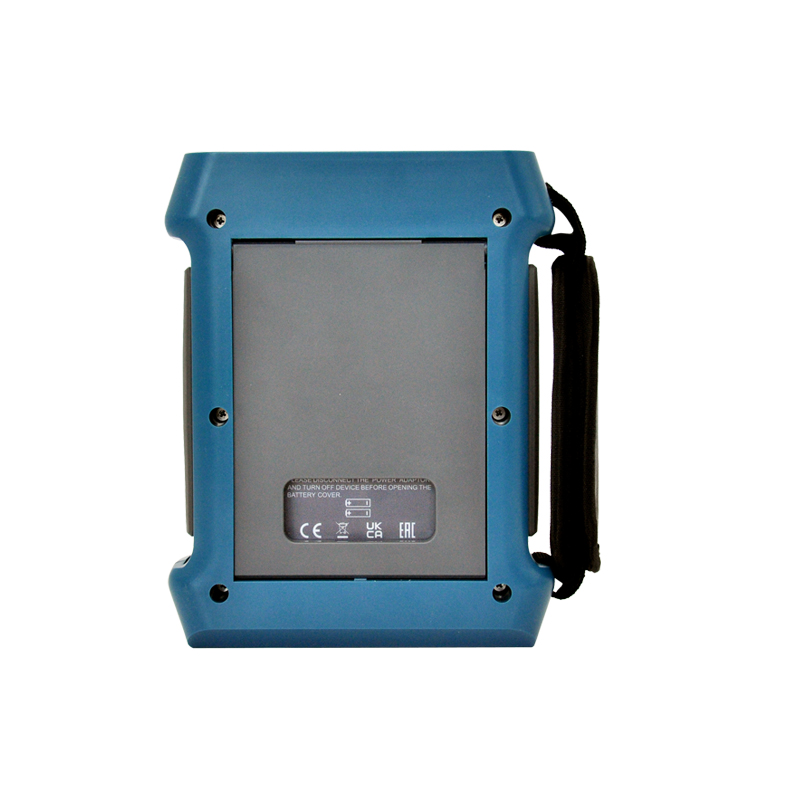

| Power | 18650 lithium ion 3.6V x 2, 5100mAh / 6h or DC 5V/3A adapter | |
| Safety standard | IEC61010-1, CATIII 600V | |
