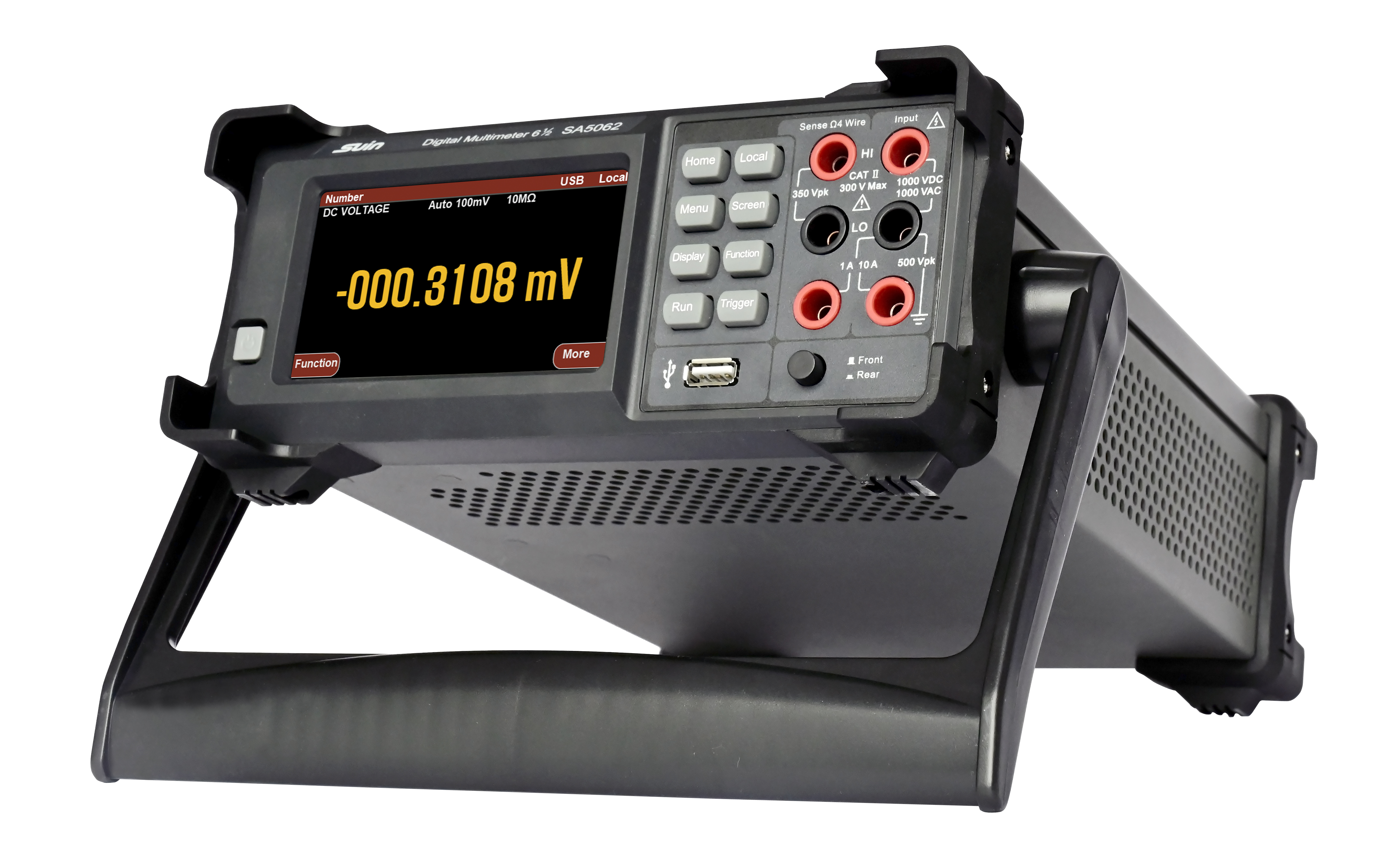

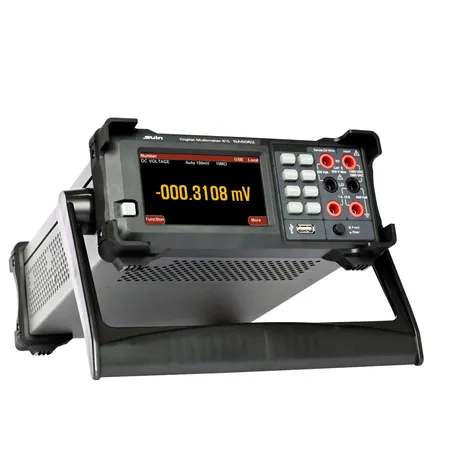

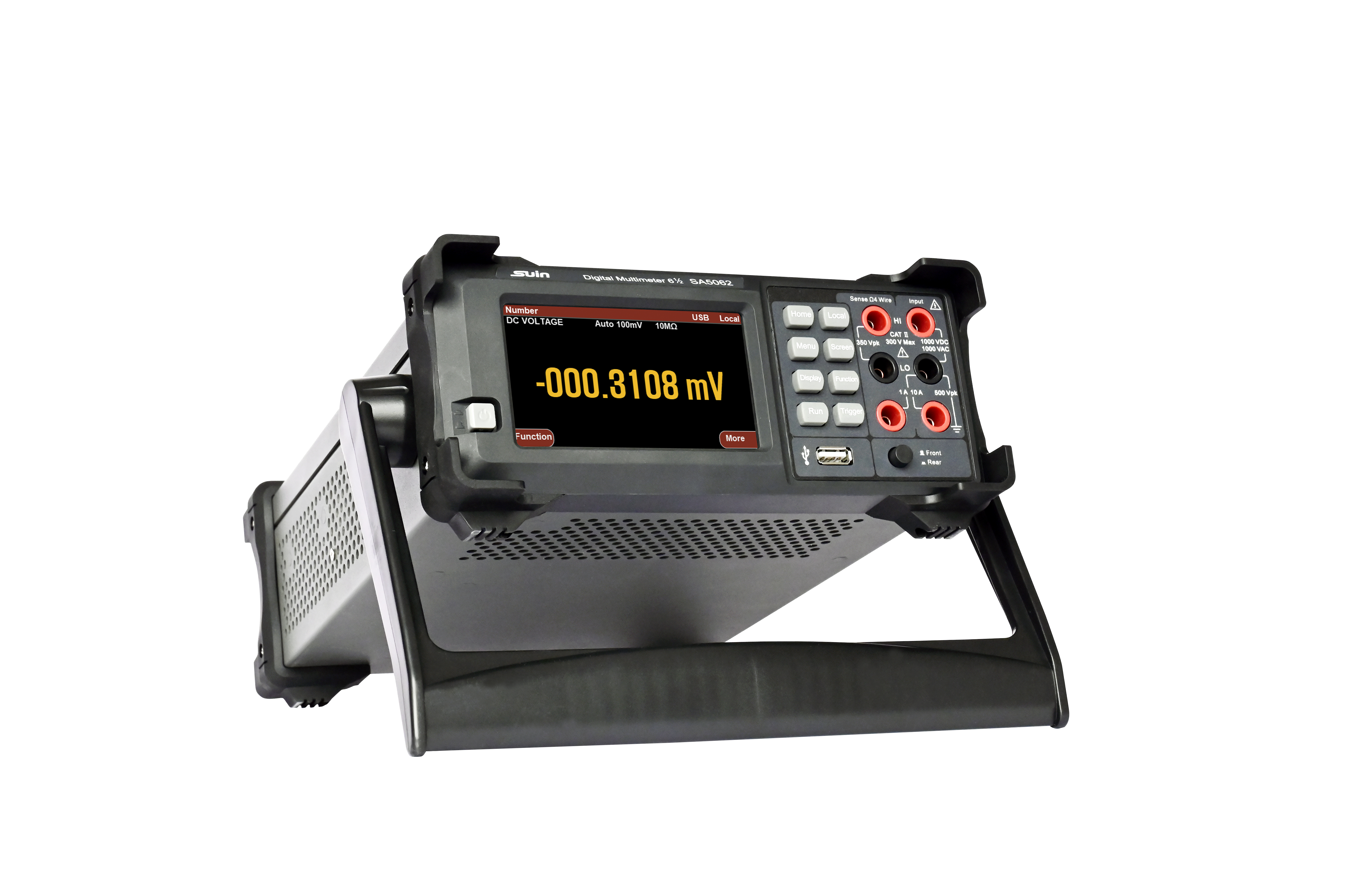

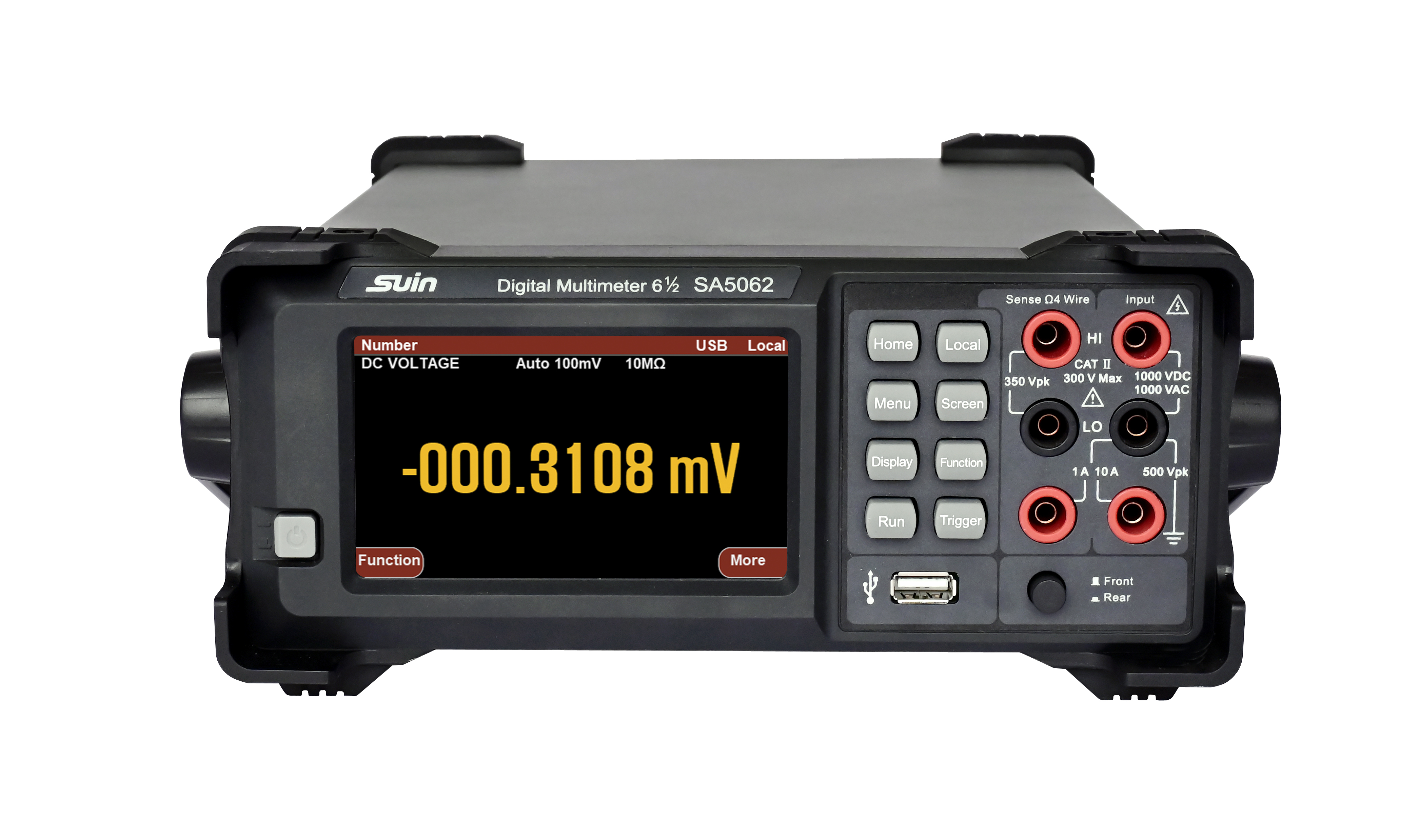

SA5062 6 1/2 Digital Multimeter
Description
Contact Supplier
Description
| SA5062 | ||
| Basic Function | Range | Best Accuracy ± (% reading + % range) |
| DC Voltage | 100mV/1V/10V/100V/1000V | ± (0.0035% + 0.0005%) |
| AC Voltage | 100mV/1V/10V/100V/1000V | ± (0.06% + 0.04%) |
| DC Current | 100 µA/1mA/10mA/100mA/1A/10A | ± (0.05%+0.006%) |
| AC Current | 100 µA/1mA/10mA/100mA/1A/10A | ± (0.1%+0.04%) |
| Resistance | 100Ω/1KΩ/10KΩ/100KΩ/1MΩ/10MΩ/100MΩ | ± (0.01%+0.001%) |
| Capacitance | 1 nF/10 nF/100 nF/1 µF/10 µF/100 µF | ± (0.9%+1%) |
| Frequency | 3 Hz～1 MHz | ± 0.02% |
| Temp | PT100/PT385/PT3916 | N/A |
| Tcouple | K/J/R | N/A |
| Diode | 10V | N/A |
| Continuity | 1KΩ | N/A |
| Features | ||
| Reading Rate | 10K reading/s | |
| Auto Range | ● | |
| Null | ● | |
| Trigger | ● | |
| Store/Recall | ● 4GB | |
| Math | MAX/MIN,Rel,dB, dBm, Limit, Statistic | |
| General Characteristics | ||
| Safety | IEC61010-1: 2001, CAT Ⅰ 1000V/CAT Ⅱ 600V, Class of pollution: 2 | |
| Interface | USB Host, USB Device, RS-232, LAN, GBIP (optional) | |
| Power | 110 V/220 V (1±10%), 50 Hz/60 Hz, 15 VA | |
| Dimension & Weight | 375х260х106 mm, 3.0 kg | |
