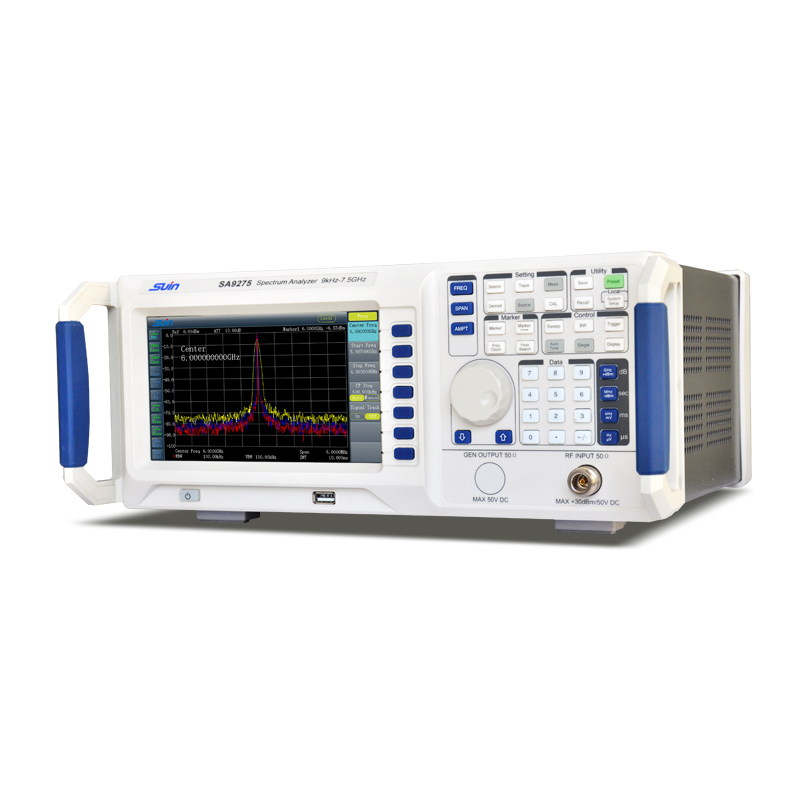

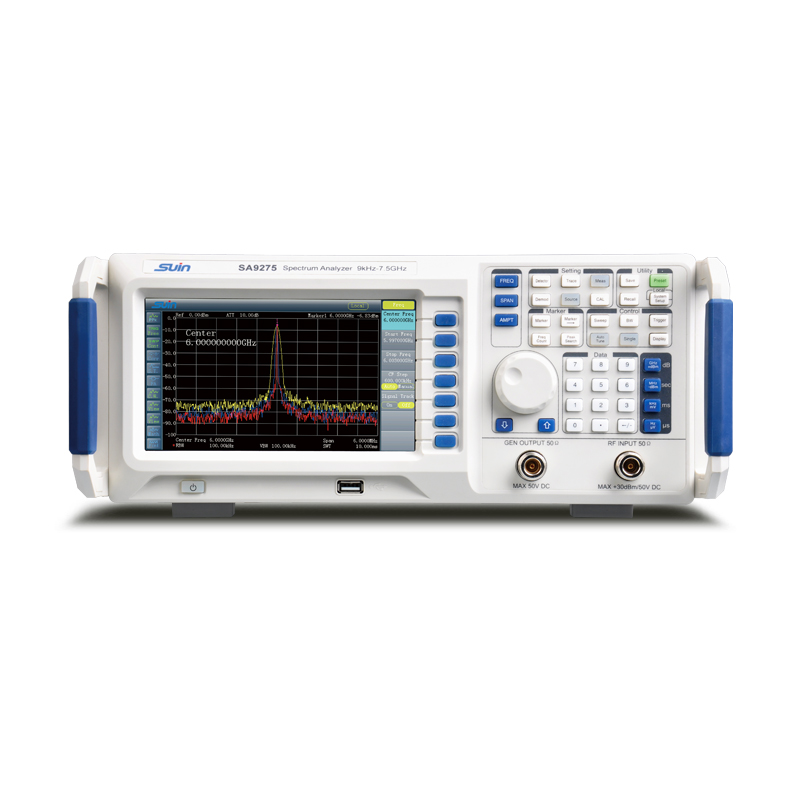

SA9275 Spectrum Analyzers
US $1265.00 - US $4678.00
Production Lead Time:
7-15 day(s)
Shipping Method:
By Courier, Air, Sea, Road, Railway, etc.
Model No.:
SA9275
Brand:
Suin
Description
Contact Supplier
Description
Design Features
- Frequency range from 9kHz to 7.5GHz
- -160dBm Display Average Noise Level (Min.)
- < -100 dBc/Hz @10 kHz Offset Phase Noise (Typ.)
- Total Amplitude Accuracy < 0.8 dB
- Preamplifier and EMI filter are standardly configured
Specifications
| SA9115 | SA9130 | SA9232 | SA9275 | |
| Frequency | ||||
| Range | 9kHz to 1.5GHz | 9kHz to 3.0GHz | 9kHz to 3.2GHz | 9kHz to 7.5GHz |
| Resolution | 1Hz | |||
| Aging Rate | <5×10-6/year | <1×10-6/year | ||
| Frequency Span | ||||
| Frequency Span Range | 0Hz, 100Hz to 1.5GHz | 0Hz, 100Hz to 3GHz | 0Hz, 100Hz to 3.2GHz | 0Hz, 100Hz to 7.5GHz |
| Uncertainty | ±span/(sweep points-1) | |||
| SSB Phase Noise (fc=1.0GHz) | -80dBc/Hz @10 kHz offset | -96dBc/Hz @10 kHz offset | ||
| Bandwidth | ||||
| Resolution Bandwidth (-3dB) | 10Hz ~ 1MHz, step 1-3-10, | |||
| RBW Uncertainty | 10%, nominal (RBW>1kHz) | |||
| 20%, nominal(RBW≥10Hz, sweep time≥5s) | ||||
| Video Bandwidth (-3dB) | 1Hz to 1MHz, step 1-3-10 | |||
| Amplitude | ||||
| Range | DANL to +30dBm | DANL to +20dBm | ||
| Maximum Input Level | DC Voltage: 50V | |||
| CW RF Power: +30dBm (1.0W) | CW RF Power: +20dBm (0.1W) | |||
| Max.Damage Level: +40dBm (10W) | Max.Damage Level: +30dBm (1W) | |||
| Displayed Average Noise Level (DANL) | ||||
| DANL (Preamplifier Off) | typ. -125 dBm | typ. -135 dBm | ||
| DANL (Preamplifier On) | typ. -135 dBm | typ. -152dBm | ||
| Reference Level Range | -100 dBm to +30 dBm, step 1 dB | |||
| Sweep | ||||
| Sweep Time Range | 10 ms to 3000 s (100Hz≤Span≤3GHz) | 1ms to 7500 s (100Hz≤Span≤7.5GHz) | ||
| 20 μs to 3000 s (Span=0 Hz) | 20 μs to 7500 s (Span=0 Hz) | |||
| Sweep Time Uncertainty | 5%, nominal (100Hz≤Span≤7.5GHz) | |||
| 0.5%, nominal (Span=0 Hz) | ||||
| Sweep Mode | Continuous, Single | |||
| Trigger | ||||
| Trigger Source | Free, Video, External | |||
| External Trigger Level | 5 V TTL level | |||
| Advanced Measurement | ||||
| Channel Power, Adjacent Channel Power, N-dB bandwidth, Occupied Bandwidth | ||||
| EMI | 200Hz, 9kHz, 120kHz | |||
| Input/Output | ||||
| RF Input Impedance | 50 Ω | |||
| Standard frequency | Frequency: 10MHz | |||
| Amplitude: 0dBm~10dBm (input) -3dBm to +3dBm (output) | ||||
| Tracking Generator (-TG Model) | ||||
| TG Frequency range | 9kHz to 1.5GHz | 9kHz to 3GHz | 100kHz to 3.2GHz | 100kHz to 7.5GHz |
| TG Output level range | -20dBm to 0dBm | -40dBm to 0dBm | ||
| TG Output level resolution | 1 dB | |||

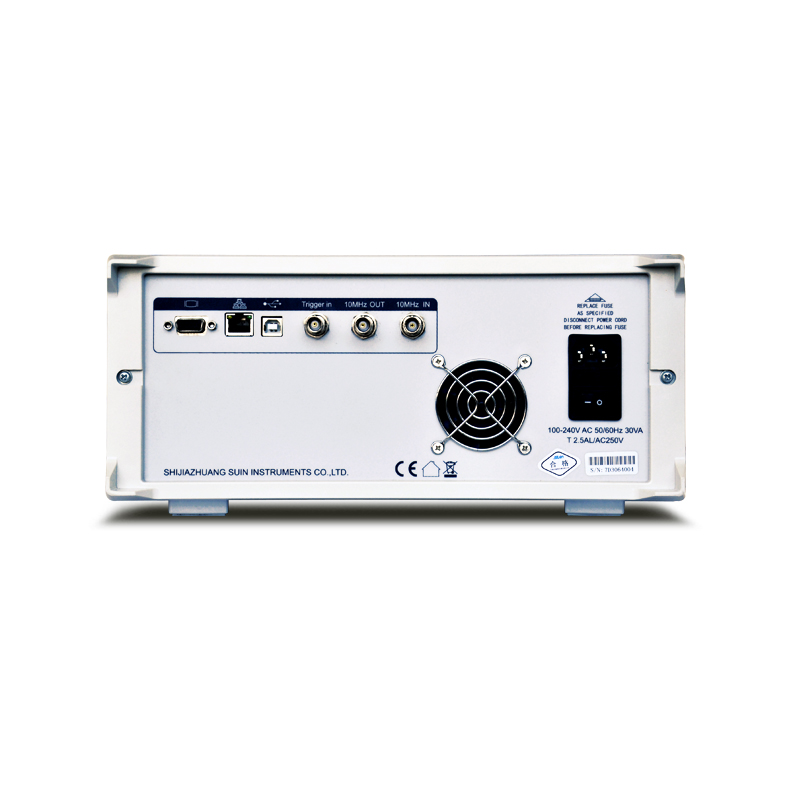

| Interface | ||||
| Type | USB Host & Device, LAN, VGA, RS-232 (only SA9100 series available) | |||
| General Characteristic | ||||
| Power Supply | Input Voltage: AC100V to 240V | |||
| Frequency: 50/60Hz (1±10%) | ||||
| Power Consumption: 35W | ||||
| Dimension & Weight | 363*154*327 mm, Approx. 6.0 kg | 363*154*327 mm, Approx. 6.5kg | ||
