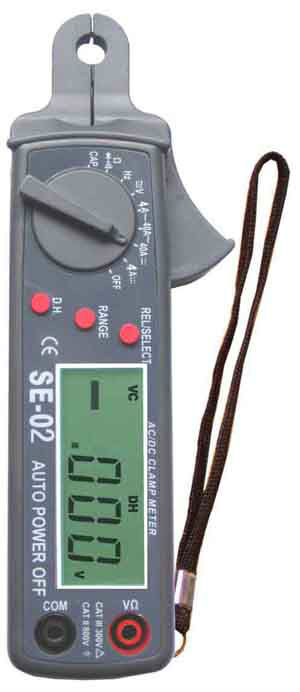

SE-02 DC/AC Clamp Meter,4A/40A

Description

Contact Supplier

High resolution DC/AC 1mA
23mm large jaw diameter
One Touch Zero for DCA adjustment
Large 3 3/4 digits LCD (3999 counts)
Auto range, Auto power off, Auto polarity display
Auto zero adjustment, Auto units display,Data hold
Diode & Continuity Test,Capacitance Test
Specification
Specifications Range Accuracy ±(%rdg+dgts)
DC Current 4A ±3.0%rdg±2
40A ±2.0%rdg±0.02
AC Current 4A ±2.5%rdg+3d
40A ±2.0%rdg+3d
DC Voltage 400mV ±1.0%rdg±2
4V/40V/400V/1000V ±0.8%rdg±2
AC Voltage 400mV ±1.8%rdg±5d
4V/40V/400V ±1.0%rdg±3d
750V ±1.5%rdg±3d
Frequency 9.999Hz unspecified
99.99Hz-9.999MHz ±0.2%rdg±3
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±1.0%rdg±2
40MΩ ±1.5%rdg±2
Capacitance 40nF ±2.5%rdg±10
400nF/4μF ±2.0%rdg±4
40μF ±2.5%rdg±4
Continuity If the resistance is less than 100( Ω ), the beeper will sounds continuously
Diode Display read approx.Forward voltage of diode. Accuracy:±(3.0%rdg+3)
Weight Approx. 180g (including battery)
Dimensions 183mm(L) x 43mm(W) x 31mm(H)
