SE-1200 Optical Equipment 3D Patternless Auto Lens Edger with Scanner
US $4100.00 - US $4400.00
Production Lead Time:
7 day(s)
Shipping Method:
Express way, air, sea
Brand:
Visionstar
Cutting diameter:
<80mm
Grinding precision:
+0.1mm
Grinding wheel diameter:
100mm
Sharp edge minimum processing size:
22mm
Flat edge minimum processing size:
20mm
Box size:
740mm*600mm* 590mm
Net weight:
46kg
Gross weight:
56kg
Description
Contact Supplier
Description

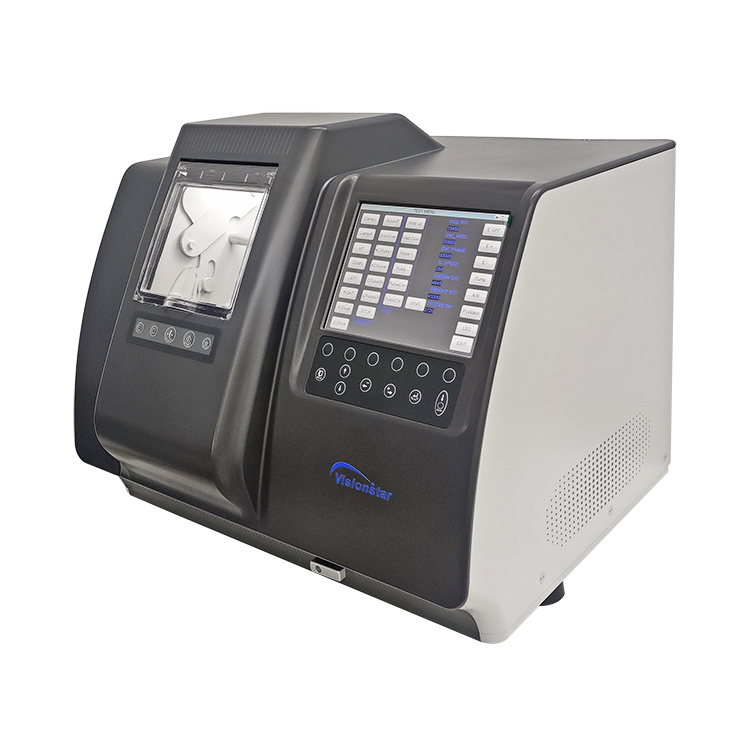

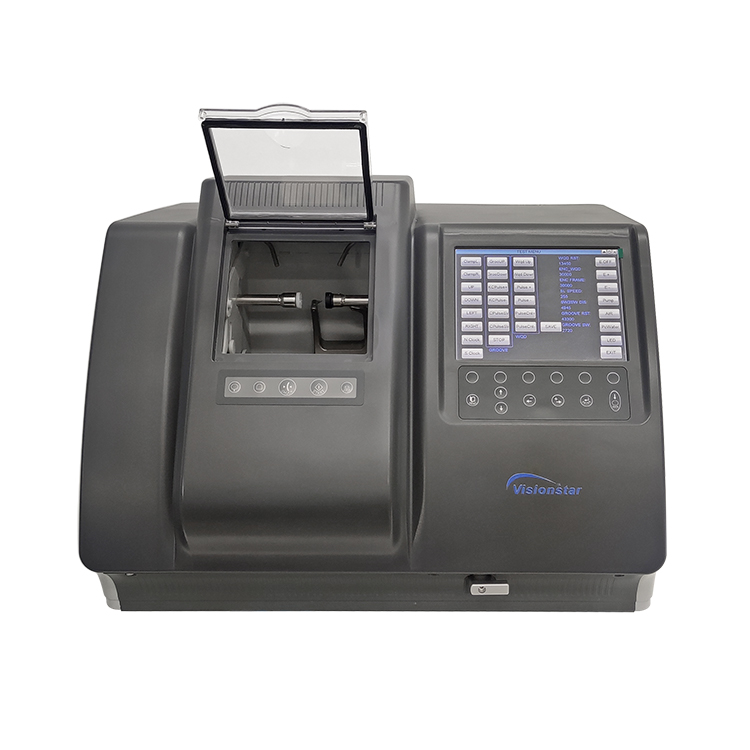

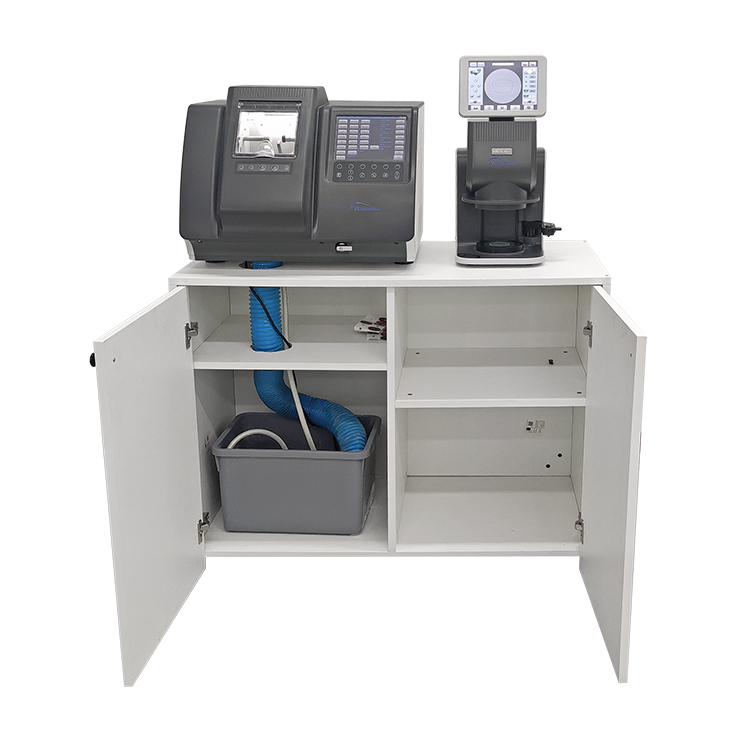

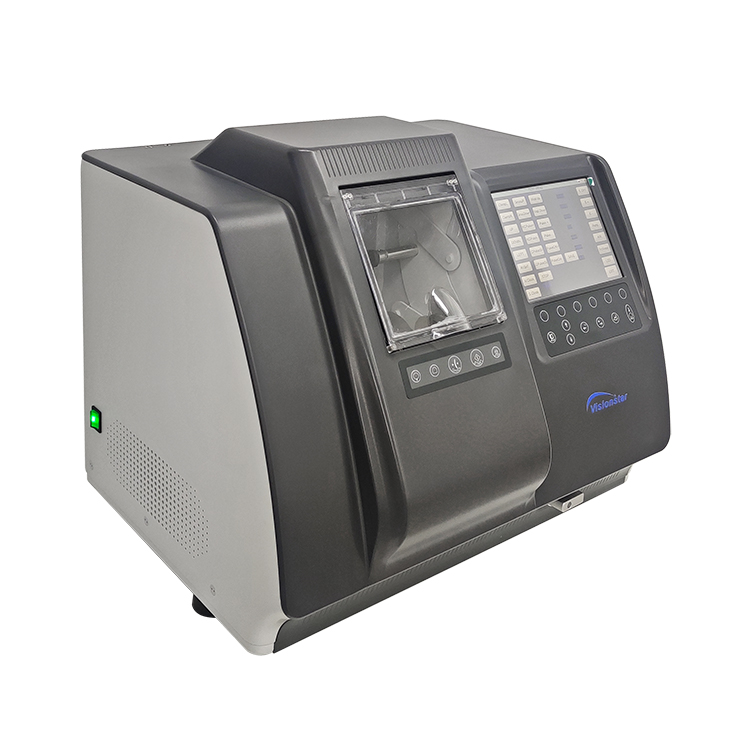

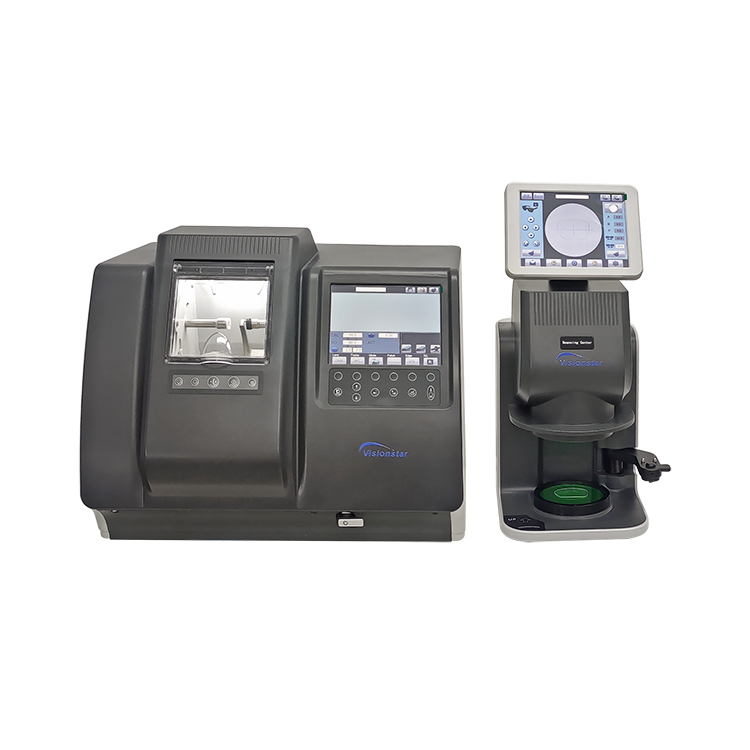

SE-1200 3D Patternless Auto Lens Edger
Features:
1. Precise and stable EDGE-OS operating system.
2. Water supply system: Circulating water supply by pump or solenoid valve
3. Display: 8 inch color HD touch screen
4. Image Storage: Up to 500 images
5. Applicable for various lens materials: resin, PC, glass (glass grinding wheel needs to be customized) and so on.
6. Advanced scanner provides accurate lens or pattern data which can easily be transmitted to lens edger by just touching one button on the screen.
Edger Interface:
Scanner Interface:
Technical Specifications:
| SE-1200 Edger | |
| Power supply | AC220V 50Hz 900W |
| Cutting diameter | <80mm |
| Grinding precision | +0.1mm |
| Grinding wheel diameter | 100mm |
| Sharp edge minimum processing size | 22mm |
| Flat edge minimum processing size | 20mm |
| Box size | 740mm*600mm* 590mm |
| Net weight | 46kg |
| Gross weight | 56kg |

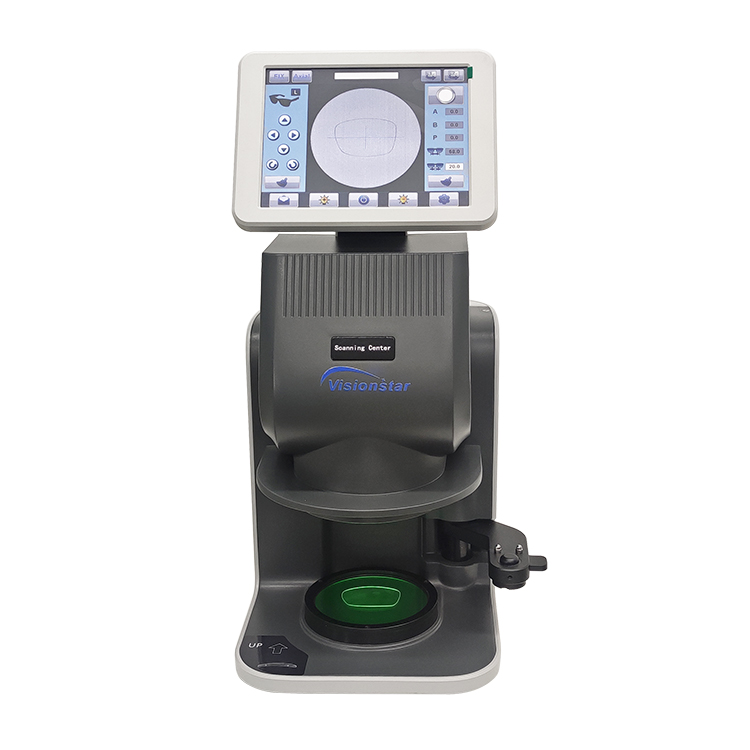

| SC-1200 Scanner | |
| Number of stored images | 50 |
| Scan time | Less than 3 seconds |
| Scanning accuracy | ±0.1mm |
| Display | 8 "color HD touch screen |
| Power supply | AC100-240V 50/60HZ 20VA |
| Box size | 610mm*400mm*340mm |
| Net weight | 9.5kg |
| Gross weight | 12kg |
