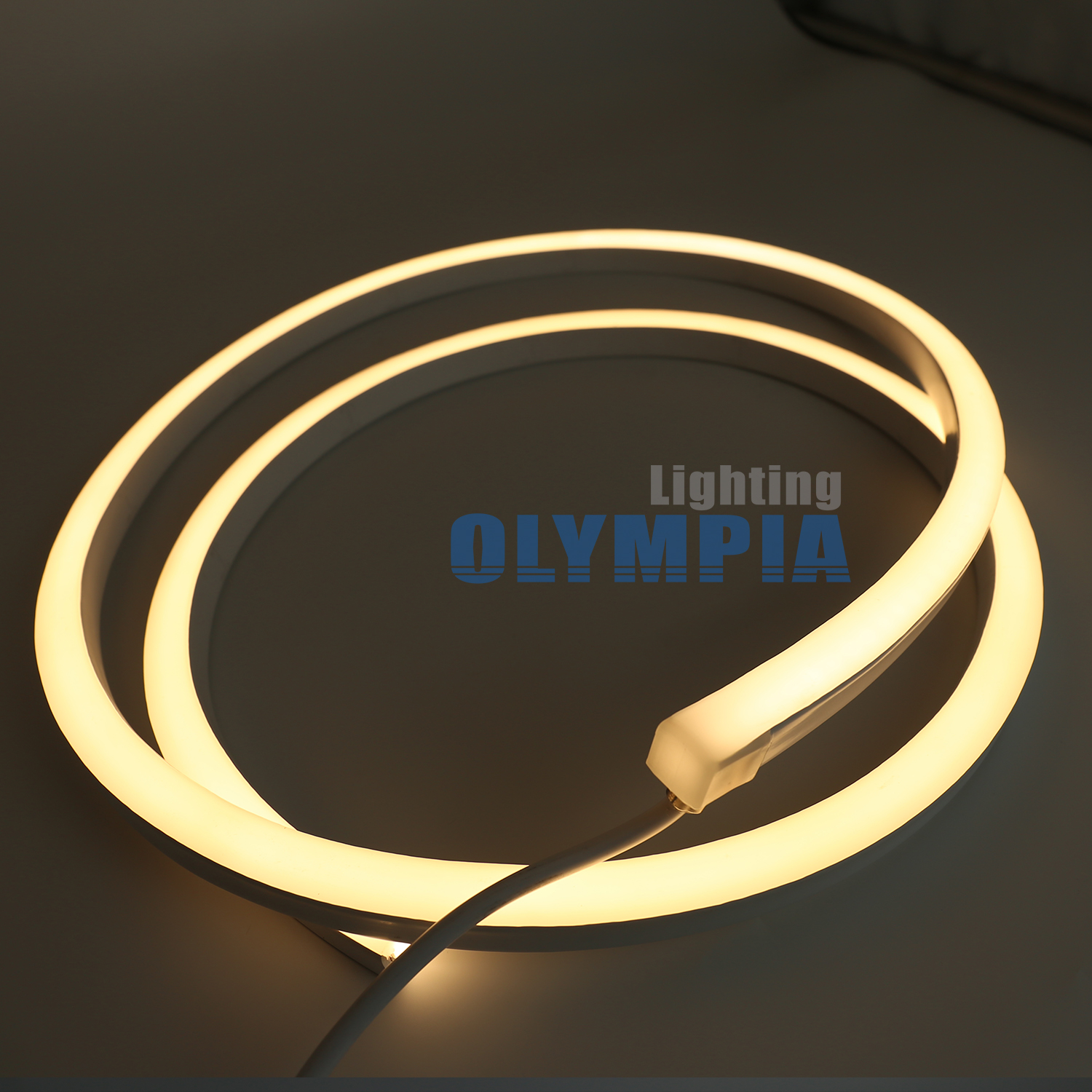

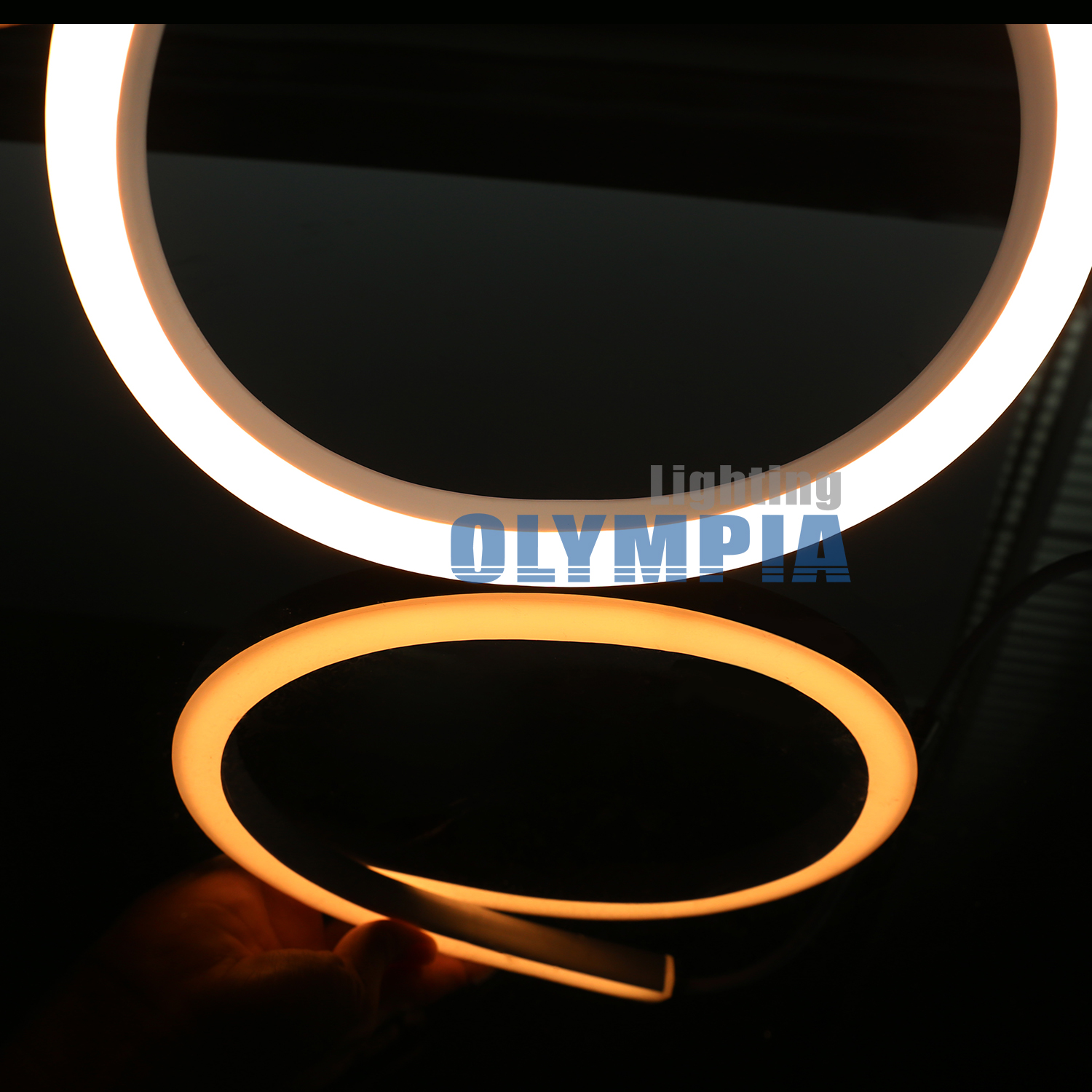

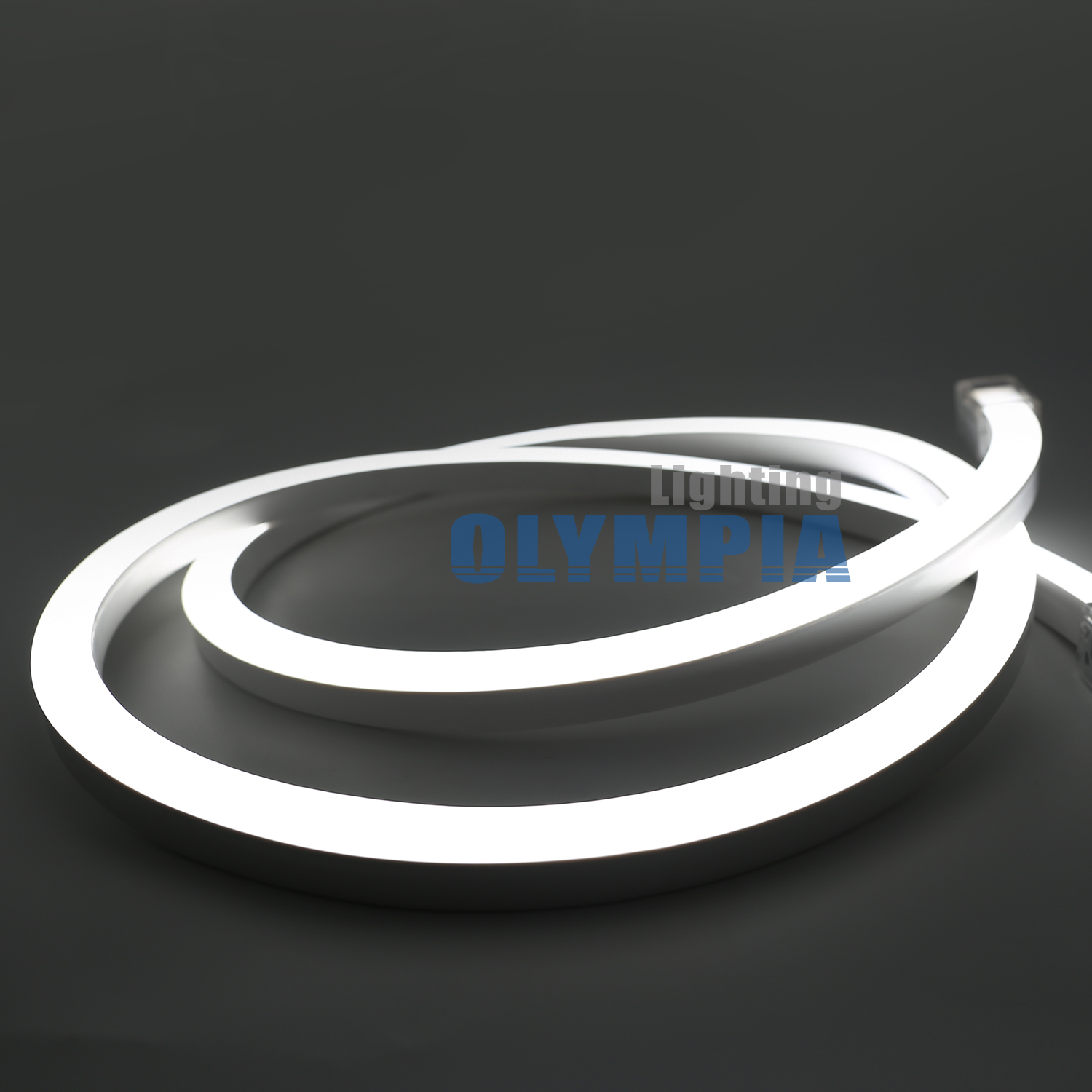

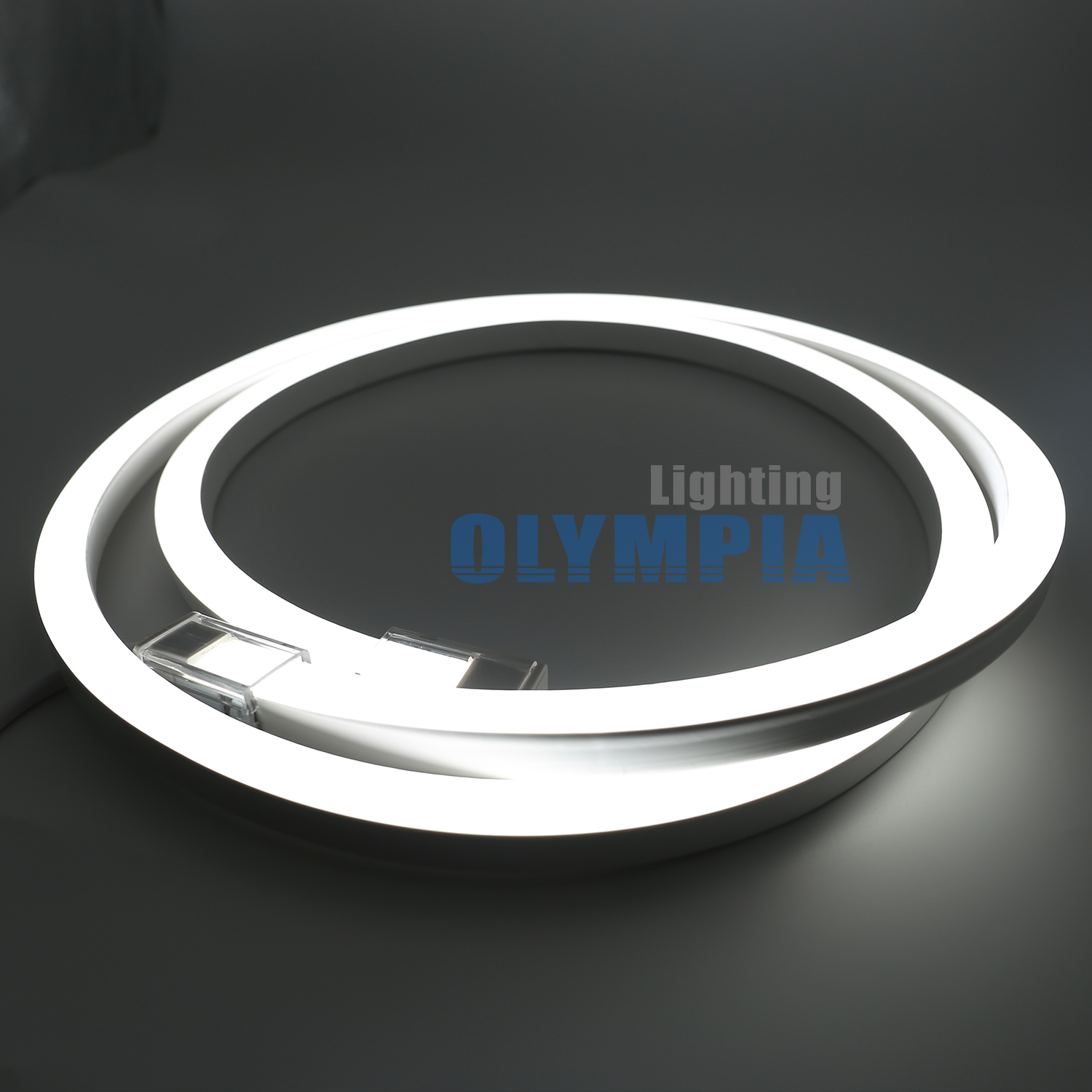

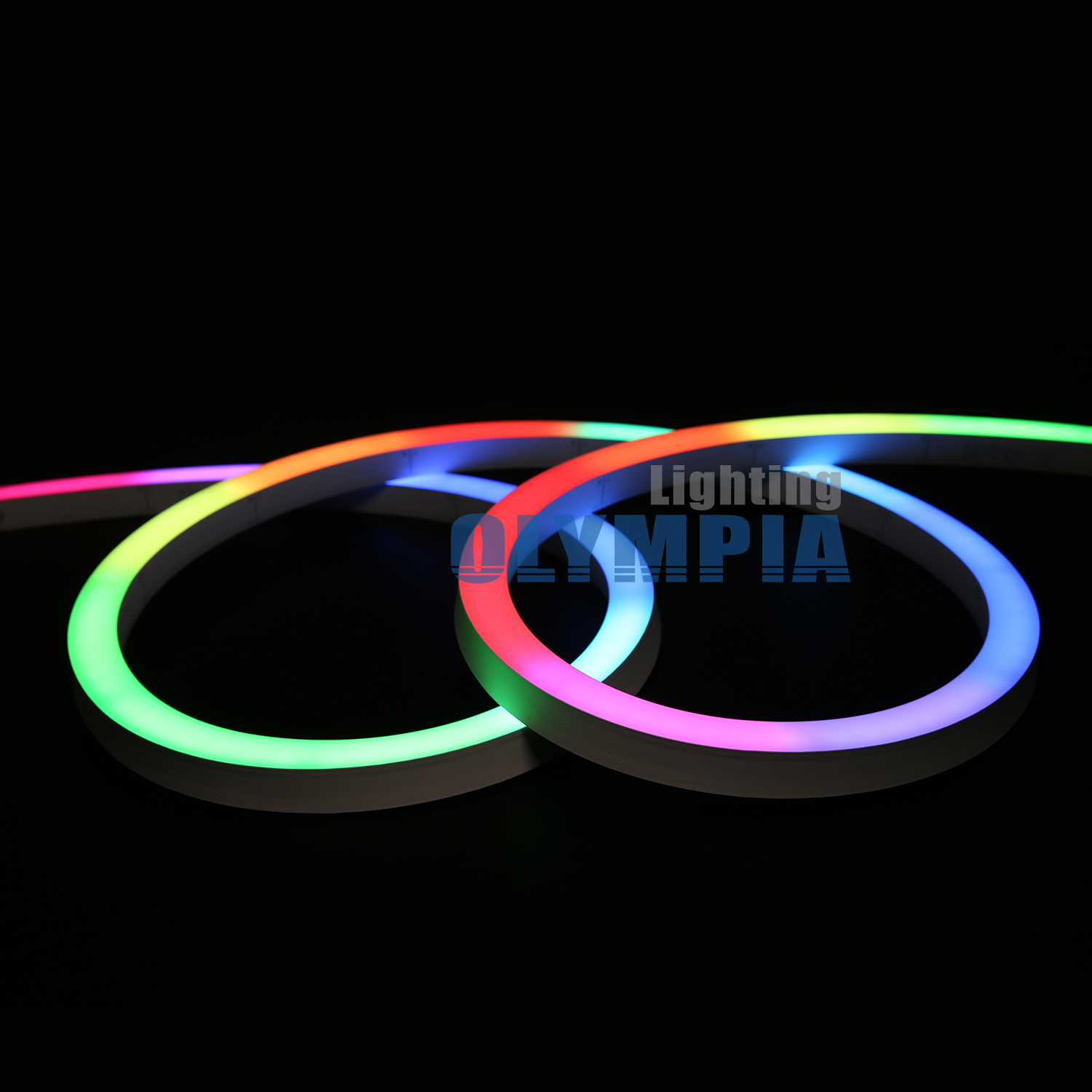

SF17 Flat Shape Horizontal Bending LED Linear Flex
US $21.09 - US $34.96
US $22.20 - US $36.80
Production Lead Time:
7-15 day(s)
Shipping Method:
Air freight, sea freight
Feature:
DC12V/DC24V/DC48V
Material:
Silicone
Size:
16.5*16.5mm
Is Dimmable:
Yes
Light Source:
LED
Customised:
Yes
Brand:
Olympia Lighting
Color:
Mono, Tunable White, RGB, RGBW, Pixel Chasing RGB(W)
LED Type:
2835/3528/5050
Lifetime:
50000
Application:
Outdoor Lighting, Facade Lighting, Indoor Lighting
Description
Certification & Document
Contact Supplier
Description
With the cross section of 16.5mm (W)x 16.5 mm (H), SF17 series offers complete color options, including mono color, tunable
white, RGB, RGBW, DMX and SPl pixel chasing.
CRI: >80, >90
Color Temperature: [2200K-6500K]
Feature:
1. Max. length of 20 meters for single feed without apparent voltage drop;
2. Side & bottom injection mold connector to have seamless joint with IP68;
3. Adopts Epistar LEDs;
4. Easy to be installed, various connectors provided, mold injection connector, DIY Snap Connector, DIY Screw Connector Kit;
6. Can be cut and reconnected;
7. Protection rating IP68.
Parameter list:
Model | Voltage | LED Type | LED Count | Working Mode | Color | CCT | Watt | Cutting Unit | Max. Length Single Feed |
| SF17-48V-2835-84-CC | 48V | 2835 | 84 | CV(IC) | G/B/LY/P/R/A/O | 2200~6500K | 5W | 16.67cm | 13m |
| SF17-24V-2835-120-U2 | 24V | 2835 | 120 | CV | B/LY/P | 2200~6500K | 10W | 1.67cm | 10m |
| SF17-24V-2835-120 | 24V | 2835 | 120 | CV | G/B/LY/P/R/A/O | 2200~6500K | 10W | 10cm | 10m |
| SF17-24V-2835-128 | 24V | 2835 | 128 | CV | G/B/LY/P/O | 2200~6500K | 8W | 12.5cm | 10m |
| SF17-24V-2835-144 | 24V | 2835 | 144 | CV | G/B/LY/P/R/A/O | 2200~6500K | 10W | 8.33cm | 10m |
| SF17-48V-3528-140 | 48V | 3528 | 140 | CV | G/B/P | 2200~6500K | 12W | 10cm | 20m |
| SF17-24V-2835-120-DW | 24V | 2835 | 120 | CV | DW | Customized | 12W | 10cm | 8m |
| SF17-24V-5050-72-RGB | 24V | 5050 | 72 | CV | RGB | / | 13W | 8.33cm | 10m |
| SF17-48V-5050-84-RGB | 48V | 5050 | 84 | CV | RGB | / | 15W | 16.67cm | 20m |
| SF17-12V-5050-72-RGBW | 12V | 5050 | 72 | CV | RGBW | 2700~5000K | 17W | 4.16cm | 5m |
| SF17-24V-5050-72-RGBW | 24V | 5050 | 72 | CV | RGBW | 2700-5000K | 17W | 8.33cm | 8m |
| SF17-24V-5050-84-RGBW-V1 | 24V | 5050 | 84 | CV | RGBW | 2700~5000K | 20W | 8.33cm | 7m |
| SF17-48V-5050-84-RGBW | 48V | 5050 | 84 | DMX | RGBW | 2700~5000K | 20W | 16.67cm | 14m |
| SF17-24V-5050-70-DMX3-RGB | 24V | 5050 | 70 | DMX | RGB | / | 14W | 10cm | 8m |
| SF17-24V-5050-72-DMX3-RGB | 24V | 5050 | 72 | DMX | RGB | / | 9W | 16.67cm | 10m |
| SF17-24V-5050-84-DMX3-RGB | 24V | 5050 | 84 | DMX | RGB | / | 18W | 8.33cm | 8m |
| SF17-48V-5050-84-DMX3-RGB | 48V | 5050 | 84 | DMX | RGB | / | 17W | 16.67cm | 20m |
| SF17-24V-5050-70-DMX4-RGBW | 24V | 5050 | 70 | DMX | RGBW | 2700~5000K | 18W | 10cm | 8m |
| SF17-24V-5050-84-DMX4-RGBW | 24V | 5050 | 84 | DMX | RGBW | 2700~5000K | 23W | 8.33cm | 8m |
| SF17-48V-5050-84-DMX4-RGBW | 48V | 5050 | 84 | DMX | RGBW | 2700~5000K | 20W | 16.67cm | 22m |
| SF17-24V-5050-70-SPI3-RGB | 24V | 5050 | 70 | SPI | RGB | / | 15W | 10cm | 8m |
| SF17-24V-5050-70-SPI4-RGBW | 24V | 5050 | 70 | SPI | RGBW | 2700~5000K | 18W | 10cm | 8m |
| SF17-24V-5050-84-SPI4-RGBW | 24V | 5050 | 84 | SPI | RGBW | 2700~5000K | 22W | 8.33cm | 8m |
