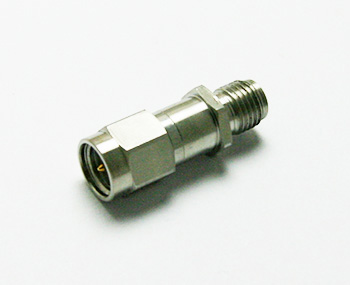

SMA Inner DC Block
Production Lead Time:
35 day(s)
Model No.:
DB-1001S-SA15TP-SA25TP
Brand:
Aec Connectors
Colour:
Silver
Size:
23.38mm
Coaxial Type:
SMA Coaxial
Application:
RF
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
- Frequency Range: 10MHz ~18GHz
- Impedance: 50 ohm Blocked
- DC Voltage: 50V Max.
- Insertion Loss: 0.2dB Max. @10MHz~1GHz 0.5dB Max. @1GHz~4GHz 0.75dB Max. @4GHz~8GHz 0.75dB Typ. / 1.5dB Max. @8GHz~18GHz
- Return Loss: 32dB Min. @10MHz~1GHz, 25dB Min. @1GHz~4GHz, 20dB Min. @4GHz~8GHz, 12dB Min. @8GHz~18GHz
