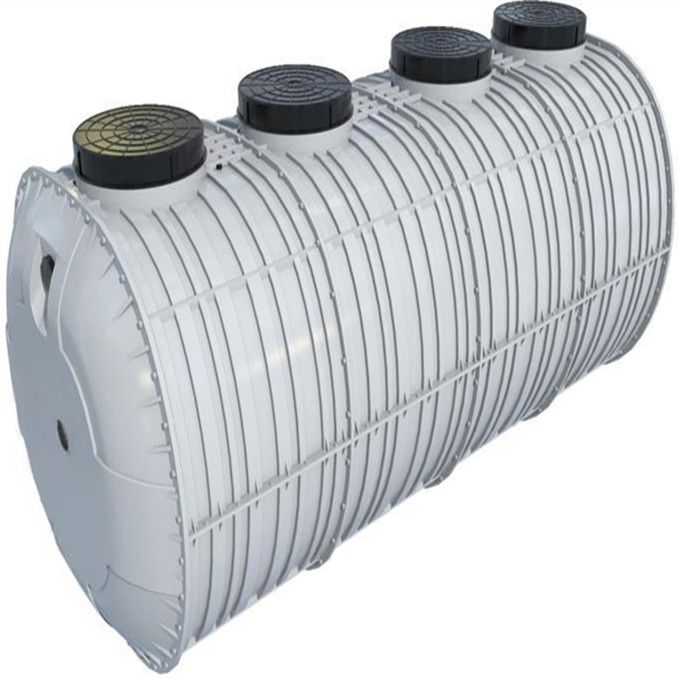

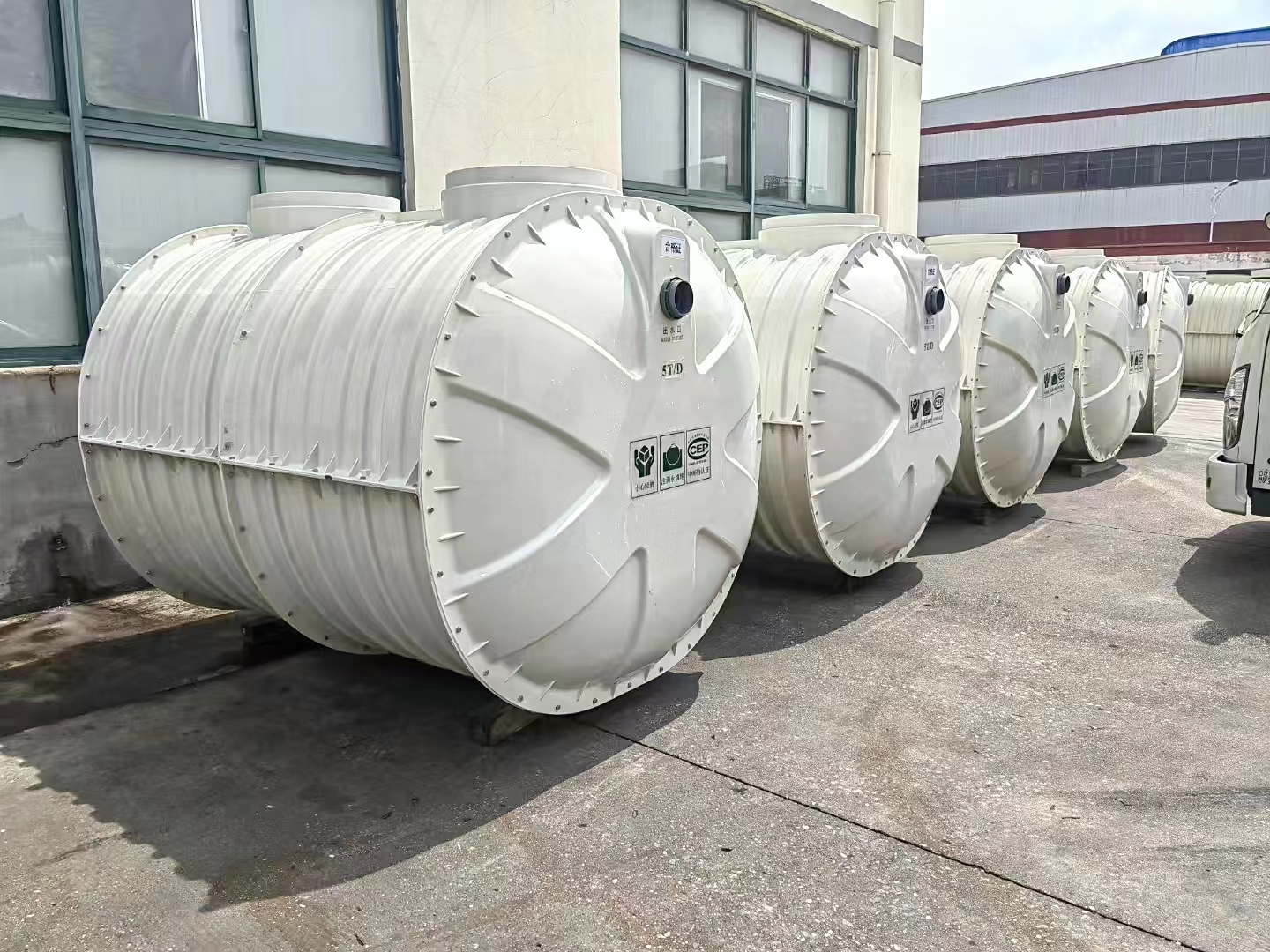

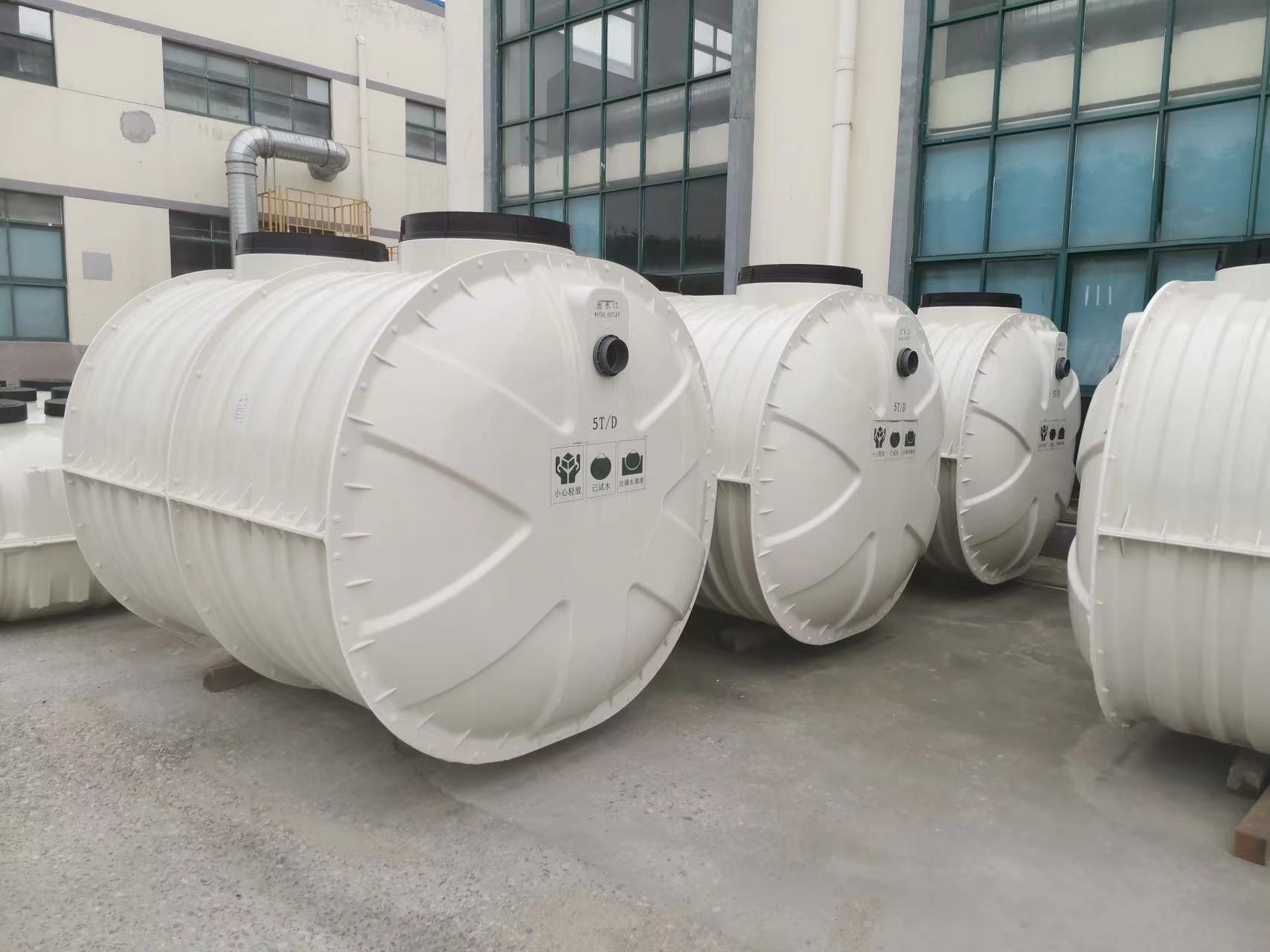

Intelligent Sewage Treatment Tank

The sewage treatment tank independently developed by Guangxi Max-energy Environmental Technology Co., Ltd. is an upgraded product of an integrated domestic sewage treatment device, which has undergone multiple technological innovations and has been highly integration.

SMC Sewage treatment tank is a kind of sewage integrated treatment equipment which has the characteristics of high efficiency nitrogen and phosphorus removal is suitable for use in domestic wastewater treatment, it has low-cost, low energy consumption, easy maintenance, it has the advantages of light weight, corrosion resistance, long service life, small footprint, simple construction and installation, easy management, low operating costs. Has the following characteristics:

1. Low investment, good treatment effects, short construction period, easy maintenance;

2. Low power consumption, energy saving, low daily operation costs;

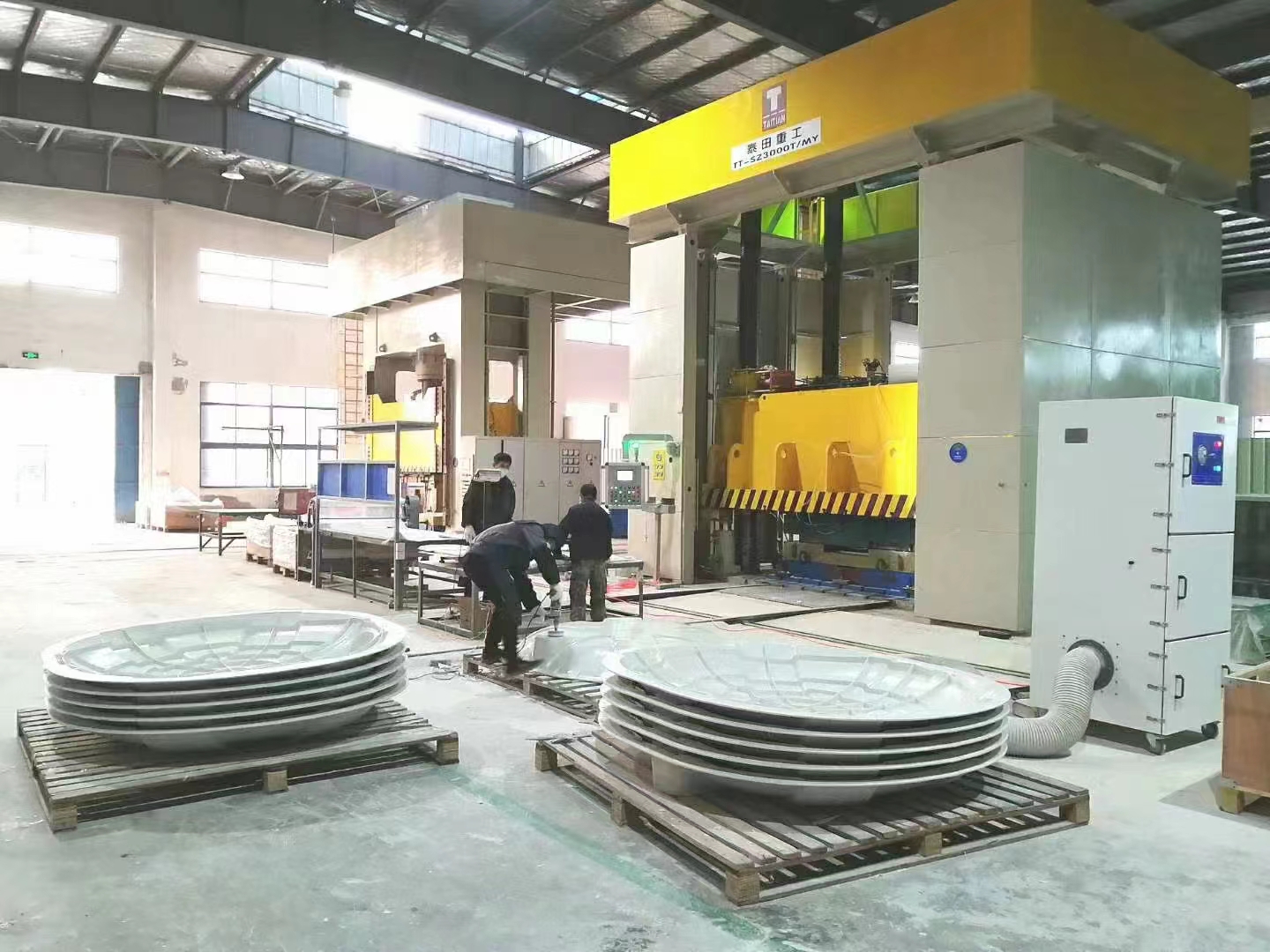

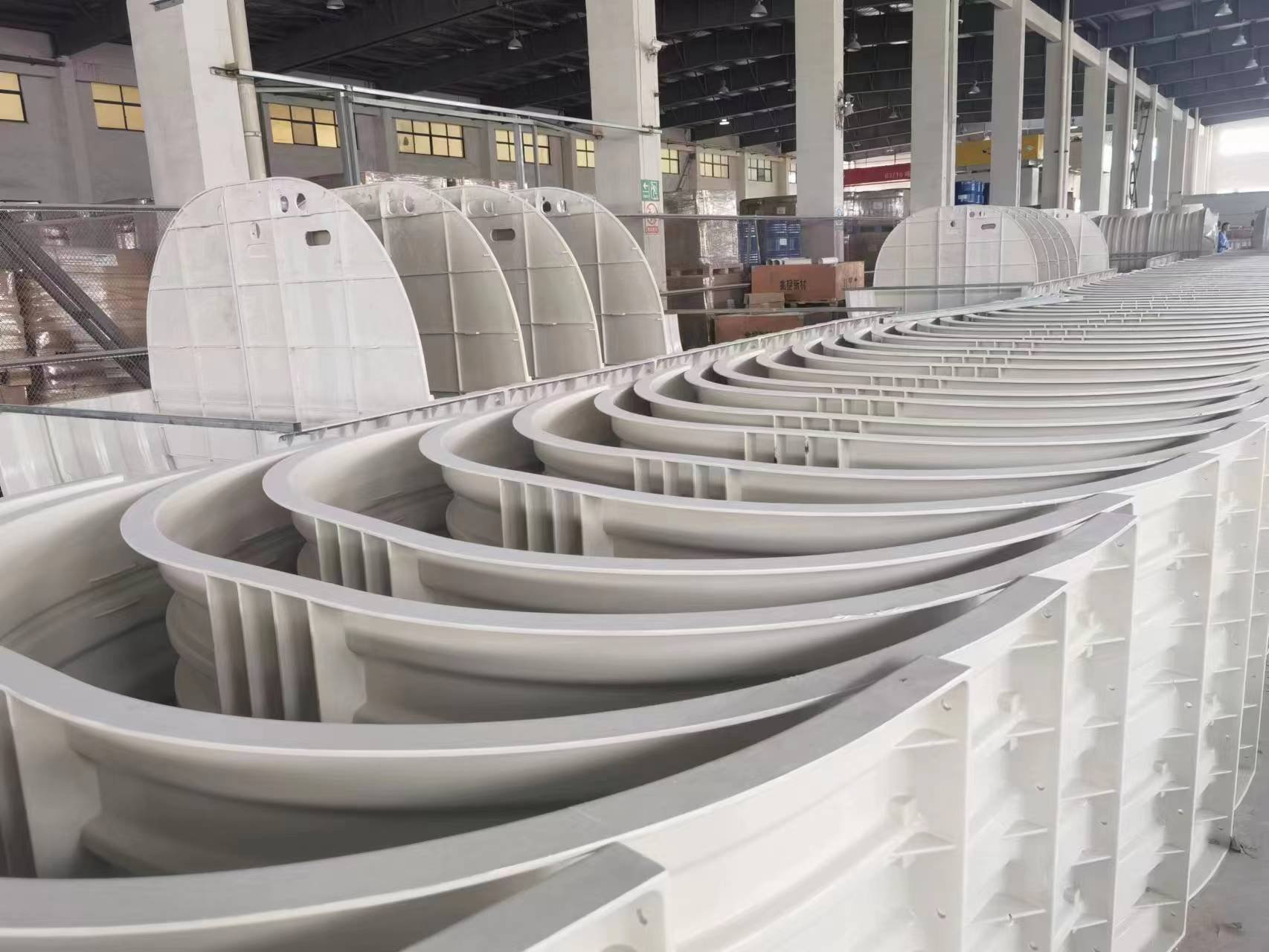

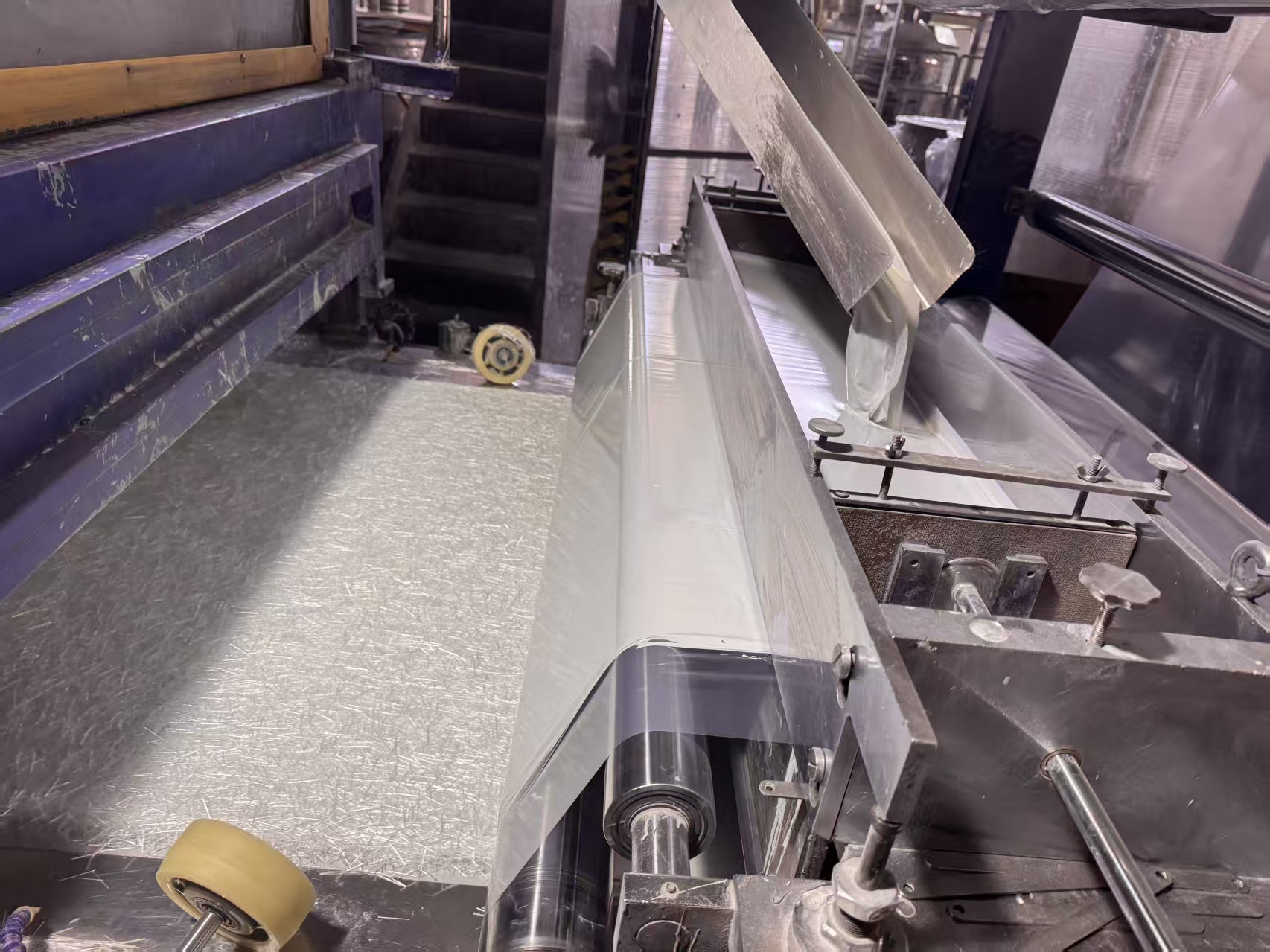

3. Using SMC material mold casting, with stable and reliable quality;

4. Use of Internet of Things (IoT) technology to realize remote mobile management and save labor costs;

5. Low sludge production;

6. Long service life, the service life can reach more than 30 years.

Process description

1.  After passing through the septic tank, the sewage from each household is collected by the sewage pipe network. The animal and vegetable oil in the sewage must be removed by a grease trap before entering the sewage pipe network for treatment.

2. After the domestic sewage is collected in the pipeline network, the debris and large particles are separated through the bar screen well to prevent blockage.

3. After separated by the bar screen well the sewage enters into the equalization tank. The purpose to set up equalization tank is to control water quality and water quantity to meet process requirements, so that the water quality and water quantity entering the treatment tank are more stable.

4. The sewage in the equalization tank is pumped to the treatment tank for treatment through a  lifting pump.

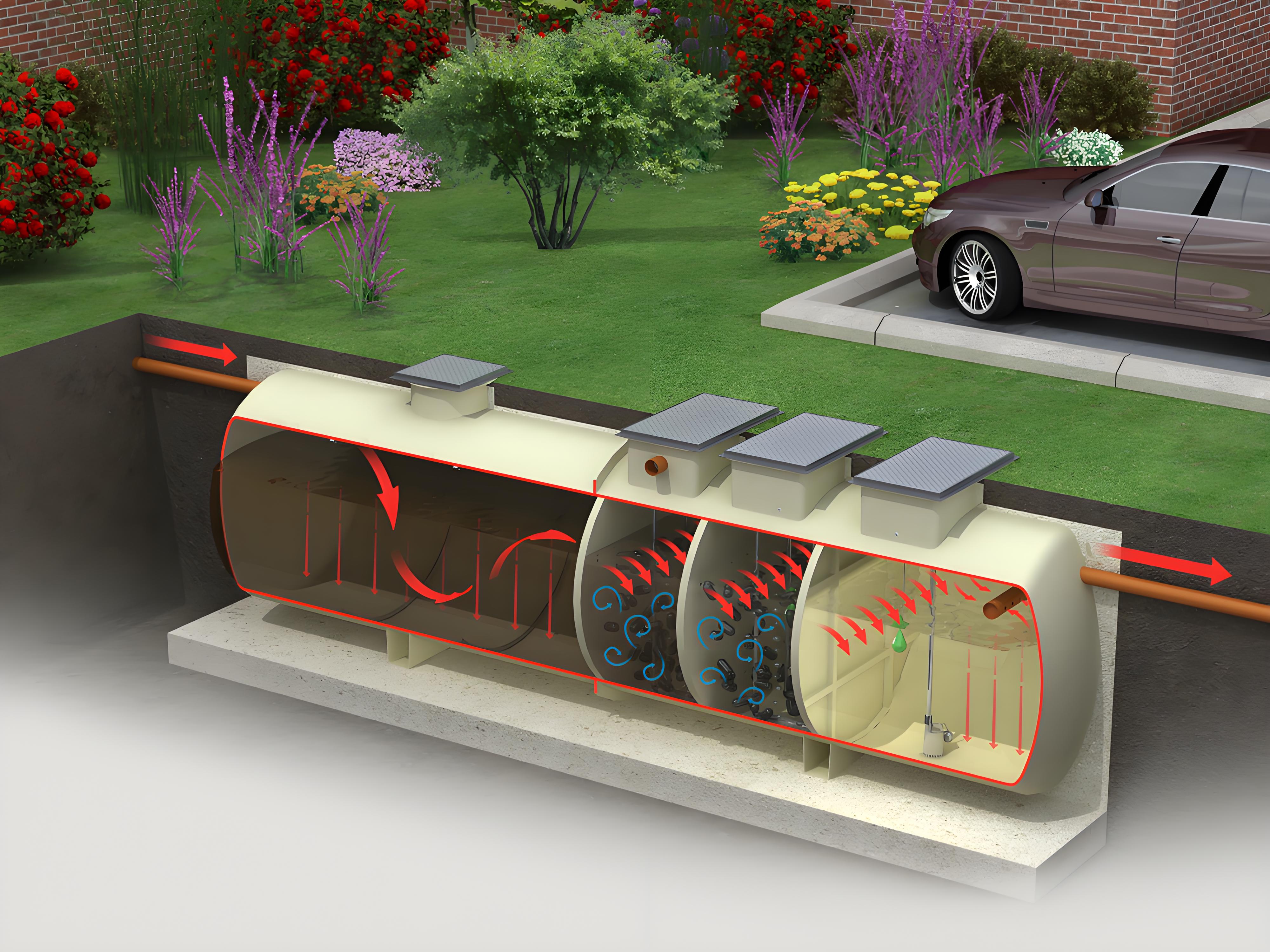

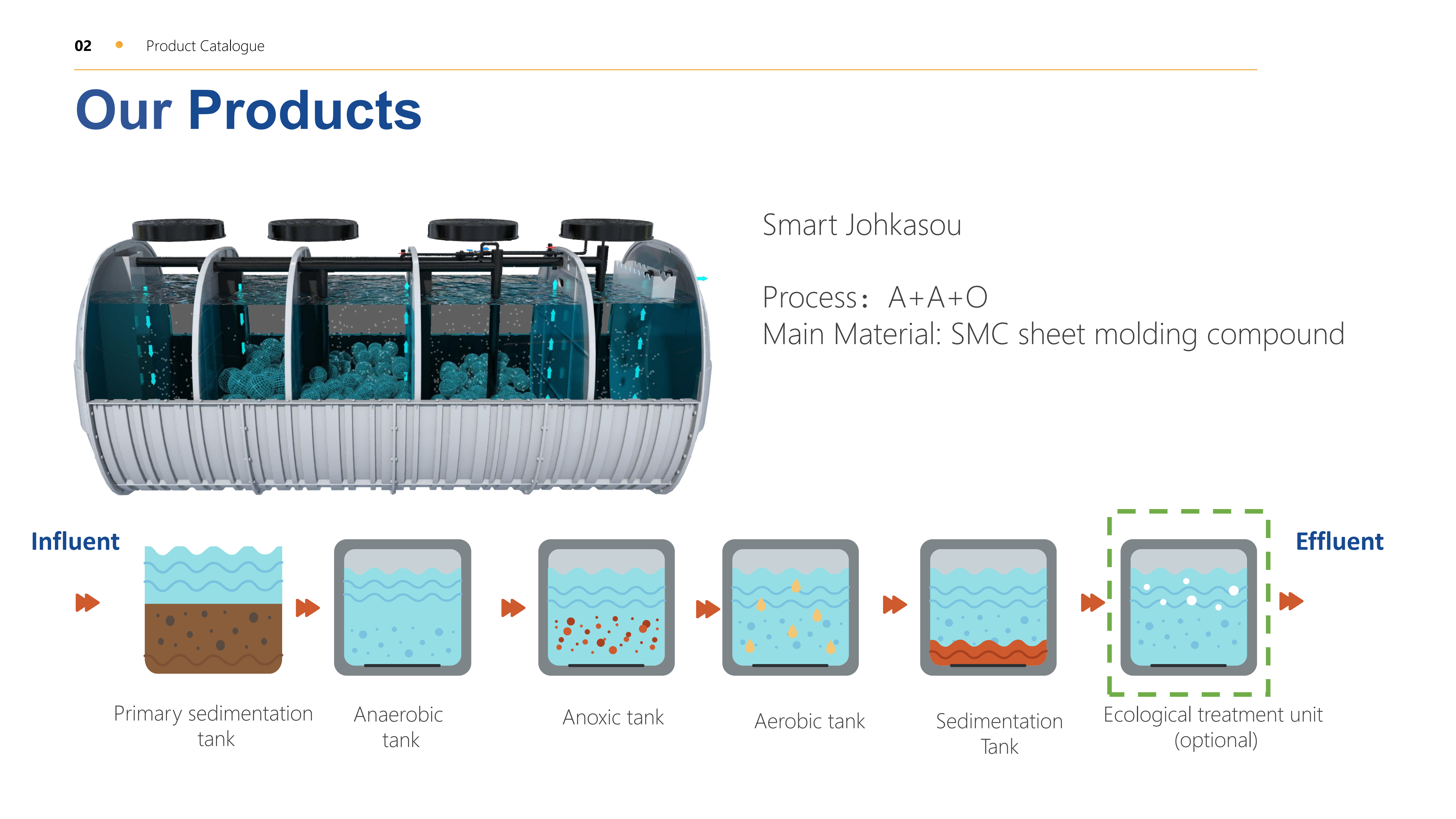

5. The intelligent sewage treatment tank is designed with five compartments, they are: oil separation and sand sedimentation compartment, anaerobic compartment, anoxic compartment, aerobic compartment and sedimentation compartment. It degrades COD in sewage through the action of microorganisms and realizes denitrification at the same time.

6. After being treated by the intelligent sewage treatment tank, the sewage enters the ecological filter for polished treatment. The sewage is deeply treated by the synergistic effects of artificial media, plants, and microorganisms, ensuring that the sewage is stably discharged in compliance with the standards. The effluent from the ecological filter flows into the nearby water body.

7. The intelligent sewage treatment tank is made of SMC/Glass fiber reinforced plastic material, we provide 1 year warranty for the whole system.
