SMD 2520 RTC Crystal Oscillator 32.768KHz CMOS Output

Brand:

JGHC晶光华

Customised:

Yes

Model No.:

OH2

Size:

2.5x2.0x0.8mm

Frequency:

32.768KHz

Voltage:

1.8V~3.3V or specif

Frequency Difference:

±25ppm or specif

Description

Contact Supplier

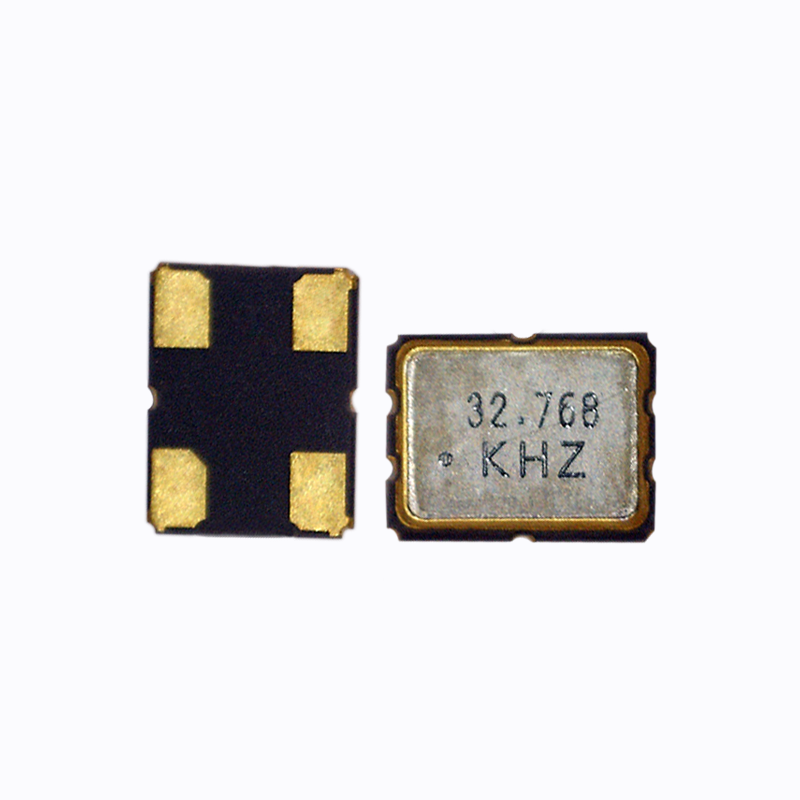

SMD 5032 RTC Clock Crystal Oscillators 2.5x2.0x0.8mm CMOS Output OH2 Series

Features

Meet 32.768 kHz RTC clock signal for tight tolerance requirement.

Easy to use SMD seam sealed ceramic package.

4 pads design to achieve good soldering contact on PCB.

Use AT crystal as the resonator for good temperature performance.

Tri-State function available for power saving.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE	OH2
Norminal Frequency	32.768KHz
Output Type	CMOS
Output Load	15 pF, or specify
Oscillation Mode	AT Fundamental
Supply Voltage	1.8V~3.3V
Frequency Stability	± 25 ppm, or specify
Operating Temperature Range	- 40 ~ + 85 ℃, or specify
Storage Temperature Range	- 55 ~ + 125 ℃
Voltage Vol ( Max. )/Voh ( Min. )	0.1VDD / 0.9VDD
Rise ( Tr ) / Fall ( Tf ) Time	250 ns Max.
Current Consumption	3 mA Max.
Symmetry	45 ~ 55 %
Start-up Time	10 ms Max.
Tri-state Voltage Vol (Max.) / Voh (Min.)	0.3 VDD / 0.7 VDD
Aging ( at 25 ℃ )	± 5 ppm / year Max.
