SMD Oscillator
Description
Contact Supplier
Description

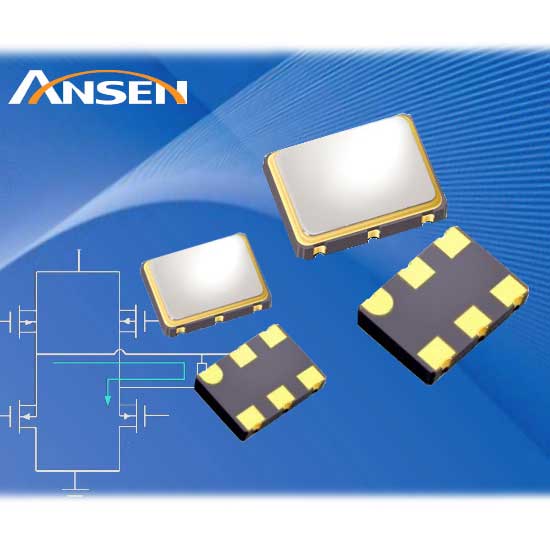

This SMD oscillator features high-speed transmission and low phase jitter (12kHz to 20MHz) under 1pS (RMS) without noise influence. It is suitable for storage area networking and industrial computers, such as SONET, fiber channels and Ethernet. There are differential output designs available.
- Packaging size: 7 x 5mm and 5 x 3.2mm.
- Voltage: 3.3V and 2.5V.
- Frequency: 15MHz to more than 600MHz.
- Frequency stability: ±25 to ±50ppm.
- Available in SMD LVPECL OSC/SMD LVDS OSC/SMD HCSL OSC.
