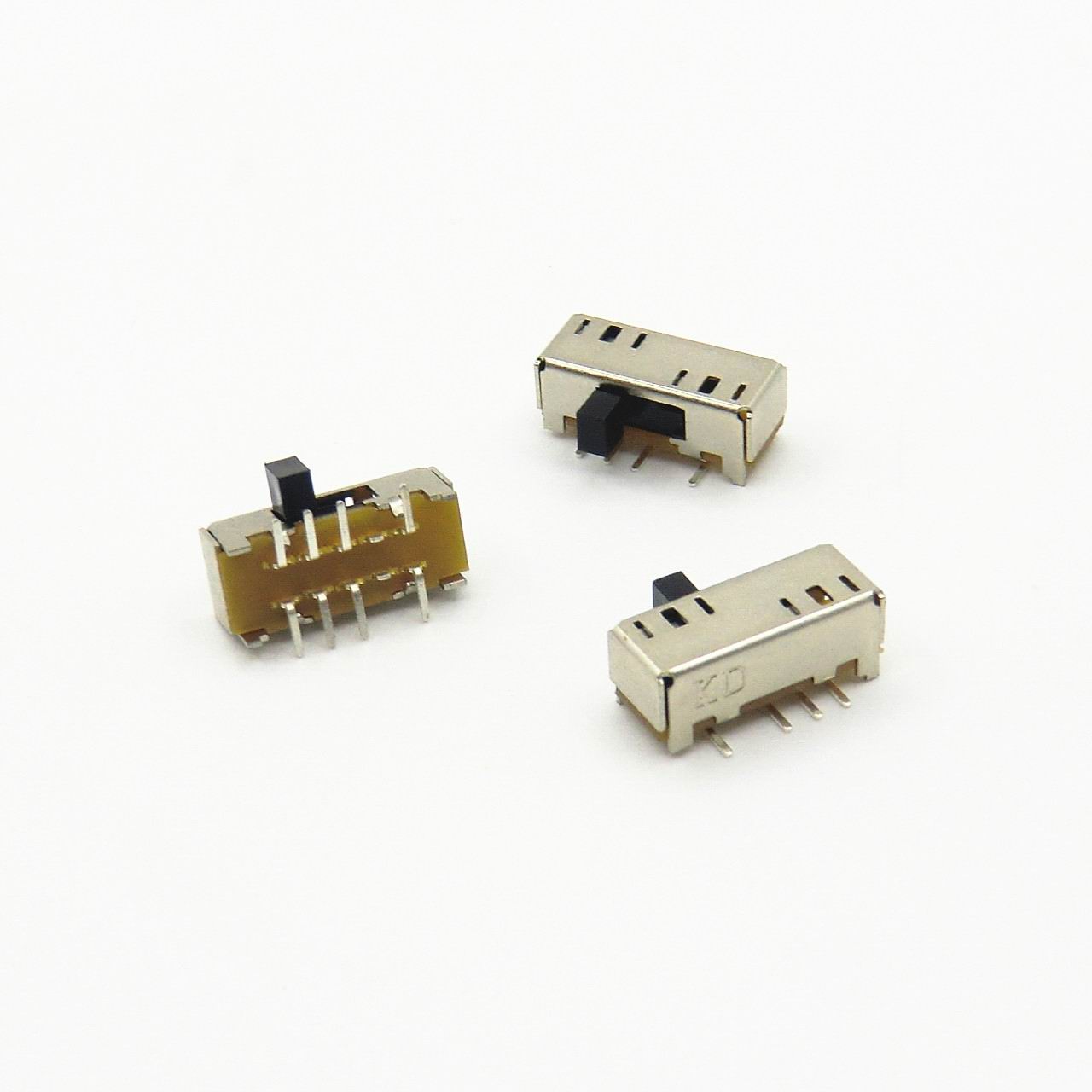

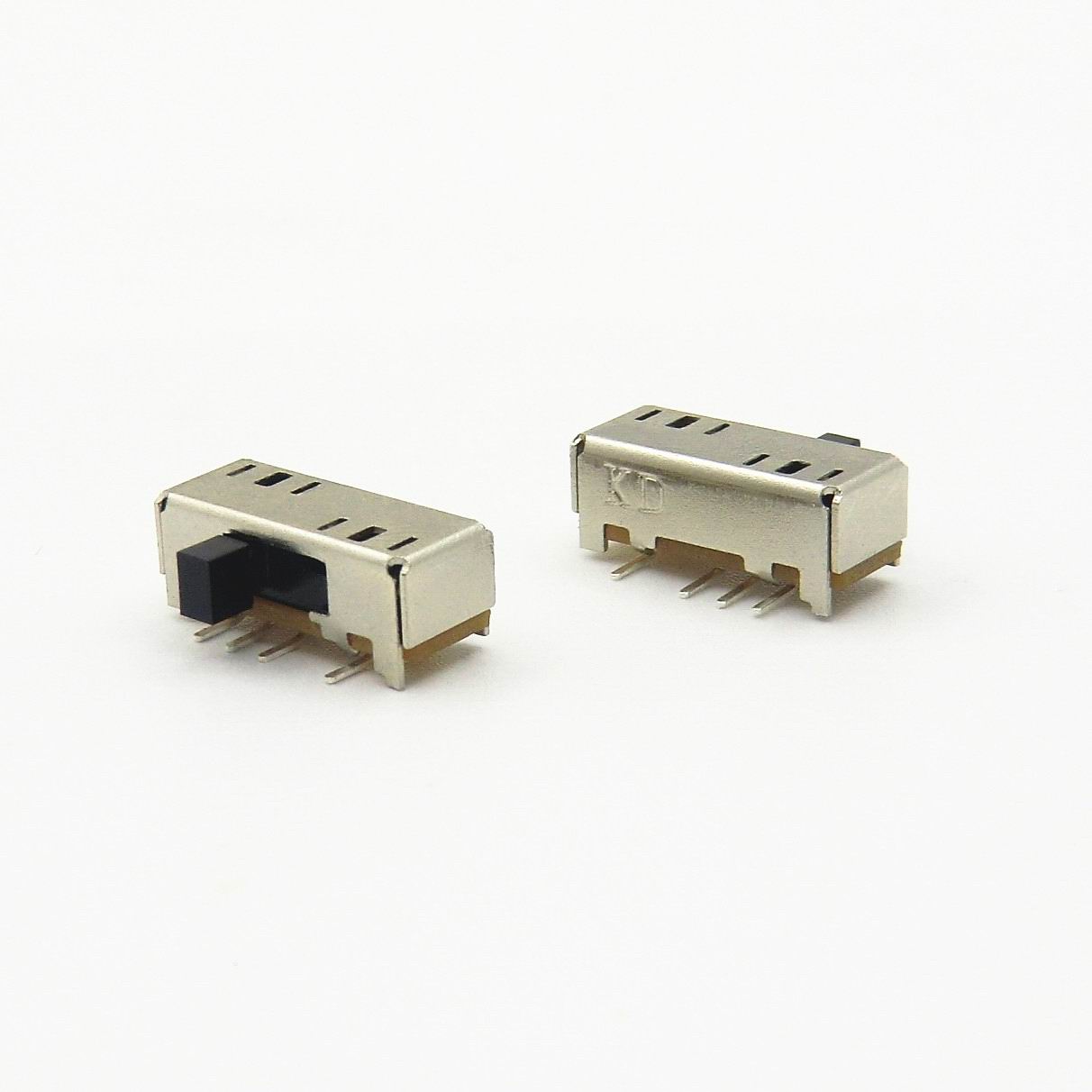

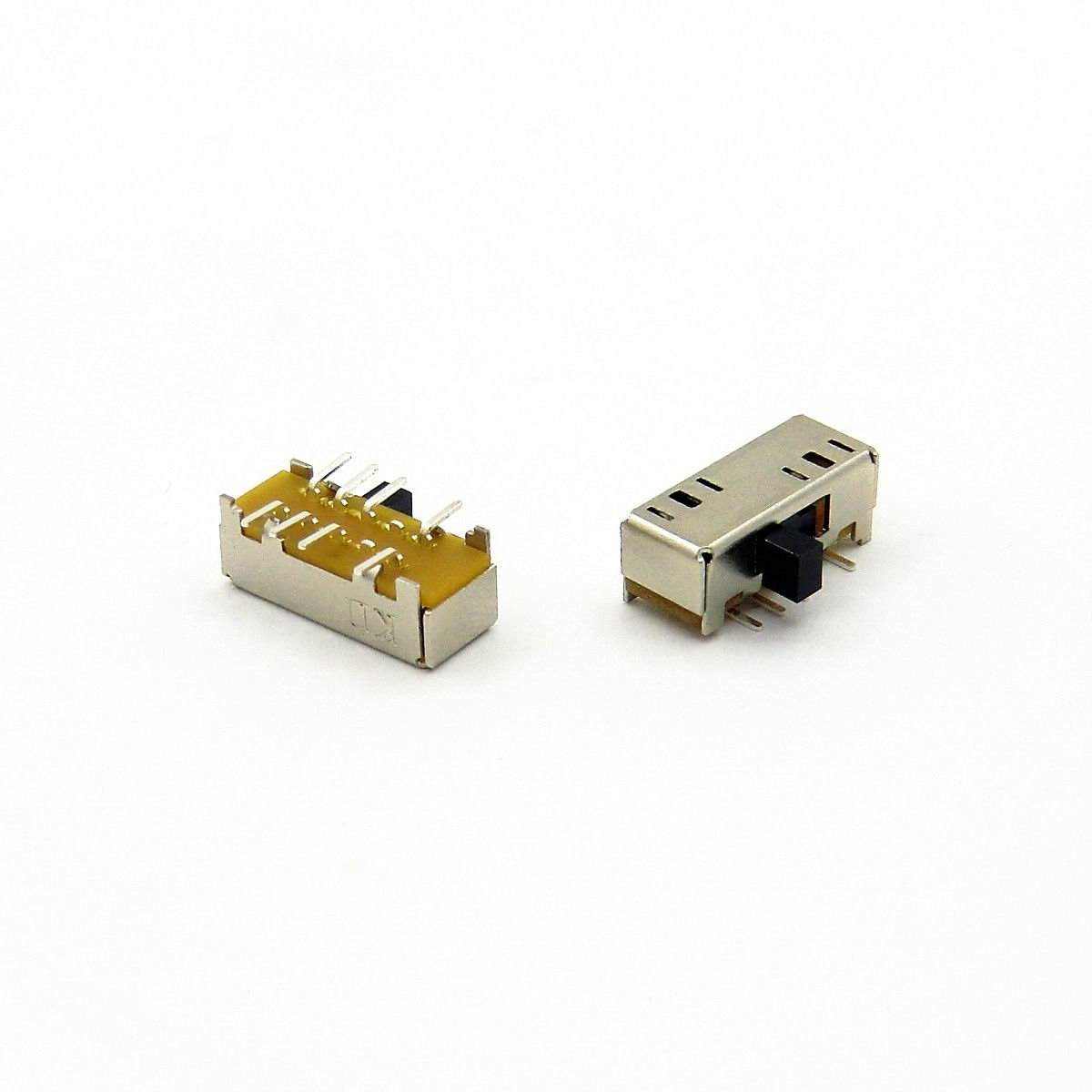

SMD Slide Switch

US $0.06 - US $0.07

Production Lead Time:

15 day(s)

Shipping Method:

EXW

Application:

Power tool, Communication equipment ,Medical device industry,The electronic toy industry

Brand:

Model No.:

SK23D06

Customised:

Yes

Size:

14.95*6.0*6.0

Port:

Shenzhen or HK

Payment method:

T/T

Minimum order quantity:

10K Piece(s)

Description

Contact Supplier

ITEM	PERFORMANCE
Title	HORIZONTAL SLIDE SWITCH
Model	SK23D06
Rating	0.3A 50V DC
Function	2P3T
Timing	Shorting
ContactResistance(mohms)	30mΩ max
Insulation Resistanc(Mohms)	100MΩ min at 500V DC
Dielectric Strength(V)	AC 500V for 1 min
LifeTest	10000 Cycles
