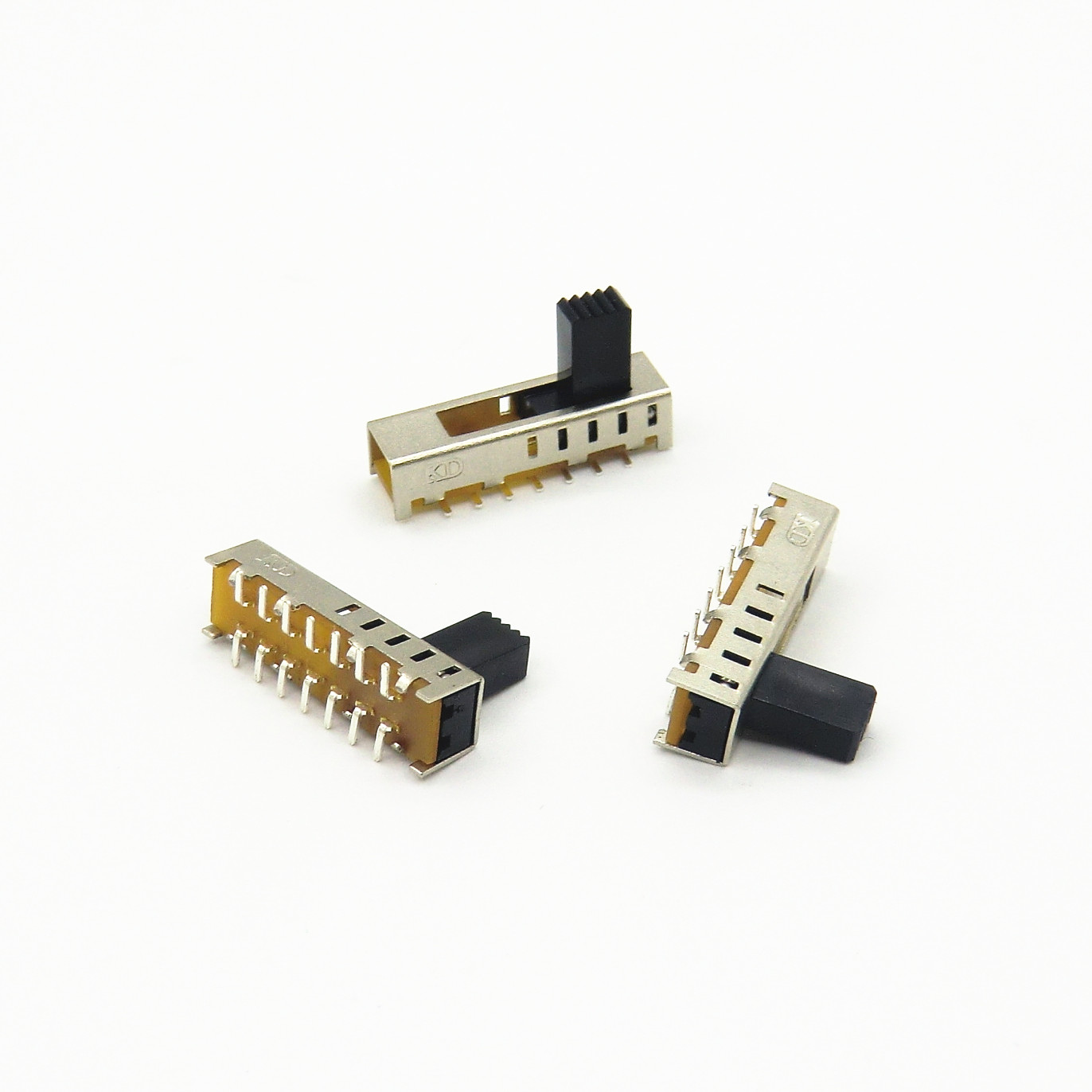

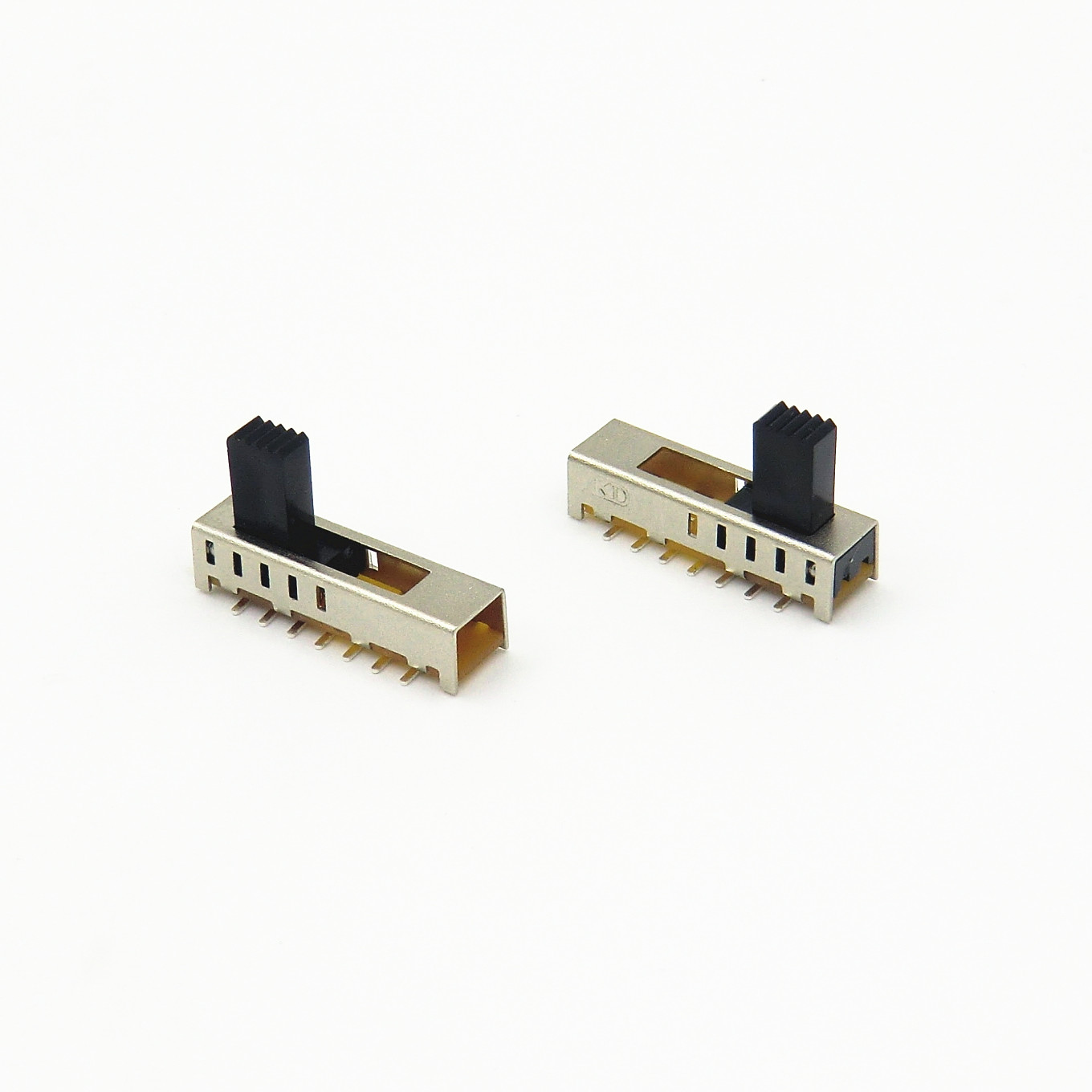

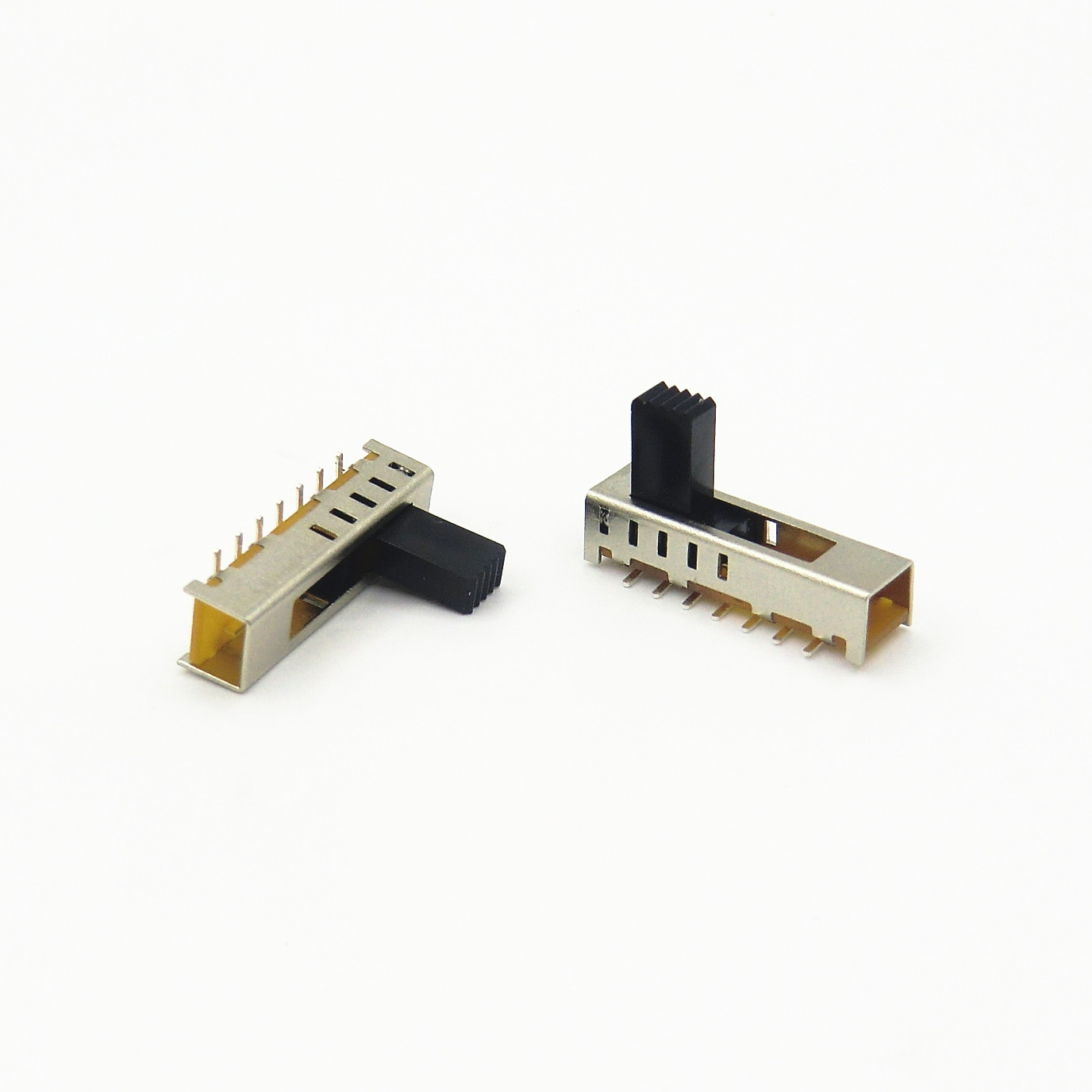

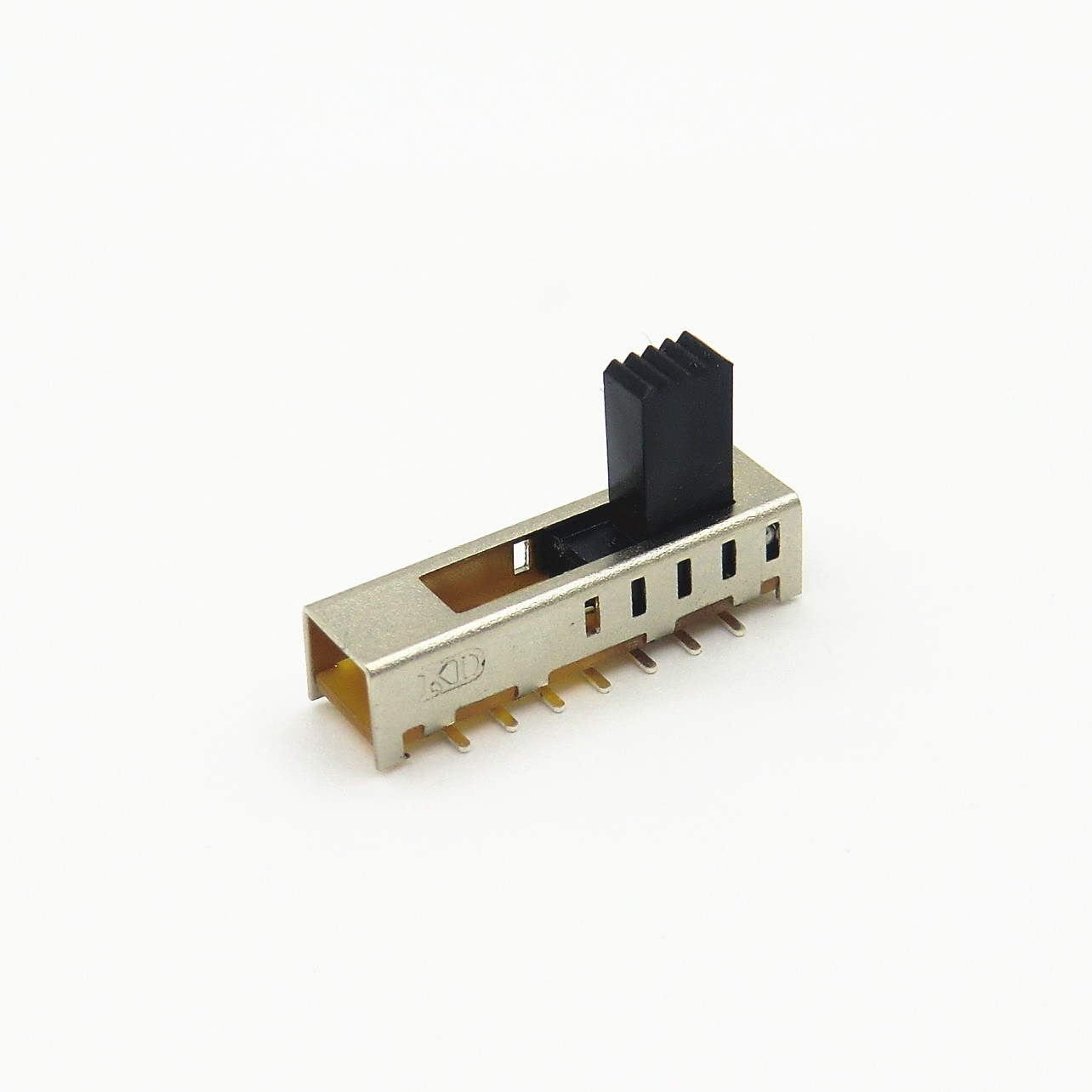

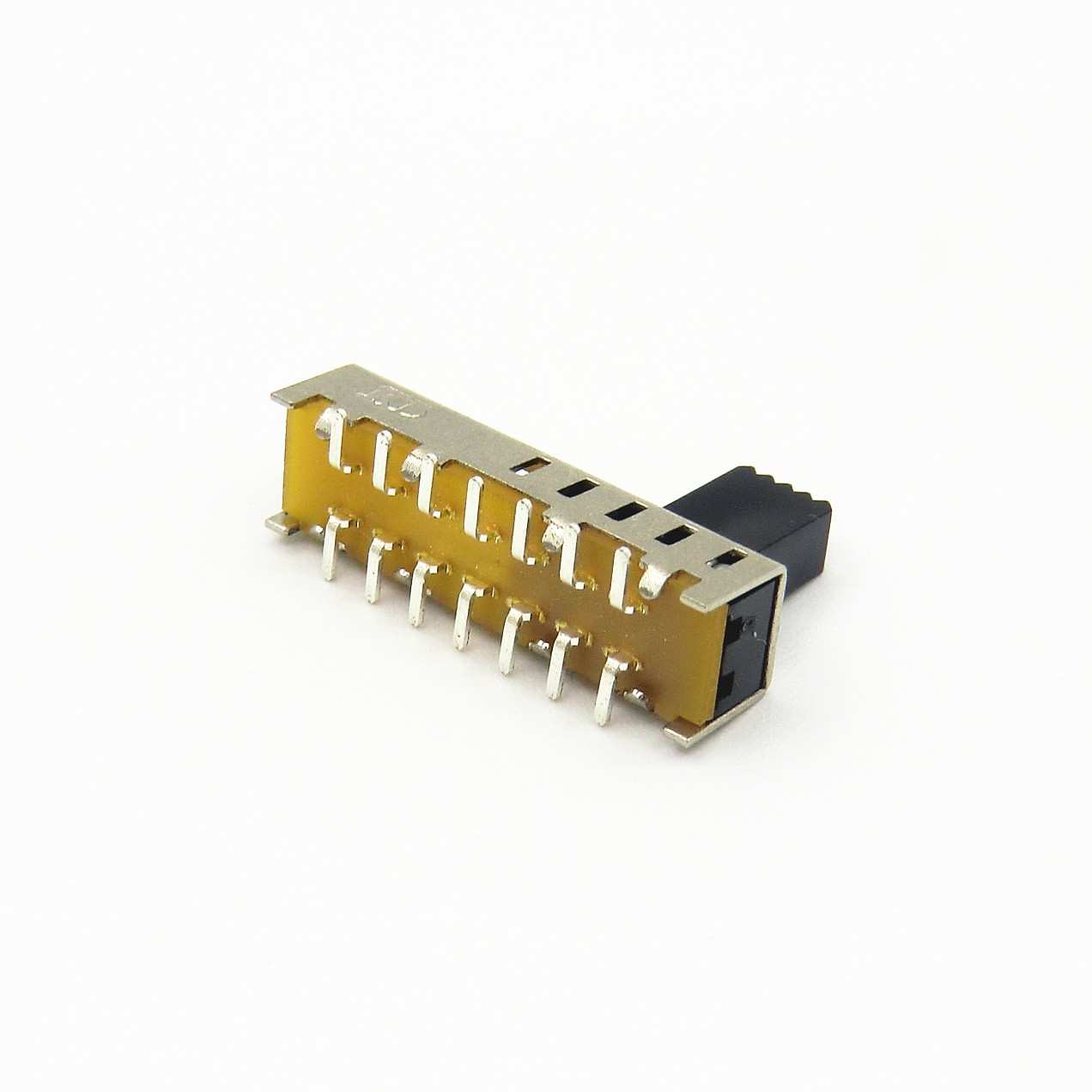

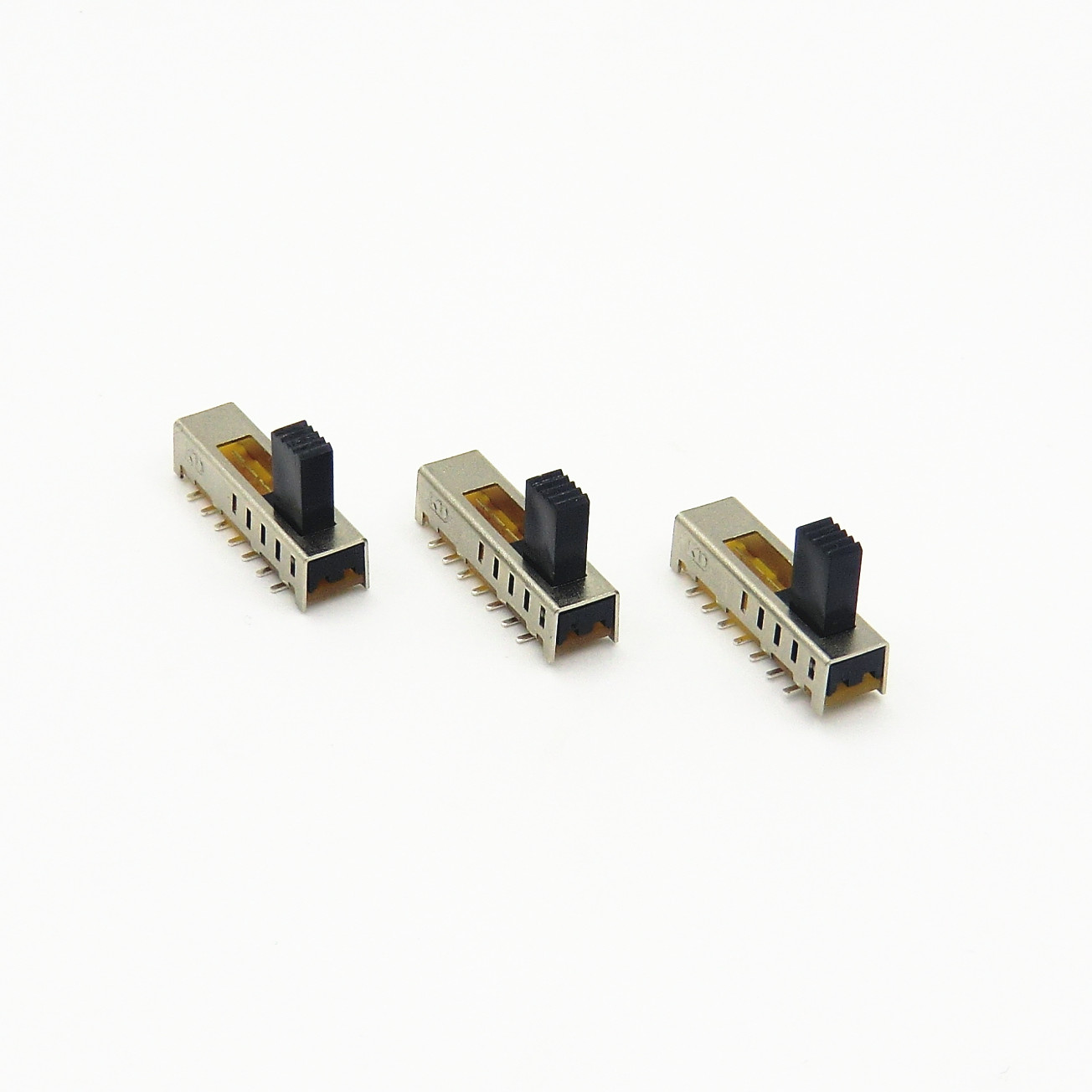

SMD Slide Switch

US $0.05 - US $0.06

Production Lead Time:

15 day(s)

Shipping Method:

EXW

Application:

Power tool,Communication equipment,Medical device industry,The electronic toy industry

Brand:

Model No.:

SS25E02

Customised:

Yes

Size:

23*6.2*5.5

港口:

Shenzhen or HK

付款方式:

T/T

最小采购数量:

10000Piece(s)

Description

Contact Supplier

Title	VERTICAL SLIDE SWICH
Model	SS25E02 TR
Rating	0.3A 50V DC
Function	2P5T
Timing	NON-Shorting
ContactResistance(mohms)	30mΩ max
Insulation Resistanc(Mohms)	100MΩ min at 500V DC
Dielectric Strength(V)	AC 500V for 1 min
LifeTest	10000 Cycles
