SMD TCXO 2520 Temperature Compensated Crystal Oscillator

Brand:

JGHC晶光华

Customised:

Yes

Model No.:

W22

Size:

2.5x2.0x0.8mm

Frequency:

10-52MHz

Voltage:

1.8V-3.3V or specif

Frequency Difference:

±2.5ppm or specif

Description

Contact Supplier

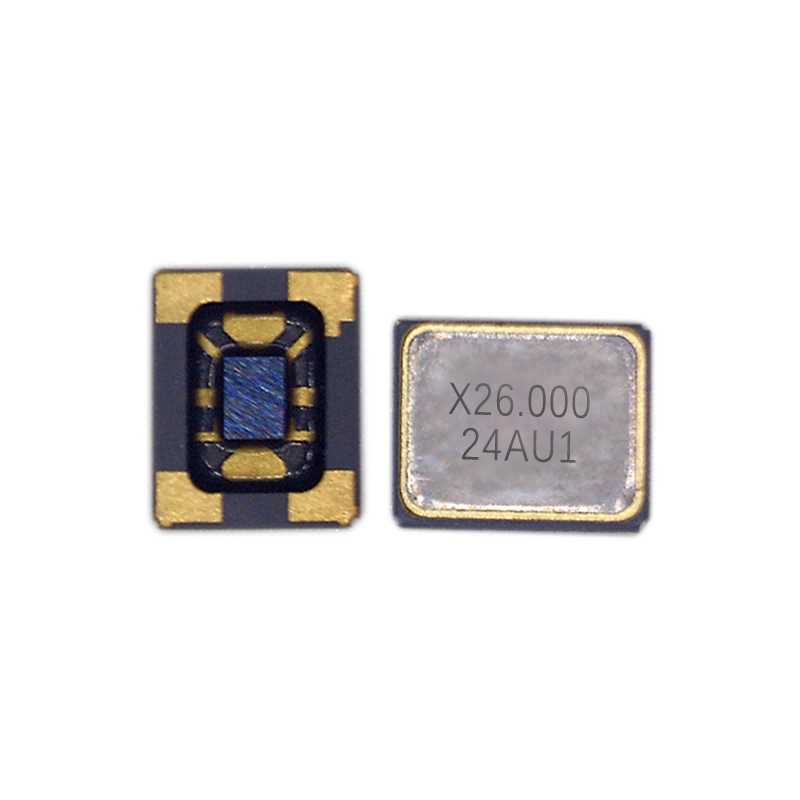

SMD TCXO 2520 Crystal Oscillators 2.5x2.0x0.8mm W22 Series

Our TCXO series product deliver high frequency stability, better reliability and robustness, making them ideal for specific applications such as SiP modules, and other connected consumer, industrial, and IoT applications.

Features

Temperature Stability: ±0.5 ppm~±2.0 ppm.

Operating Temperature Range: -30℃~85℃.

Supply Voltage: 1.8V~3.3V.

Voltage Control Function Available.

Applications: GPS, WiMAX, Cellular and Wireless Communications.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE		W22
Frequency Range		10 ~ 52MHz
Output Load		10KΩ // 10pF
Oscillation Mode		Fundamental
Supply Voltage		1.8~3.3 V
Output Type		Clipped Sinewave
Clipped Sinewave Output Voltage		0.8 Vp-p min
Supply Current		2.0mA max.
Harmonics		- 5 dBc Max.
Output Level		0.8 Vp-p min
Frequency Stability	Vs Temperature( -30~+85 ℃ )	±0.5 ppm / ± 2.0 ppm
	Supply Voltage ( Vcc=Typical ±0.1V )	± 0.2 ppm max.
	Load ( Load varies ±10% )	± 0.2 ppm max. (10KΩ / 10pF±10%)
Slope of Frequency Drift		± 0.1 ppm / ℃ Typical ; ± 0.5 ppm / ℃ Max.
Initial Frequency Tolerance at 25℃ after 2 Reﬂows		± 2.5ppm max. (After 2 times reflow )
Storage Temperature Range		- 40~+85 ℃
Auto Frequency Control Range		± 7 ~ ± 16 ppm (1.4+/- 1V)
Start-up Time		5 ms max.
Phase Noise at 1 kHz offset		- 130 dBc / Hz
Aging(at 25℃)		± 1ppm / year
