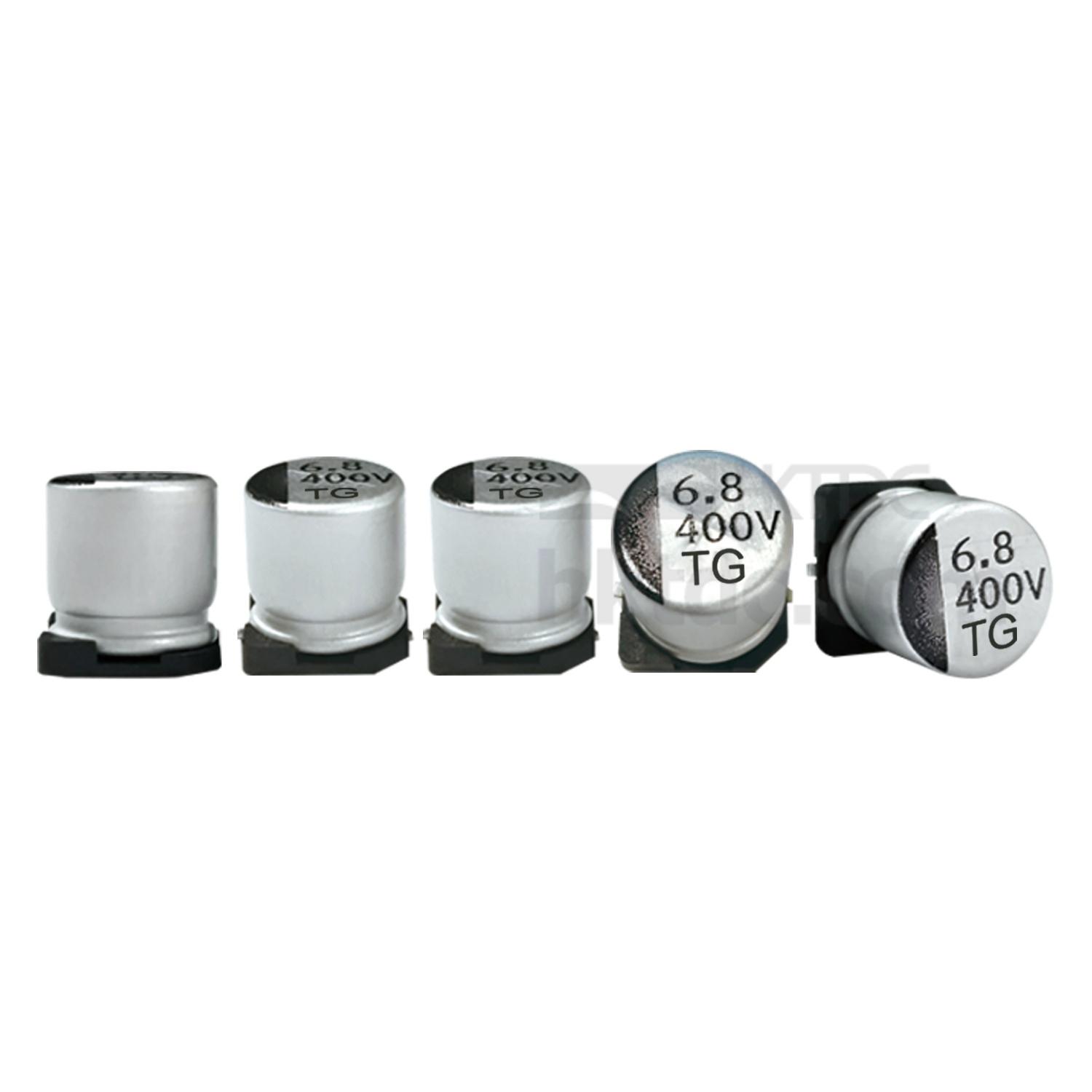

SMD Type Capacitor
Model No.:
TG/TL/TH
Brand:
JH
Colour:
Green, Black, Gold, Purplish Blue
Size:
4-12.5 x 5.4-16.5, 16 x 16.5
Port:
Shenzhen, Shanghai, Changsha
Type of Payment:
T/T, L/C
Minimum Order Quantity:
50,000 piece(s)
Customised:
Yes
Package:
Yes
Description
Contact Supplier
Description
- Rated Working Voltage Range (额定工作电压范围): 160V-450V
- Category Temperature Range (工作温度范围): -40~+105℃
- Capacitance Tolerance (静电容量允许偏差): ±20%(20℃,120HZ)
- Leakage Current 漏电流 (2分钟)
- Leakage Current ≦0.04CV+100uA (after 2 minutes)
- 漏电流.04CV+100uA （施加额定电压2分钟后）
- Dissipation Factor(MAX)
- (DF) Measurement frequency (测试频率)：120Hz
- Working voltage( 额定电压(V)): 160~250 400~450
- DF 损失角之正切值 0.15 0.2
- Low-Temperature Characteristics (Max impedance Ratio)
- 低温特性（阻抗比）
- Working voltage (额定电压(V)): 160~250 400~450
- Impedance ratio 阻抗比 Z(-25℃)/Z(+20℃) 3 5
- Z(-40℃)/Z(+20℃) 6 8
