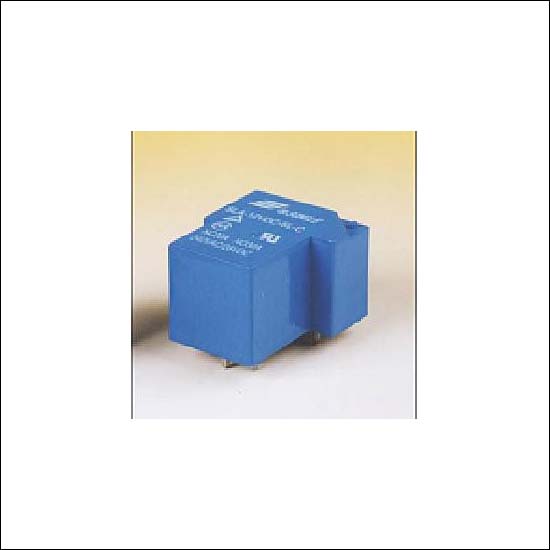

SRD/ Power relay
Model No.:
SRD
Colour:
blue
Size:
19.0 x 15.5 x 15.0mm
Description
Contact Supplier
Description
- 1)Contact form: 1a, 1b, 1c
- 2)Rated load: 8A-277V AC / 28V DC, 10A 240V AC / 28VDC, 12A 125V AC / 28V DC, 10A 125V AC / 28V DC, 7A 240V AC / 28V DC
- 3)Contact resistance: <=100m (Ohm)
- 4)Electrical life: 100,000
- 5)Mechanical life: 10,000,000
- 6)Coil rated voltage: 3-48V DC
- 7)Coil power: 0.36W, 0.45W
- 8)Coil pick-up voltage: <=75%
- 9)Coil drop-out voltage: >=10%
- 10)Ambient temperature: -25 ~ 70oC
- 11)Coil and contacts: 1500V AC/min
- 12)Contact and contacts: 1000V AC/min
- 13)Insulation resistance: >=100m (Ohm)
- 14)Mounting form: PCB
- 15)Weight: 10g
- 16)Outer dimensions: 19.0 x 15.5 x 15.0mm
