SRT-3.5G-3543
Model No.:

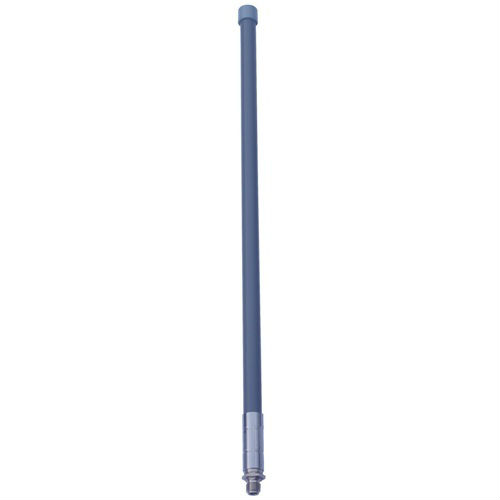

Antenna 3.5GHz WiMAX systems,radiation effects, wide range of Omni-directional Coverage,Wireless ac
Brand:
SRTRF
Size:
Φ21x600 mm
Description
Contact Supplier
Description
Model:SRT-3.5G-3543
Electrical specifications
Frequency Range:3500~3600 MHz
Gain:10 dBi
Polarization:Vertical
VSWR:≤1.5
Vertical Beam width:10°
Horizontal Beam width:360°
Impedance:50 ohms
Max. Power:100 W
Mechanical specifications
Connector:N Female
Dimension:Φ21x600 mm
Net Weight:0.68 kg
Operation Temperature:-40 ~ +60 ℃
Electrical specifications
Frequency Range:3500~3600 MHz
Gain:10 dBi
Polarization:Vertical
VSWR:≤1.5
Vertical Beam width:10°
Horizontal Beam width:360°
Impedance:50 ohms
Max. Power:100 W
Mechanical specifications
Connector:N Female
Dimension:Φ21x600 mm
Net Weight:0.68 kg
Operation Temperature:-40 ~ +60 ℃
