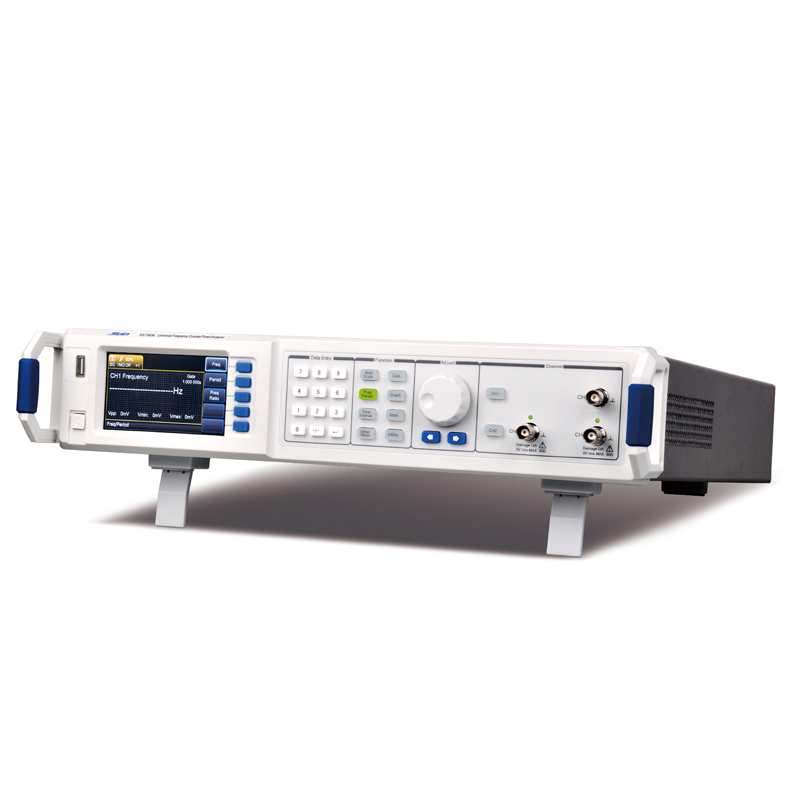

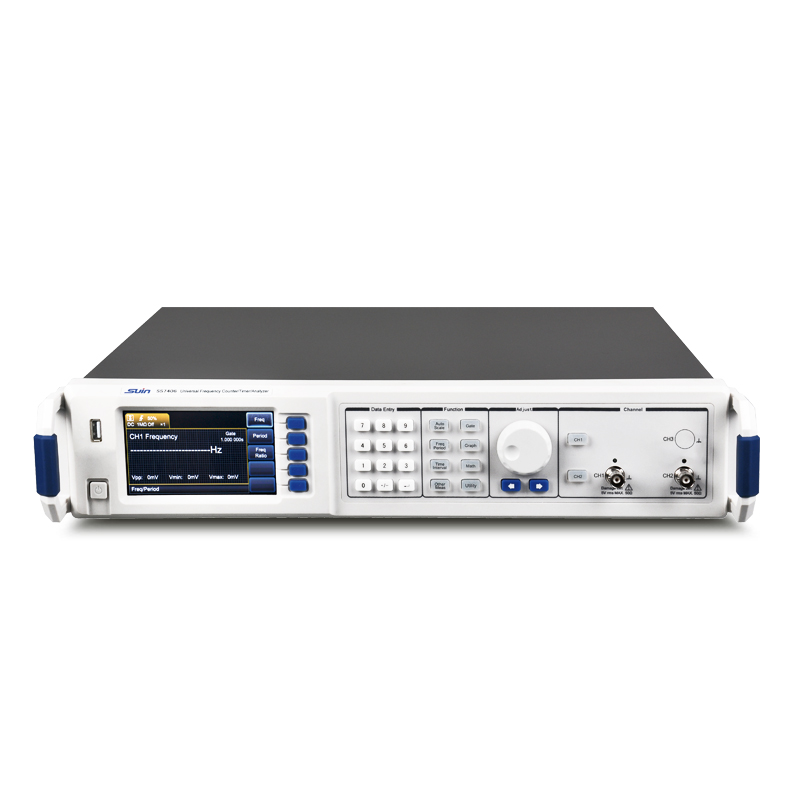

SS7406 Frequency Counter
US $2270.00 - US $2460.00
Production Lead Time:
7-15 day(s)
Shipping Method:
By Courier, Air, Sea, Road, Railway, etc.
Model No.:
SS7406
Brand:
Suin
Description
Contact Supplier
Description
Design Features
- Two 200MHz general-purpose channels
- Typical 25ps single-shot time resolution
- 11 digits/s frequency resolution
- Optional 5×10–10/day high-stability time base
- 4.3' TFT-LCD display to show abundant information
- Firm and sophisticated standard 2U design
- Standard interface of RS-232, GPIB and LAN
Specifications
| Measuring Function | ||
| Frequency Range | Channel 1: 1mHz-200MHz | |
| Channel 2: 1mHz-200MHz | ||
Channel 3: options 3GHz/6.5GHz/12.4GHz/ 16GHz/20GHz/26.5GHz/40GHz | ||
| Measurement Resolution | 11 digits/s | |
| Period | 5ns-1000s | |
| Time Interval Range | 1ns-10000s | |
| Time Resolution | 25ps | |
| Pulse Width | 1ns-10000s | |
| Duty Cycle | 1%-99% | |
| Totalize | 0~1×1013 | |
| Phase Difference | 1°~359° | |
| Input | ||
| Dynamic Range | 50mVrms~1.0Vrms (Sine), 150mVpp~4.5Vpp (Pulse) | |
| Input Impedance | 1MΩ//35pF or 50Ω | |
| Coupling Mode | AC or DC | |
| Input Attenuation | ×1 or ×10 | |
| Trigger Level | -5.000V~+5.000V, min.step 1mV or auto trigger level | |
| Other Functions | ||
| Frequency Ratio | ratio value range:0.00001~999999 | |
| Up/Low Limit | 'Limit'light on shows the result out of range, off shows within range | |
| Statistics Calculation | Multi-average, Max, Min, PPM, SD, Allan Variance | |
| Standard Time Base | ||
| Daily Aging | 1×10-8/day | |
| Yearly Aging | 5×10-7/year | |
| Optional Time Base | ||
| Daily Aging | 5×10-10/day | |
| Yearly Aging | 5×10-8/year | |
| Channel Options | ||
| Frequency Range | Dynamic Range | |
| 3.0GHz | 100MHz~3GHz | A. -27dBm~+19dBm (100MHz~2.6GHz) -15dBm~+19dBm (2.6GHz~3GHz) |
| 100MHz~3GHz | B. -27dBm~+19dBm | |
| 6.5GHz | 200MHz~6.5GHz | -15dBm~+13dBm |
| 12.4GHz | 6.5GHz~12.4GHz | -15dBm~+10dBm |
| 16.0GHz | 6.5GHz~16GHz | -15dBm~+10dBm |
20.0GHz | 200MHz~20GHz | -10dBm~+10dBm (200MHz~350MHz) |
| -15dBm~+10dBm (350MHz~18GHz) | ||
| -10dBm~+10dBm (18GHz~20GHz) | ||
26.5GHz | 10GHz~26.5GHz | -20dBm~+10dBm (10GHz~20GHz) |
| -15dBm~+10dBm (20GHz~24GHz) | ||
| -10dBm~+10dBm (24GHz~26.5GHz) | ||
| 40GHz | 18GHz~40GHz | -29dBm~+15dBm (18GHz~20GHz) |
| -20dBm~+15dBm (20GHz~28GHz) | ||
| -29dBm~+10dBm (28GHz~37GHz) | ||
| -20dBm~+13dBm (37GHz~40GHz) | ||
| Damage Level | +20dBm | |
| General Characteristics | ||

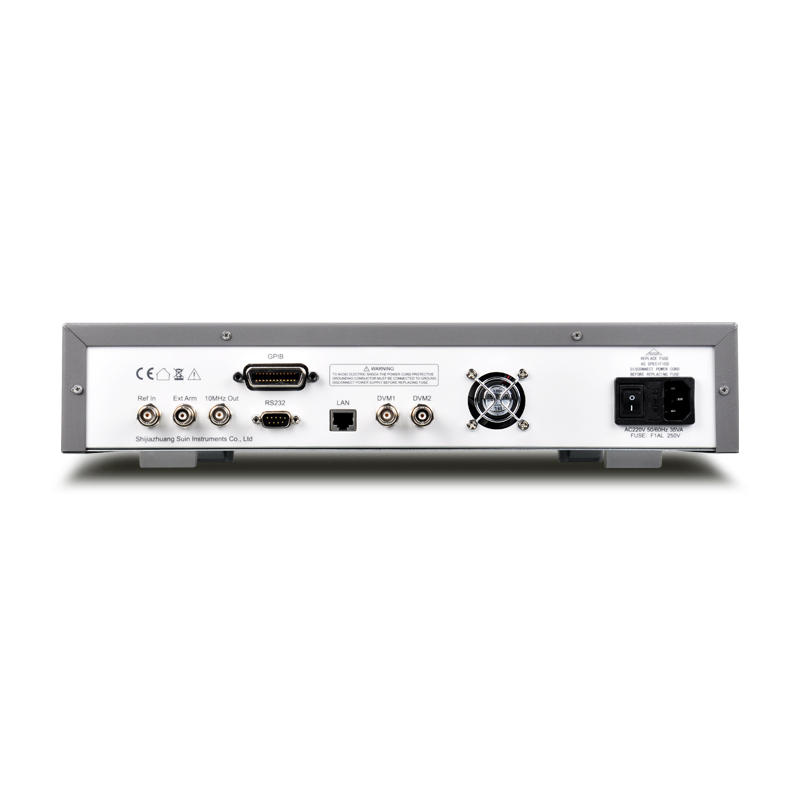

| Interface | RS-232, GPIB, LAN | |
| Power | Standard: AC220V (10%), 50Hz (5%), <70VA | |
| Optional: AC110V (10%), 60Hz (5%), <70VA | ||
| Dimension & Weight | 454×97.5×480mm, 7.3Kg | |
